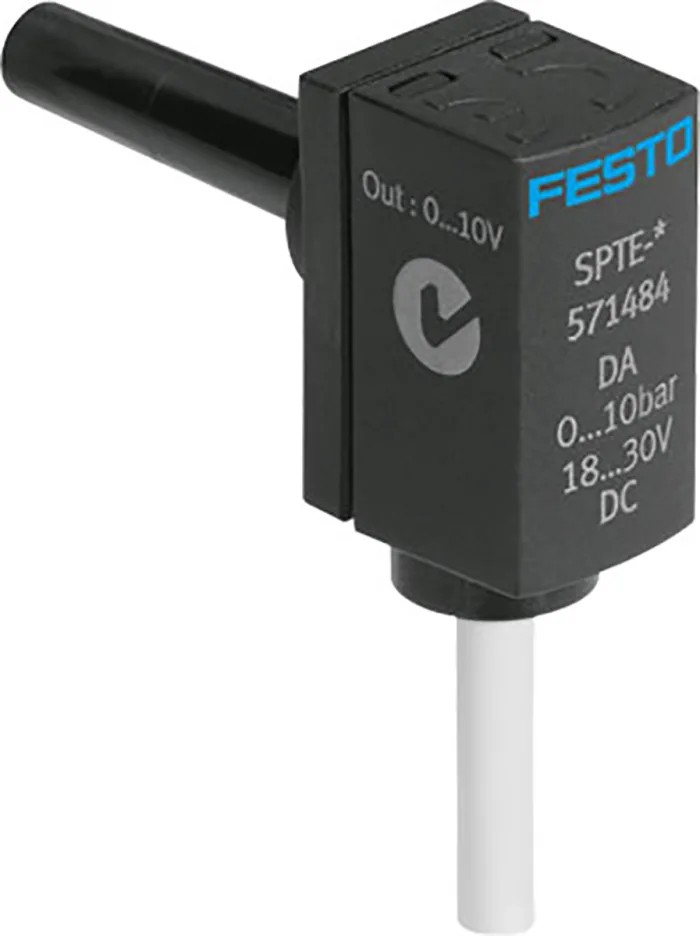

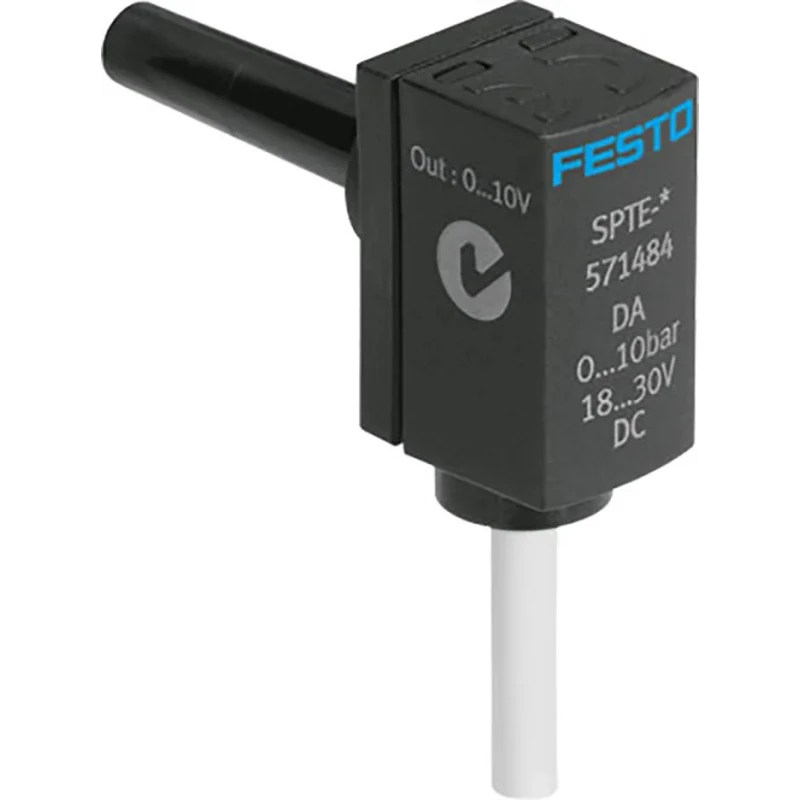

Festo Pressure Sensor Controller, Relative Pressure -1 bar, 30V, IP40, Digital Display
Specifications
| Country of Origin | Thailand |
|---|---|
| Accuracy | 2 % FS |
| Voltage | 30V |
| Brand | Festo |
| Maximum Operating Pressure | -1 bar |
| Height | 31.3mm |
| Model | IP40 |
| Depth | 20.5mm |
| IP Rating | IP40 |
| Width | 9.8mm |
| Series | SPTE |
| Maximum Operating Temperature | 50°C |
| Pressure Type | Relative Pressure |
| Port Type | Pneumatic |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | ISO |
| Connection Thread Standard | Push-in |
| Electrical Connection Type | Plug |
| Minimum Operating Pressure | 0bar |
| Port Gender | Male |
| Suitable Medias | Gas, Compressed Air |
Key Features
- Designed for gas and compressed air media applications.
- Provides accurate pressure readings with 2% full-scale accuracy.
- Features quick switching-point adjustment via touch button.
- Includes LED status indicator for easy operation.
- Operates on 30V DC voltage with push-in pneumatic connections.
- Compact size with dimensions 31.3mm height, 20.5mm depth, 9.8mm width.
- Suitable for network monitoring, vacuum monitoring, and leak tests.
- Reinforced PA housing ensures durability in industrial environments.
Product Description
Festo SPTE-V1R-S4-B-2.5K is a high-performance Pressure Sensor Controller designed for reliable relative pressure measurement in gas and compressed air systems. It features an IP40 rated reinforced PA housing, ensuring protection against solid objects and industrial dust ingress. The controller supports a voltage of 30V DC, with an operating temperature range of 0°C to 50°C, making it suitable for varied pneumatic applications.
This device incorporates a digital display with high-contrast white text on a blue background, providing clear pressure readouts and easy unit selection. Accuracy is maintained within 2% full scale, supporting precise system control. Quick switching-point adjustment is facilitated via a touch button, complemented by an LED switching status indicator for immediate operational feedback.
Festo's SPTE series pressure transmitters are ideal for network monitoring, regulator monitoring, vacuum monitoring, leak testing, and object detection tasks within industrial, manufacturing, and HVAC environments. The push-in 4mm pneumatic connection and 3-core open end cable with 2.5-meter length enable flexible installation.
The compact dimensions (31.3 x 20.5 x 9.8 mm) and male port gender enhance integration into existing pneumatic systems. Electrical connection is via a plug, ensuring secure and straightforward wiring. This model includes compliance with ISO standards and is manufactured in Thailand.
Designed for gas and compressed air media applications. Provides accurate pressure readings with 2% full-scale accuracy. Features quick switching-point adjustment via touch button. Includes LED status indicator for easy operation.
Operates on 30V DC voltage with push-in pneumatic connections. Compact size with dimensions 31.3mm height, 20.5mm depth, 9.8mm width. Suitable for network monitoring, vacuum monitoring, and leak tests. Reinforced PA housing ensures durability in industrial environments.
Operating temperature range from 0°C to 50°C. Comes with male port gender and plug electrical connection.
This product is perfect for industrial pneumatic control systems requiring accurate and reliable pressure sensing for optimized process control. Explore related pneumatic sensor options and more precision measurement devices in the EnvMart electronics and industrial tools categories.
Explore more products in our Pneumatic Pressure Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Festo Pressure Sensor Controller provides an accuracy of 2% full scale.
This model has a maximum operating pressure of -1 bar.
It is suitable for gas and compressed air media applications.
The operating temperature range is from 0°C to 50°C.
The dimensions are 31.3mm in height, 20.5mm in depth, and 9.8mm in width.
The electrical connection is via a plug type, ensuring secure and straightforward wiring.
It performs relative pressure measurement.
It includes a digital display, quick switching-point adjustment via a touch button, and an LED status indicator for easy operation.
The port type is pneumatic, and the port gender is male.
This model complies with ISO standards.
It operates on a voltage of 30V DC.
It is suitable for network monitoring, vacuum monitoring, leak testing, and object detection tasks.
