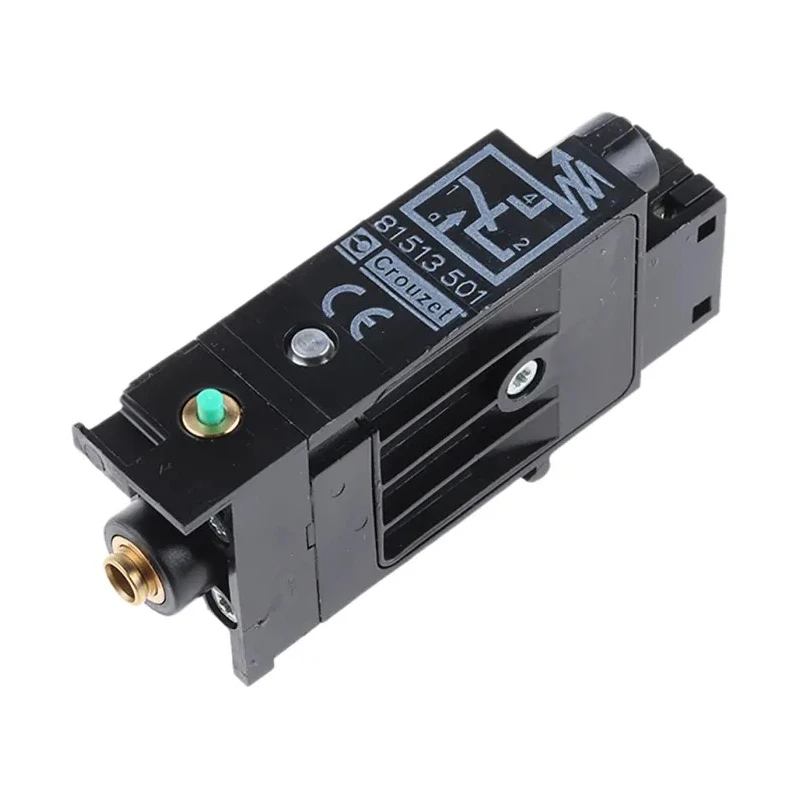

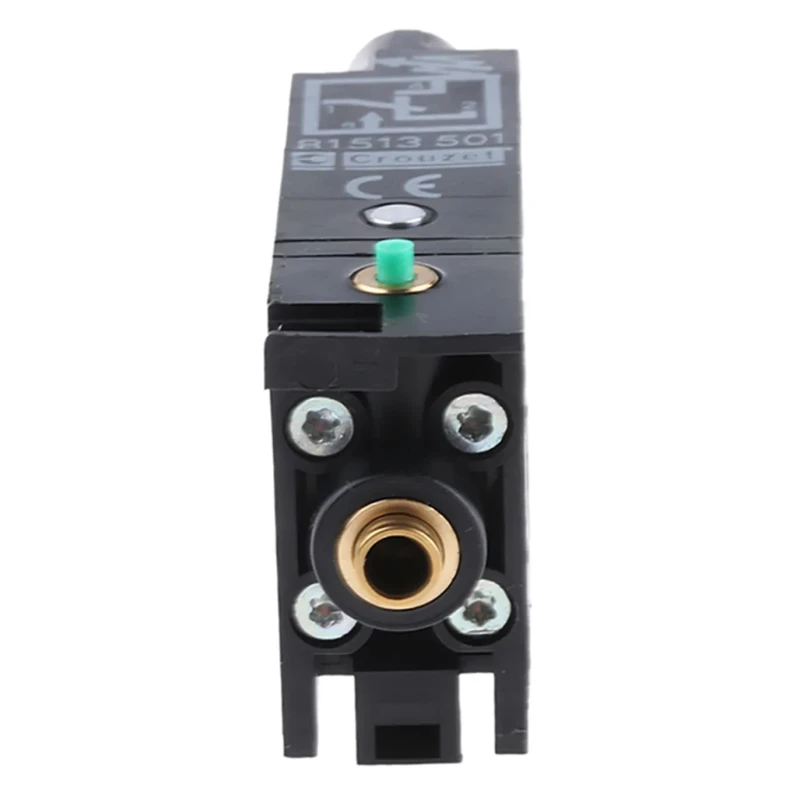

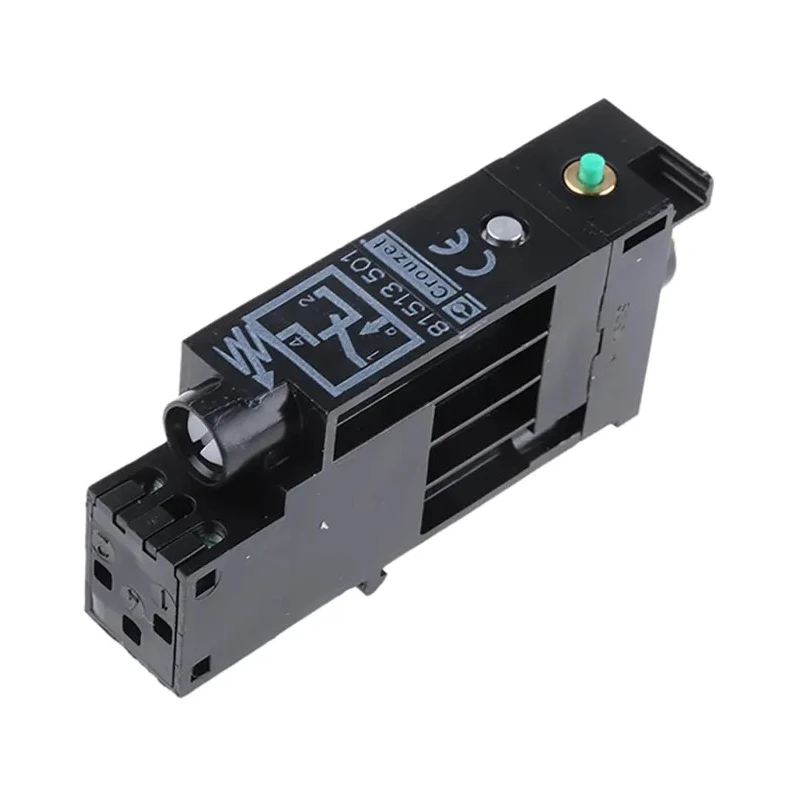

Crouzet Pneumatic Pressure Sensor, IP20, 1.2 Bar Maximum Pressure, 230V, 70°C Max Operating Temperature IP20

Crouzet IP20 pneumatic pressure sensor (model IP20) is engineered for precise pressure monitoring in liquid and air media, operating at 230V with a maximum operating temperature of 70°C and a maximum pressure limit of 1.2 bar. It is ideal for industrial pneumatic and hydraulic applications requiring reliable vacuum and low pressure sensing.

This sensor features an adjustable switch point with a pressure range from -0.3 to 8 bar and a switch output rating of 5A at 220/230 V, suitable for integration with programmable controllers. The IP20 ingress protection ensures functionality in indoor environments against solid objects larger than 12.5mm.

The sensor includes a DIN rail mount type for streamlined installation and accepts connection via push-in connectors for semi-rigid tubing compliant with Nfe 49100 and tapped BSP female ports with 4 mm size. Its compact size of 17.5mm width and 32mm height facilitates fitting in tight spaces.

This sensor is primarily used in pneumatic control systems for fluid power applications, manufacturing, automation, and HVAC systems requiring dependable pressure switching and monitoring.

Suitable for vacuum and low-pressure sensing in liquid and air. Adjustable switch points configurable over a wide pressure range. Compatible with standard DIN rail mounting systems. Robust electrical connection options including push-in and BSP connectors.

Compact, lightweight design optimized for industrial installations. Certified for safety and performance though specific standards are not listed. High reliability under typical operating temperatures from -10°C to 70°C.

Efficient low power consumption with high output pressure range. Explore more products in the Pneumatic Pressure Sensors category at EnvMart.
