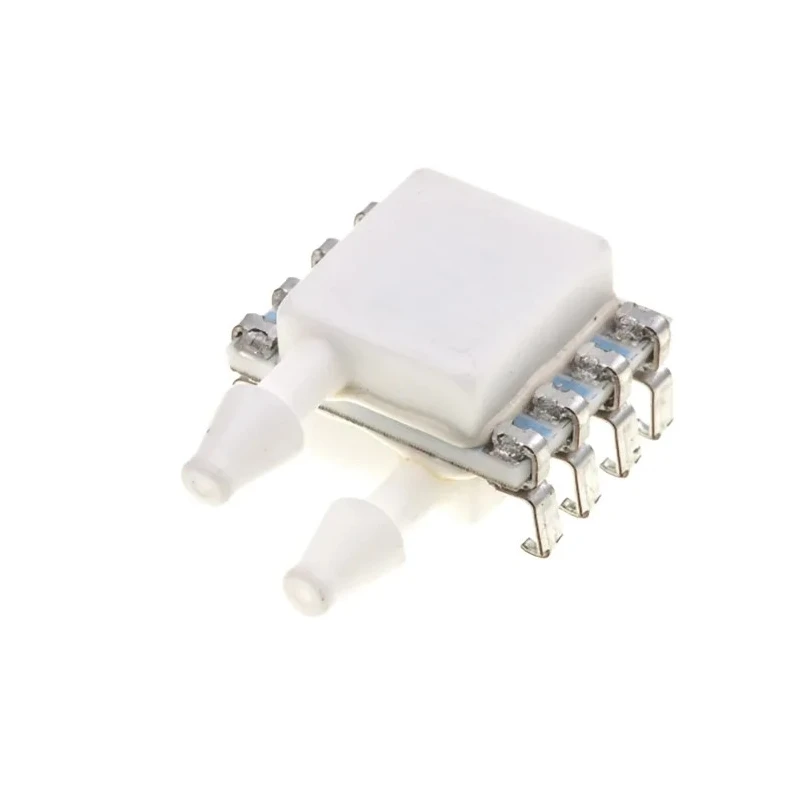

TE Connectivity MS4525DO Pneumatic Pressure Sensor 150 psi Max Operating Pressure 300 psi Breaking 4525DO-TP3AJ030APF
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Maximum Operating Pressure | 150 psi |
| Response time | 0.5ms |
| Model | 4525DO-TP3AJ030APF |
| Series | MS4525DO |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -25°C |
| Inlet Connection Size | 1/8 in |
| Standards/Approvals | RoHS |
| Minimum Operating Pressure | 1psi |
| Outlet Tube Size | 0.09in |
| Breaking Pressure | 300psi |
Key Features
- Compact ceramic-based PCB mounted pressure transducer for pneumatic applications.
- Features proprietary UltraStable™ process with CMOS sensor conditioning circuitry.
- Digital output with 14-bit pressure and 11-bit temperature resolution.
- Supports operating temperatures from -25°C to 105°C.
- Minimum operating pressure of 1 psi and fast response time of 0.5 ms.
- Includes barbed pressure ports with 0.09 inch outlet tube size and 1/8 inch inlet connection.
- Compliant with RoHS standards for environmental safety.
Product Description
TE Connectivity 4525DO-TP3AJ030APF pneumatic pressure sensor is a small, ceramic-based PCB mounted transducer engineered for accurate pneumatic pressure measurement with digital output capabilities. It features a maximum operating pressure of 150 psi and a breaking pressure up to 300 psi, suitable for rigorous industrial and fluid power applications.
The sensor utilizes TE Connectivity's proprietary UltraStable™ process alongside advanced CMOS sensor conditioning to deliver stable and reliable 14-bit pressure and 11-bit temperature digital signals. Its robust design includes barbed pressure ports compatible with 0.09 inch outlet tube and 1/8 inch inlet connections, ensuring easy integration into existing pneumatic systems.
Operating temperature range from -25°C to 105°C allows deployment across diverse environments, with a minimum operating pressure of 1 psi and rapid 0.5 ms response time for precise real-time measurements. This RoHS-compliant sensor is ideal for OEMs requiring high performance, durability, and digital functionality in pneumatic pressure sensing applications.
Compact ceramic-based design for PCB mounting. UltraStable™ technology with CMOS sensor conditioning circuit. 14-bit pressure and 11-bit temperature digital output. Maximum operating pressure of 150 psi and breaking pressure of 300 psi.
Operating temperature range: -25°C to 105°C. Fast response time of 0.5 ms for dynamic pressure monitoring. Barbed ports with 0.09 inch outlet and 1/8 inch inlet connections. Meets RoHS environmental standards. It combines high accuracy, digital interface, and robust operating conditions for reliable pneumatic pressure sensing needs.
Explore further pneumatic sensors and pressure measurement solutions in the Industrial Tools & Equipment category at EnvMart.
Explore more products in our Pneumatic Pressure Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 150 psi.
This unit has a fast response time of 0.5 milliseconds, allowing for dynamic pressure monitoring.
The operating temperature range for this model is from -25°C to 105°C.
The minimum operating pressure for this pneumatic pressure sensor is 1 psi.
It provides digital output with 14-bit pressure resolution and 11-bit temperature resolution.
The inlet connection size is 1/8 inch, and the outlet tube size is 0.09 inch.
Yes, it is compliant with RoHS standards for environmental safety.
This model is designed for PCB mounting, making it compact and easy to integrate into systems.
The breaking pressure for this sensor is up to 300 psi.
It utilizes TE Connectivity's proprietary UltraStable™ process along with CMOS sensor conditioning circuitry.
This model is engineered for accurate pneumatic pressure measurement in rigorous industrial and fluid power applications.
The country of origin for this sensor is China.
