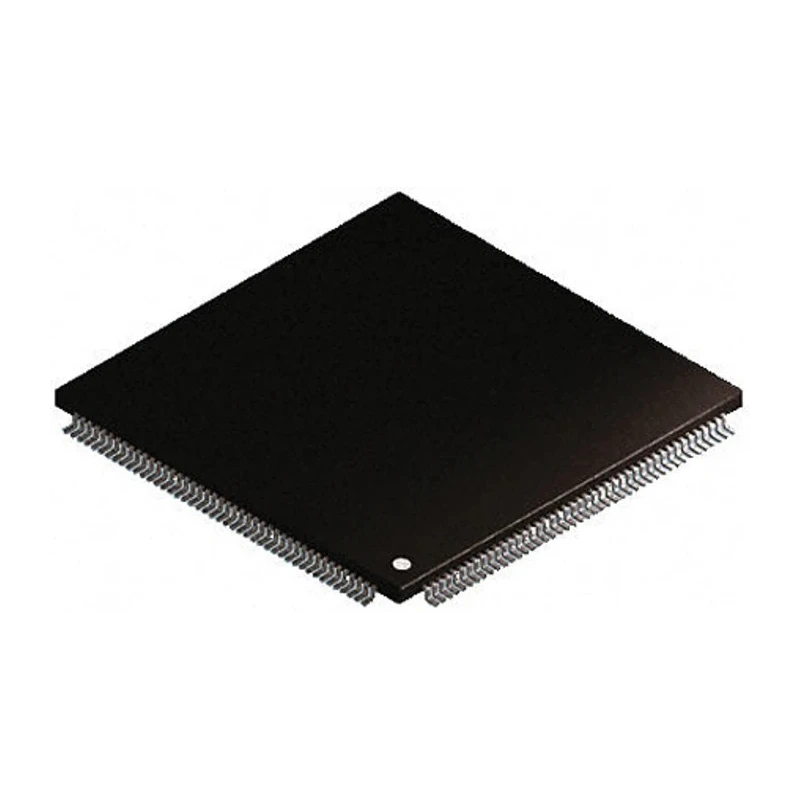

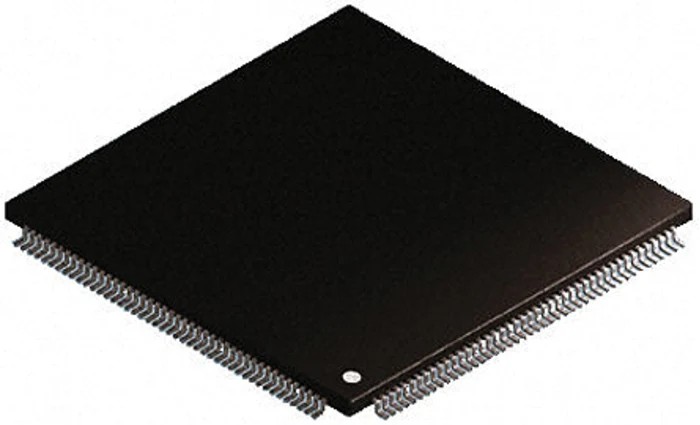

STMicroelectronics 32 bit ARM Cortex M7 Microcontroller 216 MHz 1024kB FLASH OTP 176-Pin LQFP STM32F746IGT6
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 24.1mm |
| Model | STM32F746IGT6 |
| Width | 24.1mm |
| Mount Type | Surface |
| Series | STM32F746IG |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 340kB |
| Pin Count | 176 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 526mW |
| Minimum Supply Voltage | 1.7V |
| Device Core | ARM Cortex M7 |
| Program Memory Size | 1024kB |
| Maximum Clock Frequency | 216MHz |
| Number of Programmable I/Os | 168 |
| Number of Timers | 15 |
| Instruction Set Architecture | RISC |
| ADCs | 24 x 12 Bit |
| Program Memory Type | FLASH, OTP |
| DACs | 2 x 12 Bit |
Key Features
- Built on ARM Cortex M7 32-bit RISC architecture.
- Operates at a maximum clock frequency of 216 MHz.
- Features 1024kB of FLASH program memory and 340kB RAM.
- Equipped with 2 x 12 Bit DACs and 24 x 12 Bit ADCs for analog functions.
- Comes in a 176-pin LQFP surface mount package.
- Designed for operation in temperature ranges from -40°C to 85°C.
- Supports 168 programmable I/Os and 15 timers for flexible peripheral control.
- Offers program memory of type FLASH and OTP (One-Time Programmable).
Product Description
STMicroelectronics STM32F746IGT6 32 bit ARM Cortex M7 Microcontroller operates at 216 MHz and features 1024kB FLASH memory and OTP technology, packaged in a 176-Pin LQFP surface mount device. This microcontroller is built on ST’s STM32F7 series, offering high-performance 32-bit RISC core for demanding embedded applications.
The ARM Cortex-M7 core architecture delivers a maximum clock frequency of 216 MHz, supported by ST’s ART Accelerator and L1 cache. The device integrates 1024kB of program memory with FLASH and OTP types, alongside 340kB RAM to ensure fast and efficient data processing. It also includes 2 x 12 Bit Digital-to-Analog Converters and 24 x 12 Bit Analog-to-Digital Converters for various analog interfacing needs.
This microcontroller supports up to 168 programmable I/O pins and 15 hardware timers, enabling diverse peripheral interfacing and control. It functions over a wide supply voltage range with a minimum of 1.7V and maximum of 3.6V, and can operate under extreme temperature conditions from -40°C to 85°C, making it suitable for industrial, automotive, and commercial embedded systems.
The compact LQFP package measures 24.1 mm by 24.1 mm with a height of 1.45 mm, ensuring easy integration into space-constrained designs. The STM32F7 series is notable for its instruction set architecture based on RISC principles and high computational efficiency with a typical performance of 1082 CoreMark at 216 MHz.
Core architecture: ARM Cortex M7 32-bit RISC. Program memory size: 1024kB FLASH, OTP. Maximum clock frequency: 216 MHz. RAM size: 340kB. Analog features: 2 x 12 Bit DACs and 24 x 12 Bit ADCs. Package: 176-Pin LQFP surface mount.
Operating temperature range: -40°C to 85°C. Number of programmable I/Os: 168. Number of timers: 15. Power dissipation: 526 mW maximum.
This microcontroller is ideal for applications in embedded systems, industrial controllers, automotive electronics, and other high-performance computing scenarios requiring efficient processing, advanced peripheral interfaces, and compact footprint packaging.
Explore more STM32F7 series microcontrollers and components in the EnvMart Microcontroller category to find products tailored to your specific industrial and electronic project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STM32F746IGT6 microcontroller operates at a maximum clock frequency of 216 MHz.
It features 1024kB of program memory with FLASH and OTP (One-Time Programmable) types.
This model supports up to 168 programmable I/O pins.
The operating temperature range for this microcontroller is from -40°C to 85°C.
The LQFP package measures 24.1 mm in length and width, with a height of 1.45 mm.
The STM32F746IGT6 includes 15 hardware timers for peripheral control.
It is equipped with 2 x 12 Bit Digital-to-Analog Converters (DACs) and 24 x 12 Bit Analog-to-Digital Converters (ADCs).
This microcontroller has a RAM size of 340kB.
The maximum power dissipation for the STM32F746IGT6 is 526 mW.
The minimum supply voltage is 1.7V, and the maximum supply voltage is 3.6V.
It is built on the ARM Cortex M7 32-bit RISC architecture.
The STM32F746IGT6 microcontroller is manufactured in India.
