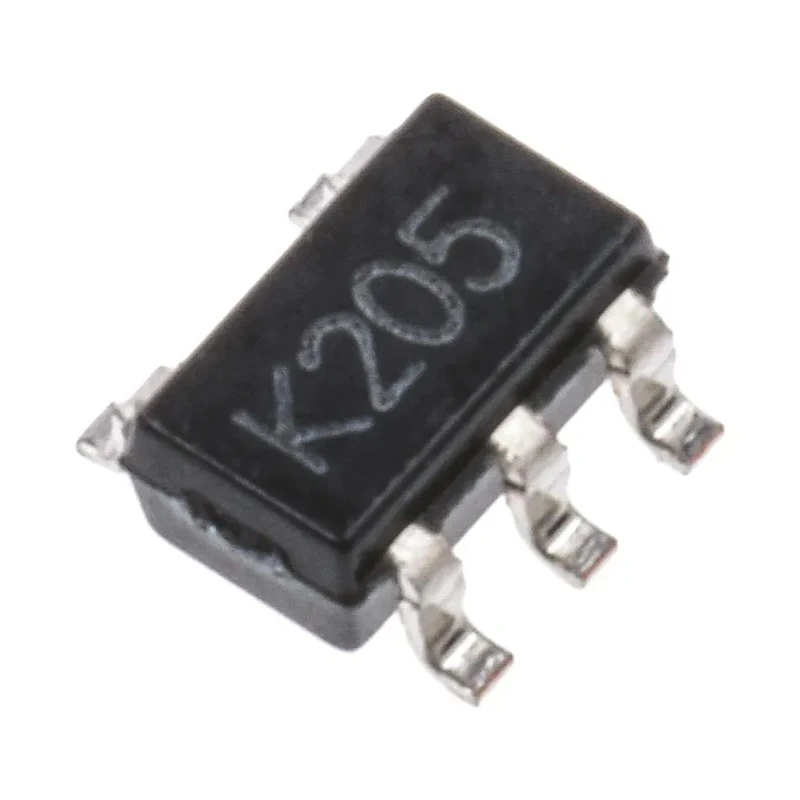

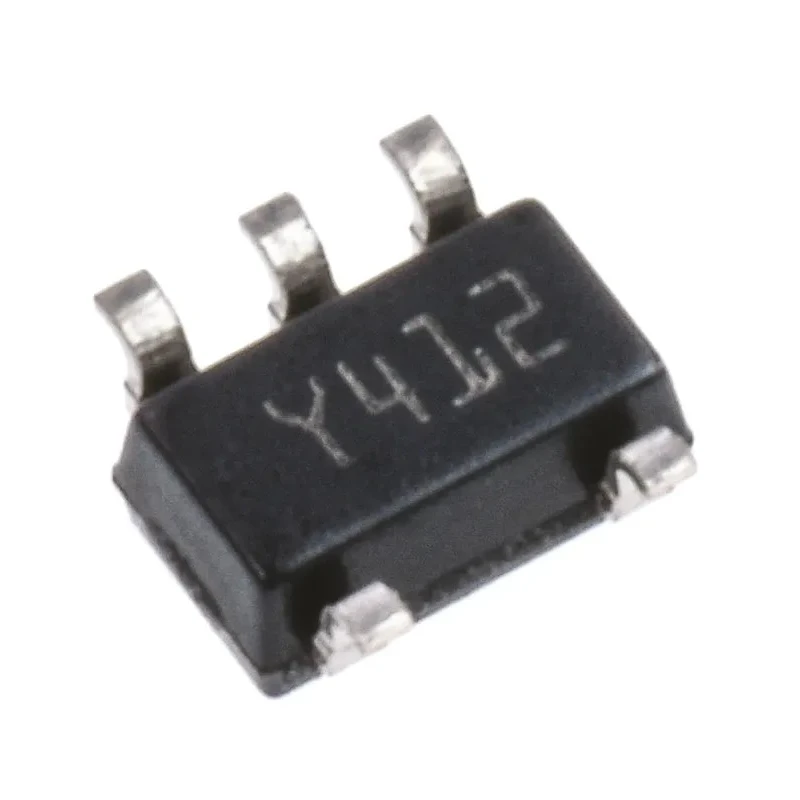

STMicroelectronics Operational Amplifier 100 kHz 5-Pin SOT-23 12V TS931ILT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.3mm |
| Length | 3mm |
| Model | TS931ILT |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | TS931 |
| Output Current | 5mA |
| Maximum Operating Temperature | 105°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Power Supply Voltage | 2.7 V to 10 V |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 12V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 100kHz |
| Input Bias Current | 300 pA |
| Vos - Input Offset Voltage | 15 mV |
| Slew Rate | 0.05V/μs |
| Input Offset Current | 200 pA |
Key Features
- Single channel operational amplifier for precise signal amplification.
- Surface mount SOT-23 package with compact dimensions.
- Wide supply voltage range from 3V to 12V.
- Low input bias current of 300 pA and input offset current of 200 pA.
- Input offset voltage of 15 mV and slew rate of 0.05 V/µs.
- Output current capacity of 5 mA suitable for low-power applications.
- Operating temperature range from -40°C to 105°C for reliability.
- Complies with automotive standard AEC-Q100 and RoHS directives.
Product Description
STMicroelectronics TS931ILT is a high-performance single channel operational amplifier with a gain bandwidth product of 100 kHz, housed in a compact 5-pin SOT-23 surface mount package measuring 3 mm in length, 1.75 mm in width, and 1.3 mm in height. It supports a power supply voltage ranging from 2.7 V minimum to a maximum of 12 V, suitable for low-voltage and standard voltage applications.
This operational amplifier offers low input bias current of 300 pA and input offset current of 200 pA, paired with an input offset voltage of 15 mV and a slew rate of 0.05 V/µs. It provides an output current of up to 5 mA, enabling it to drive loads effectively while maintaining micro-power consumption typically around 20 µA, which is advantageous for battery-powered and energy-sensitive designs.
The TS931ILT can operate within a temperature range of -40°C to 105°C, making it reliable for extended industrial and automotive use cases. It complies with automotive standard AEC-Q100 and is RoHS certified, ensuring environmental compliance and robust performance standards.
The device features rail-to-rail output voltage swing, enabling it to produce output voltages close to the supply rails for better signal fidelity. This makes it ideal for applications requiring precise signal amplification and low noise performance.
Typical applications include industrial automation, electronic instrumentation, signal conditioning, and automotive electronics where size, power efficiency, and performance are critical.
Single channel operational amplifier. 5-Pin SOT-23 surface mount package. Gain bandwidth product of 100 kHz. Operating voltage range from 2.7 V to 12 V. Low bias currents and offset voltages. Output current up to 5 mA. Wide operating temperature range (-40°C to 105°C).
RoHS compliant and AEC-Q100 automotive standard. Micro-power consumption approximately 20 µA. Rail-to-rail output voltage swing. Explore more Operational Amplifiers and electronic components in the Semiconductor category at EnvMart to find solutions tailored to your design and industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 100 kHz.
It supports a power supply voltage ranging from 2.7 V to a maximum of 12 V.
The TS931ILT can provide an output current of up to 5 mA.
This model has dimensions of 3 mm in length, 1.75 mm in width, and 1.3 mm in height.
The operational amplifier has a low input bias current of 300 pA.
The input offset voltage of the TS931ILT is 15 mV.
It operates within a temperature range of -40°C to 105°C.
This operational amplifier complies with the automotive standard AEC-Q100 and is RoHS certified.
The slew rate for this operational amplifier is 0.05 V/µs.
It is housed in a compact 5-pin SOT-23 surface mount package.
Typical applications include industrial automation, electronic instrumentation, signal conditioning, and automotive electronics.
It features a rail-to-rail output voltage swing, allowing it to produce output voltages close to the supply rails.
