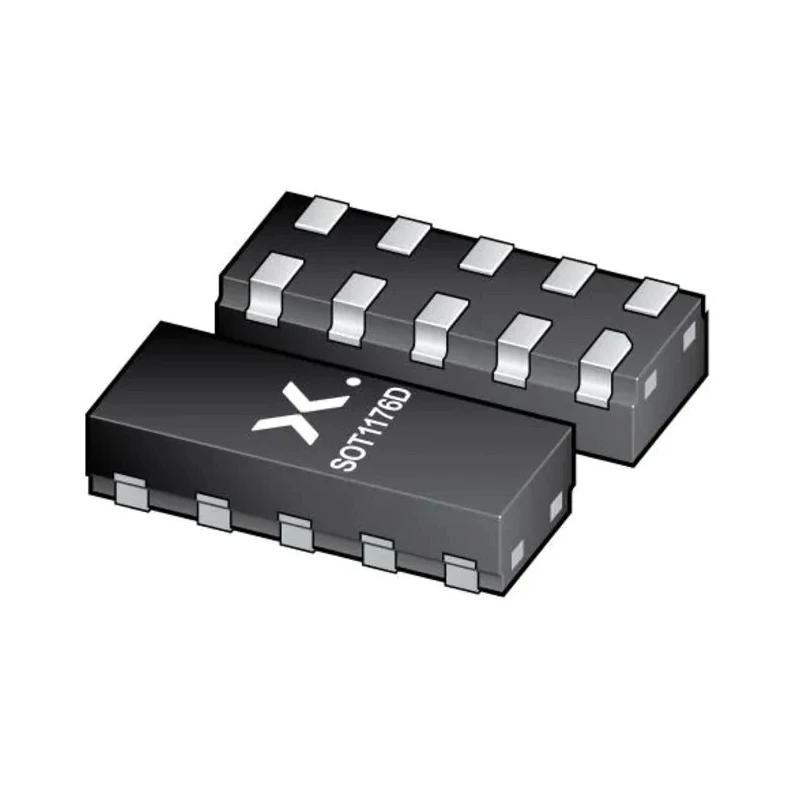

Nexperia Bi-Directional ESD Protection Device, 10-Pin DFN2510D PESD4USB3B-TBSX

Nexperia PESD4USB3B-TBSX Bi-Directional ESD Protection Device in a 10-Pin DFN2510D package offers advanced electrostatic discharge defense for high-speed data interfaces operating at voltages up to 6 V. Designed primarily for protecting Super Speed USB 3.2 at 10 Gbps, HDMI 2.0, DisplayPort, eSATA, LVDS, and GMSL SerDes interfaces, this device ensures circuit reliability in automotive, infotainment, and other electronics sectors.

The device features an extremely low line capacitance of approximately 0.5 pF per channel, minimizing signal interference. It supports an ESD protection level up to ±15 kV and a maximum peak pulse current of 7 A, enabling robust safeguarding against electrostatic pulses.

It is compliant with relevant international standards including ISO 10605 and IEC 61000-4-2 Level 4, and meets the automotive grade AEC-Q101 specification. The compact DFN2510D surface mount package with side-wettable flanks facilitates automated assembly and optical inspection.

This bidirectional device operates efficiently within a temperature range from -55°C to 150°C, making it suitable for harsh automotive environments and manufacturing conditions. The device’s design supports pass-through signal routing and matched trace spacing to simplify PCB layout and improve reliability.

High-speed interface protection for USB 3.2, HDMI 2.0, and LVDS applications. Compact DFN2510D 10-pin surface mount package. Low line capacitance of 0.5 pF per channel reduces signal distortion. ESD protection up to ±15 kV enhances device robustness.

Compliance with automotive and IEC ESD standards ensures reliability. Wide operating temperature range suitable for automotive use cases. Matched trace spacing and side-wettable flanks enable efficient PCB assembly.

This product is suitable for use in industrial, automotive, telecommunications, and consumer electronics fields. It is ideal for designers seeking reliable ESD protection in high-speed data communication devices.
