Nexperia Voltage Level Translator Dual Supply Bi-Directional CMOS Logic 8 Elements 2-Pin XSON8 NXS0102GTX

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Voltage Level Translator Dual Supply Bi-Directional CMOS Logic 8 Elements 2-Pin XSON8 NXS0102GTX

Name: Nexperia Voltage Level Translator Dual Supply Bi-Directional CMOS Logic 8 Elements 2-Pin XSON8 NXS0102GTX
Brand: Nexperia
SKU: 178791
Price: 0.47 USD
Availability: InStock



Category Voltage Level Shifter Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.05mm
Length	2mm
Model	NXS0102GTX
Width	500μm
Mount Type	Surface
Output type	CMOS
Series	NXS0102
Maximum Operating Temperature	125°C
Package Type	XSON8
Minimum Operating Temperature	-40°C
Standards/Approvals	IEC61000-4-2, RoHS
Pin Count	2
Number of Elements per Chip	8
Maximum Supply Voltage	3.6V
Logic Family	CMOS
Logic Function	Voltage Translation
Minimum Supply Voltage	1.2V
Direction Type	Bi-Directional
Maximum Low Level Output Current	50mA

Key Features

This translator supports voltage translation with supply voltage ranges from 1.2V minimum up to 3.6V maximum on VCC(A) side.
VCC(B) side operates between 2.3V and 5.5V, enabling flexible voltage node compatibility such as 1.8V, 2.5V, 3.3V, and 5.0V.
It is designed with auto-direction sensing for seamless bidirectional translation.
The IC operates over a temperature range from -40°C to 125°C and has a compact XSON8 surface-mount package measuring 2mm by 0.5mm by 1.05mm height.
Outputs have a maximum low level output current of 50mA and include IOFF circuitry for partial power-down applications safeguarding against damaging backflow currents.
Pin OE controls output enable, where a LOW level sets outputs to high-impedance state.
Complies with IEC61000-4-2 ESD protection standards and RoHS directives.

Product Description

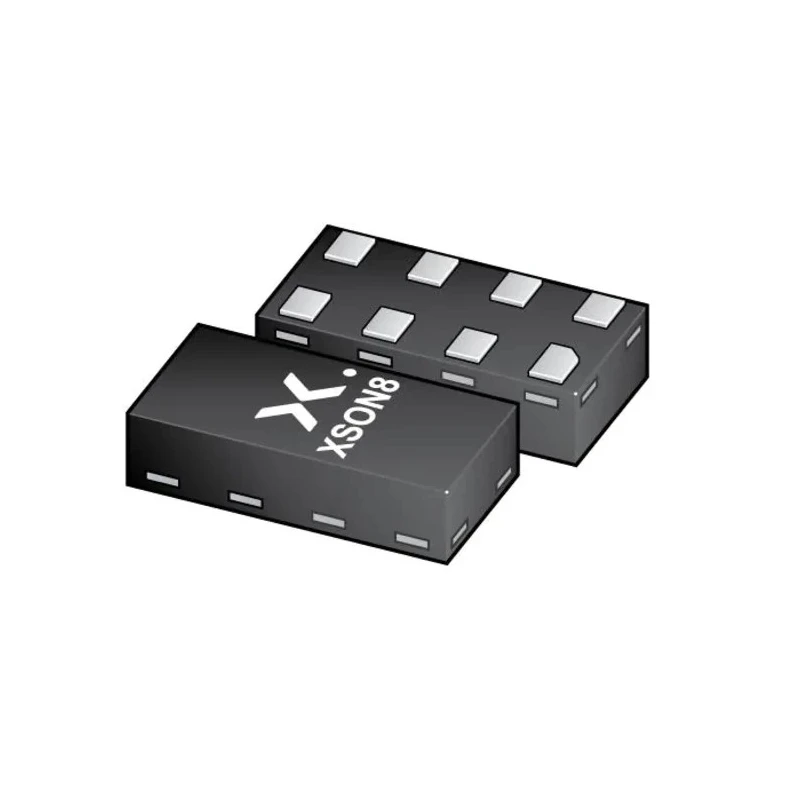

Nexperia NXS0102GTX voltage level translator provides reliable voltage translation using a dual supply, CMOS logic family, and bi-directional functionality. This device integrates eight elements per chip with two pins in an XSON8 surface mount package.

The translator supports wide supply voltages; VCC(A) from 1.65V up to 3.6V and VCC(B) from 2.3V to 5.5V, allowing smooth translation among popular voltage nodes like 1.8V, 2.5V, 3.3V, and 5.0V commonly used in industrial, consumer electronics, and communications applications.

Auto direction sensing facilitates flexible bi-directional voltage translation without extra control circuitry. The outputs are protected from backflow current during power down thanks to IOFF circuitry. Output enable pin (OE) actively drives outputs into a high-impedance state when LOW, enabling easy bus control and system power management.

Operating temperature range from -40°C to 125°C ensures its robustness for industrial environments. The compact XSON8 small outline no-lead package measures 2mm in length, 0.5mm in width, and 1.05mm in height, supporting high density PCB layouts.

It has a maximum low-level output current of 50mA and meets IEC61000-4-2 ESD standards and RoHS compliance, suitable for use in various electronics sub-systems including desktop PCs, smartphones, tablets, and other communication devices.

Dual supply voltage level translation with wide range compatibility. Auto-direction sensing for seamless bidirectional signal translation. High performance CMOS logic family for low power and high speed. Compact XSON8 surface-mount package for space-saving designs.

EO pin enables outputs HIGH impedance for power management. Industrial temperature range support for harsh environments. ESD protection to IEC61000-4-2 and RoHS compliant.

This level translator is ideal for industrial and electronics applications that require flexible, efficient voltage interface between differing logic levels. Explore Nexperia's full range of voltage level translators and semiconductor solutions at EnvMart.

Explore more products in our Voltage Level Shifter category.
