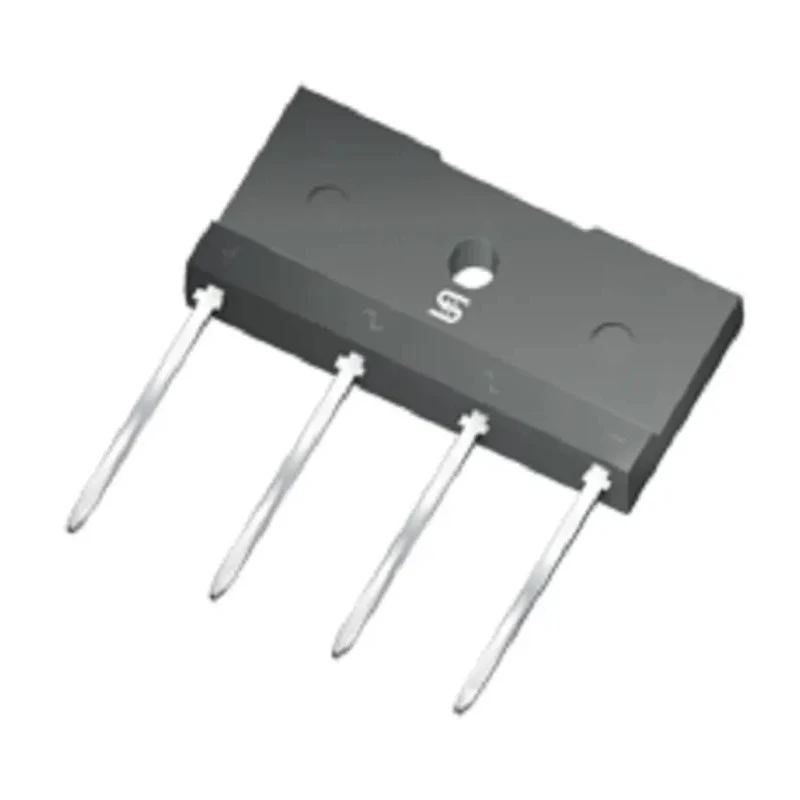

Taiwan Semiconductor Bridge Rectifier 1000 V 144 A 4-Pin Quad Through Hole TS-6PL T10JA07G-K

Name: Taiwan Semiconductor Bridge Rectifier 1000 V 144 A 4-Pin Quad Through Hole TS-6PL T10JA07G-K
Brand: Taiwan Semiconductor
SKU: 178255
Price: 0.96 USD
Availability: InStock



Category Bridge Rectifier Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Height	30mm
Length	29.3mm
Model	T10JA07G-K
Mount Type	Through Hole
Configuration	Quad
Maximum Operating Temperature	150°C
Package Type	TS-6PL
Minimum Operating Temperature	-55°C
Number of Phases	1
Standards/Approvals	RoHS, IEC 61249-2-21, UL
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	1000V
Peak Reverse Current Ir	0μA
Peak Non-Repetitive Forward Surge Current Ifsm	144A
Forward Current If	10A
Peak Forward Voltage Vf	1.1V

Key Features

Features a glass passivated chip junction for stability and reliability.
Ideal for printed circuit board mounting with through hole TS-6PL package.
Supports high surge current capability with peak non-repetitive forward surge current of 144 A.
Operates within a temperature range from -55°C to 150°C.
Offers low forward voltage drop with peak forward voltage of 1.1 V.
Boasts zero peak reverse current leakage for efficient performance.
Complies with RoHS, IEC 61249-2-21, and UL standards ensuring safety and environmental standards.
UL recognized with file number E-326243 and halogen-free construction.

Product Description

Taiwan Semiconductor T10JA07G-K Bridge Rectifier 1000 V 144 A 4-Pin Quad is a discrete semiconductor designed for rectification in electronic circuits that require reliable high-current performance. This component features a TS-6PL through-hole package and a quad configuration suitable for various power rectifying needs.

The device provides a peak reverse repetitive voltage (Vrrm) of 1000 V and a continuous forward current (If) of 10 A, making it well-suited for industrial power supplies, switching mode power supplies (SMPS), adapters, and electronic lighting systems. Its peak non-repetitive forward surge current (Ifsm) of 144 A handles large transient spikes efficiently.

Designed with a glass passivated chip junction, the bridge rectifier ensures durability and stability across a wide temperature range from -55°C to 150°C. Additionally, its low peak forward voltage (Vf) of 1.1 V contributes to energy efficiency and reduced heat dissipation during operation.

The device is fully compliant with international standards including RoHS for environmental safety, IEC 61249-2-21 for halogen-free materials, and UL certification (File # E-326243), assuring quality and regulatory compliance.

This bridge rectifier’s compact form with dimensions of approximately 29.3 mm length and 30 mm height enables easy integration into PCB assemblies through its 4-pin mounting system. The zero peak reverse current leakage ensures minimal power loss, making it ideal for sensitive electronic components.

Features a glass passivated chip junction for enhanced reliability. Enables high surge current handling with peak 144 A rating. Designed for through-hole mounting in TS-6PL package. Operates safely from -55°C to 150°C temperature range.

Low forward voltage drop of 1.1 V enhances efficiency. Fully RoHS compliant and halogen-free under IEC 61249-2-21 standards. UL recognized with certification file E-326243. Perfect for use in SMPS, adapters, and lighting applications.
