Taiwan Semiconductor Bridge Rectifier 1000 V 200 A 4-Pin Single Through Hole KBU807G

Free Delivery in India | Lowest Global Shipping Charges

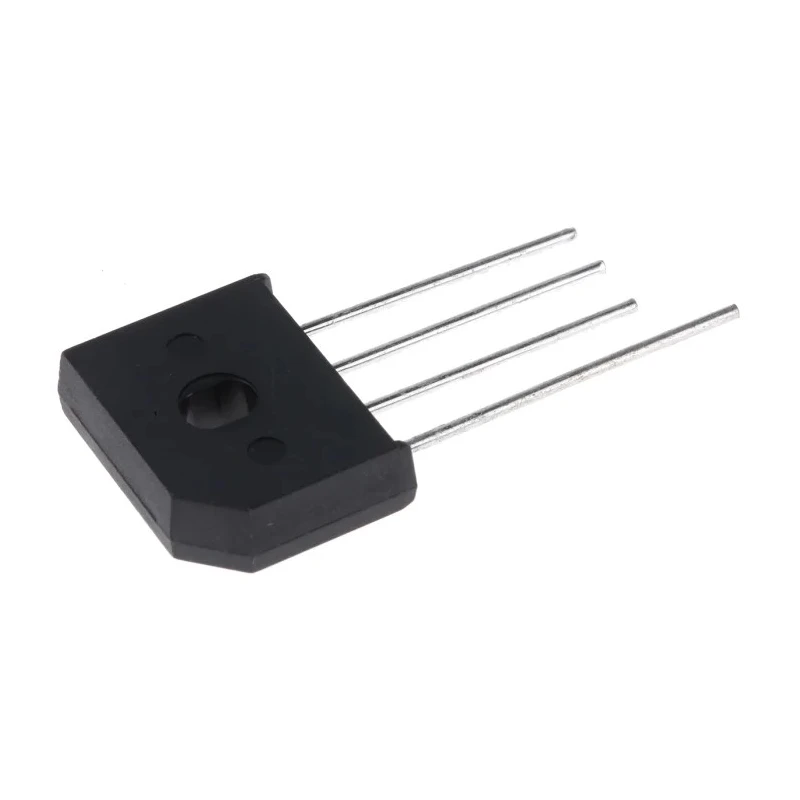

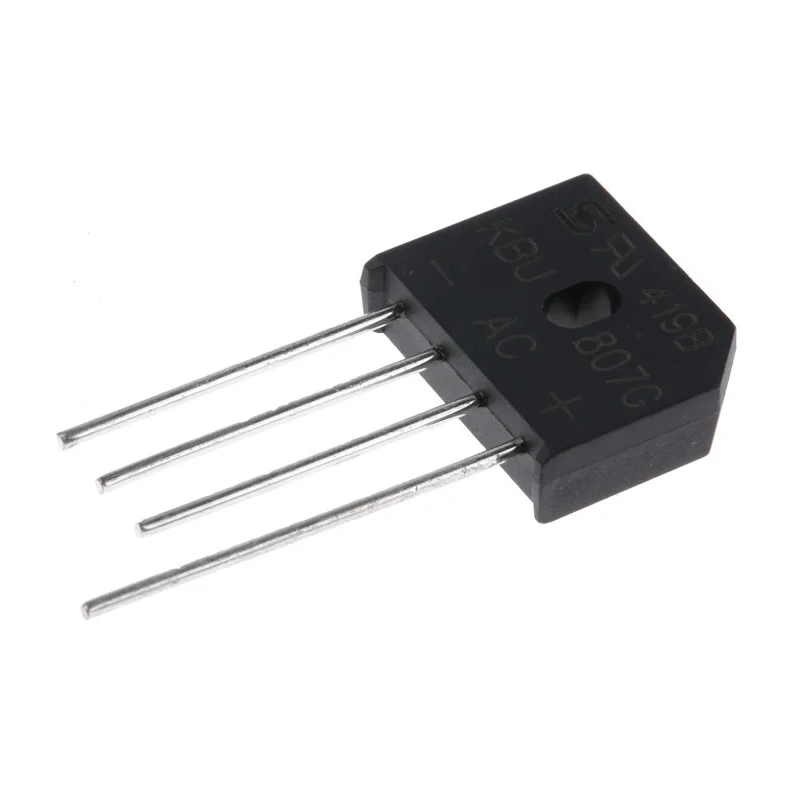

Taiwan Semiconductor Bridge Rectifier 1000 V 200 A 4-Pin Single Through Hole KBU807G

Name: Taiwan Semiconductor Bridge Rectifier 1000 V 200 A 4-Pin Single Through Hole KBU807G
Brand: Taiwan Semiconductor
SKU: 211942
Price: 1.65 USD
Availability: InStock



Category Bridge Rectifier Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Height	19.3mm
Length	23.7mm
Model	KBU807G
Width	7.1mm
Mount Type	Through Hole
Series	KBU8
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	KBU
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	1000V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	200A
Forward Current If	8A
Peak Forward Voltage Vf	1V
Taiwan Semiconductor Bridge Rectifier, 8A, 1000V, 4-PinBrand	Taiwan Semiconductor
Taiwan Semiconductor Bridge Rectifier, 1000 V 175 A, 4-Pin SingleBrand	Taiwan Semiconductor

Key Features

Complies with glass passivated junction for enhanced durability.
Designed for SIL PCB mounting with wire lead structure.
Capable of operating between -55°C and 150°C.
Features a peak forward voltage of 1 V and minimal reverse current of 5 μA.
Suitable for converting AC to DC in power supply applications.
Robust surge current capacity ensures reliability in transient conditions.
Manufactured under the KBU8 series without automotive standards certification.

Product Description

Taiwan Semiconductor KBU807G bridge rectifier is a highly reliable discrete semiconductor device designed for converting alternating current (AC) to direct current (DC) in electronic circuits. This single-phase, 4-pin bridge rectifier features a through-hole mounting suitable for printed circuit board (PCB) implementations, offering secure mechanical attachment and excellent electrical connectivity.

Certified with a peak reverse repetitive voltage of 1000 V and a forward current rating of 8 A, the KBU807G supports a peak non-repetitive forward surge current of up to 200 A, providing robust performance in surge conditions. Operating temperature ranges from -55°C up to 150°C make it versatile across industrial and commercial environments.

The device utilizes glass passivated junction technology to improve longevity and thermal stability. Its peak forward voltage of 1 V and low peak reverse current of 5 μA ensure efficient performance with minimal power loss. Compact dimensions (23.7 mm length, 7.1 mm width, and 19.3 mm height) make it suitable for space-constrained assemblies.

Glass passivated junction technology for enhanced durability. Through-hole, SIL PCB mounting package for reliable installation. Peak reverse repetitive voltage of 1000 V ensuring high voltage tolerance. Forward current rating of 8 A suitable for moderate load applications.

Peak surge current handling of 200 A for transient conditions. Operating temperature range from -55°C to 150°C caters to extreme environments. Compact 4-pin configuration for easy integration in electronic devices. Ideal for use in industrial power supplies, converters, and electronic equipment.

This bridge rectifier is an essential component in power conversion circuits across various industrial, manufacturing, and commercial applications. Taiwan Semiconductor’s KBU807G combines robust electrical characteristics with compact design for dependable operation.
