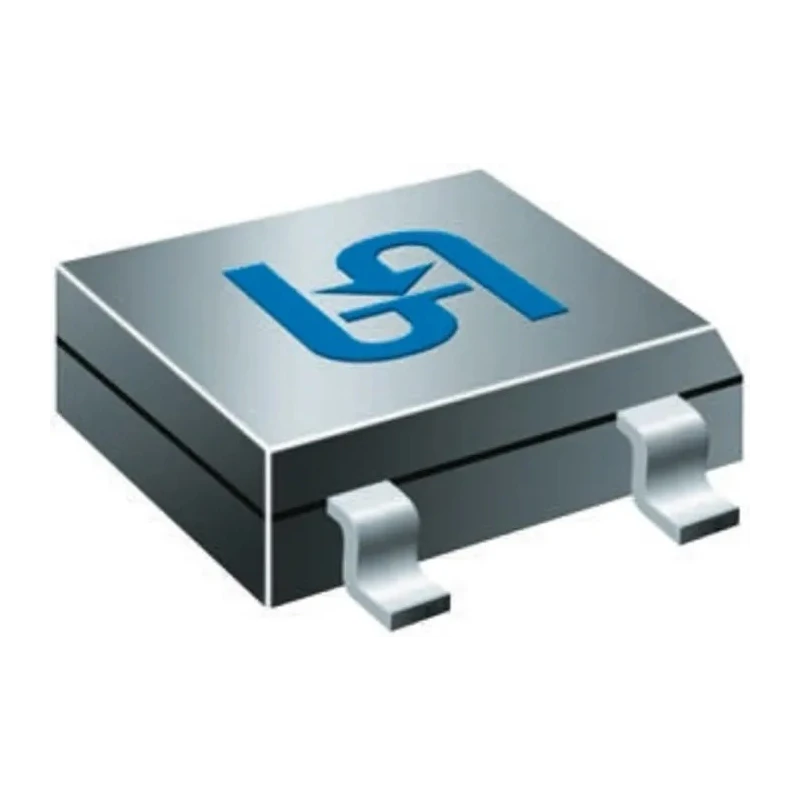

Taiwan Semiconductor Bridge Rectifier 1200V 50A 4-Pin Surface Mount DBLS208G

Taiwan Semiconductor DBLS208G is a bridge rectifier designed for converting AC input to DC output in industrial and electronic circuit applications. With a peak reverse voltage of 1200 V and a maximum forward surge current of 50 A, this 4-pin surface mount device is suitable for high-reliability environments.

The rectifier features a glass passivated junction and a molded plastic DBLS package, making it robust and ideal for automated PCB assembly processes. It is optimized for single-phase configurations and operates efficiently across a wide temperature range from -55°C to 150°C.

Its low forward voltage drop of 1.3 V and minimal peak reverse current enhance energy efficiency and reduce power loss. The device conforms to the AEC-Q101 automotive quality standard, making it suitable not only for industrial and manufacturing uses but also for automotive electronic circuits.

This bridge rectifier is used in power supplies, industrial control systems, instrumentation, HVAC equipment, and similar applications where reliable AC-to-DC conversion is needed.

This bridge rectifier is designed for single-phase applications. It features a glass passivated junction ensuring durability and stability. Compact DBLS package with dimensions of 8.51 mm length, 6.5 mm width, and 2.6 mm height.

Capable of operating from -55°C to 150°C maximum temperature. Ideal for automated PCB placement and low-cost reliable construction. Peak forward voltage drop of 1.3 V ensures efficient power conversion. Complies with automotive standard AEC-Q101 for enhanced reliability.

Low peak reverse current of 10 μA reduces leakage losses. Explore more high-quality semiconductor components and bridge rectifiers on EnvMart to support your electronics manufacturing and industrial needs.
