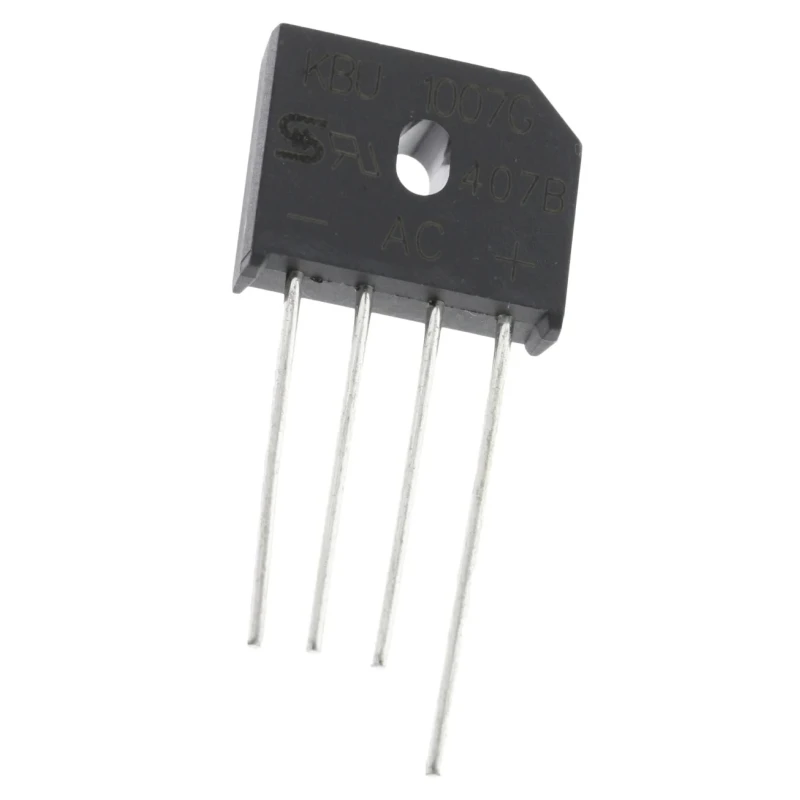

Taiwan Semiconductor Bridge Rectifier 1000 V 200 A Through Hole 4-Pin Single KBU1007G

Taiwan Semiconductor KBU1007G Bridge Rectifier is a high-performance semiconductor device with a peak reverse repetitive voltage of 1000 V and forward current rating of 10 A. The 4-pin single bridge rectifier is designed for through hole mounting in printed circuit boards.

This bridge rectifier features a glass passivated junction for enhanced reliability and a wire lead structure that eases PCB mounting. It supports peak non-repetitive forward surge current of up to 200 A, allowing it to handle transient high current conditions effectively.

Operating temperature ranges from -55°C to 150°C, making it suitable for harsh industrial environments. The device dimensions are 23.7 mm in length, 19.3 mm in height, and 7.1 mm in width, offering a compact solution for power conversion needs.

Bridge rectifiers like the KBU1007G convert alternating current (AC) input into direct current (DC) output through a diode bridge circuit configuration, providing consistent polarity output regardless of input polarity. This product supports electronic applications in power supplies, industrial controls, and other power conversion systems requiring reliable and efficient rectification.

This product originates from China and complies with basic quality manufacturing norms, although it has no specific automotive or special industrial standard certifications. Rated for 1000 V reverse voltage and 10 A forward current.

Peak surge capability up to 200 A. Glass passivated junction for durability. Compact dimensions for efficient PCB mounting. Wide operating temperature range from -55°C to 150°C.

This bridge rectifier is suitable for engineering applications in industrial machines, electronics manufacturing, power management, HVAC control panels, and general laboratory electronics modules. Explore our Electronics & Electricals section for more Taiwan Semiconductor products and related Bridge Rectifiers on EnvMart.
