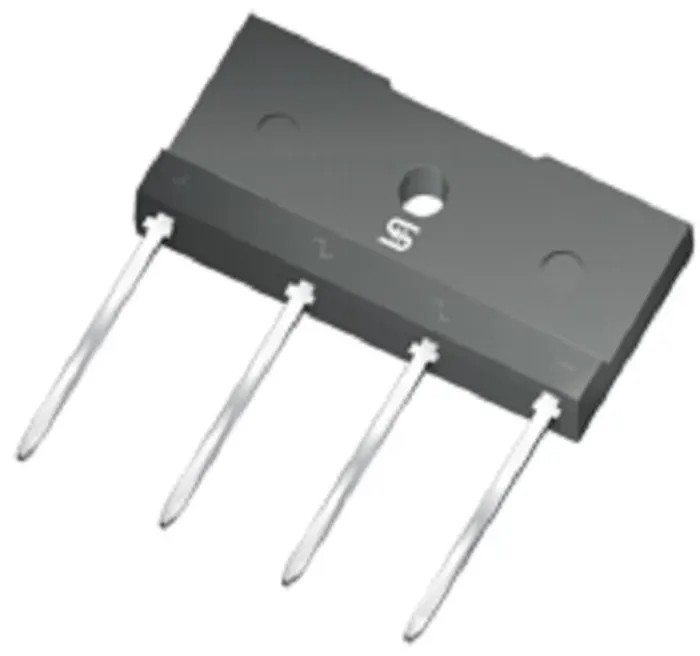

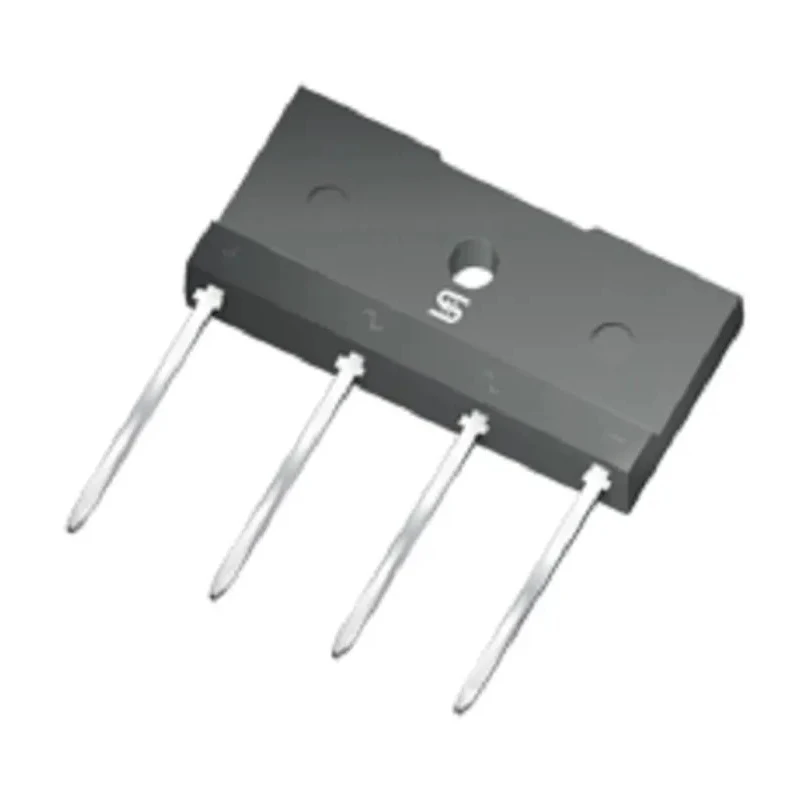

Taiwan Semiconductor Bridge Rectifier 1000 V 144 A, 4-Pin Quad T10JA07G-K

Taiwan Semiconductor T10JA07G-K Bridge Rectifier with a voltage rating of 1000 V and a current rating of 144 A is a high-quality semiconductor device designed for power electronics applications.

This device features a quad configuration with 4 pins and is housed in a TS-6PL package designed for through-hole mounting on printed circuit boards. It supports a forward current of 10 A with a peak non-repetitive forward surge current of 144 A, ensuring reliable operation under surge conditions.

Its operating temperature range from -55°C to a maximum of 150°C provides versatility and robustness across various industrial environments.

The bridge rectifier is glass passivated for chip junction protection, which increases durability and longevity of the device. It is UL recognized (file # E-326243) and complies with RoHS and halogen-free standards facilitating safe and environmentally friendly use.

Commonly used in switching mode power supplies (SMPS), adapters, and lighting applications, this bridge rectifier ensures efficient AC to DC conversion with minimal voltage drop. Its compact size of approximately 29.3 mm in length and 30 mm in height allows for integration in compact electronic assemblies.

Features a peak reverse repetitive voltage of 1000 V for robust performance. Supports a forward current of 10 A with peak surge current up to 144 A. Compact TS-6PL package with through-hole mount for ease of PCB integration.

Operates within a temperature range of -55°C to 150°C ensuring versatility. Ideal for switching mode power supplies, adapters, and lighting applications. Glass passivated chip junction enhances durability and performance consistency.

UL recognized and RoHS compliant, meeting industrial safety and environmental standards. Halogen-free according to IEC 61249-2-21 standard. Discover more semiconductor components and Bridge Rectifiers at EnvMart, your industrial electronics solution provider.
