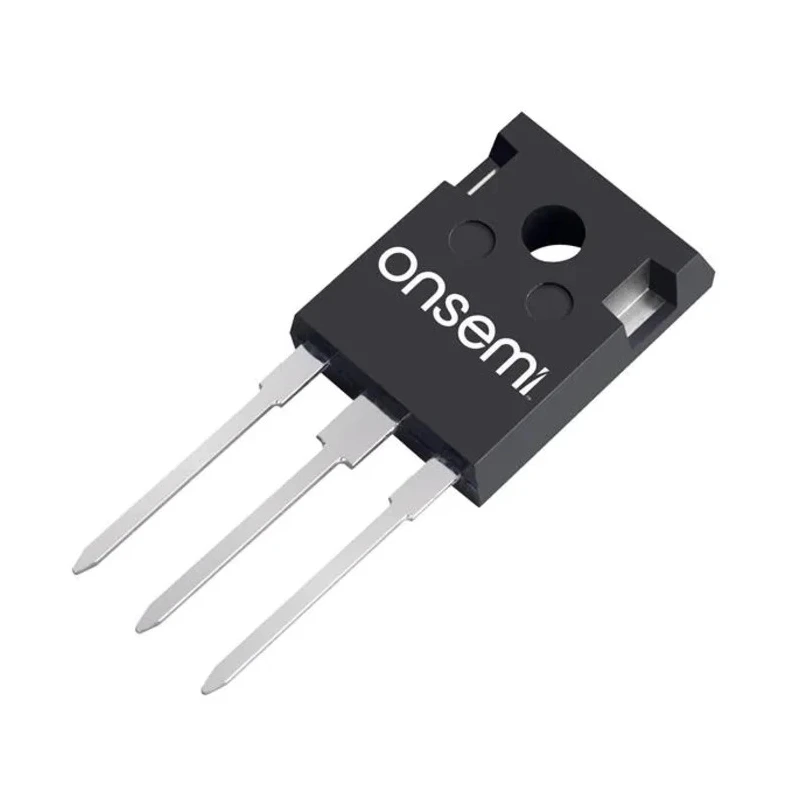

onsemi NTHL N-Channel MOSFET, 58 A Continuous Drain Current, 1.2 kV Drain Source Voltage, 5-Pin TO-247 Package NTHL045N065SC1

onsemi NTHL045N065SC1 is a high-performance N-Channel MOSFET designed for power electronics requiring robust switching capabilities. It handles a maximum continuous drain current of 58 amperes and withstands drain-source voltages up to 1.2 kilovolts. The 5-pin TO-247 through-hole package facilitates reliable mounting and cooling efficiency.

This MOSFET features a low drain-source resistance of 22 milliohms, minimizing conduction losses and improving overall system efficiency. Its maximum power dissipation rating of 117 watts ensures stable operation in power-intensive applications. The device operates reliably within an extended temperature range from -55°C to 175°C, supporting harsh industrial environments.

With a maximum gate-source voltage of 22 volts and a typical gate charge of 105 nanocoulombs, the NTHL045N065SC1 offers excellent switching speed and control, making it suitable for power conversion, motor drives, and power supplies. The device complies with RoHS environmental standards, ensuring safe usage without hazardous substances.

Applications for this MOSFET include industrial machinery, power management systems, renewable energy equipment, and automotive electronics that demand high efficiency and durability. Its silicon carbide technology further enhances switching performance and thermal management.

The product comes equipped with 5 pins in the TO-247 package, designed for through-hole mounting, allowing integration into printed circuit boards where high voltage and current handling is required.

Provides a maximum drain current of 58 amperes for high power handling. Maximum drain-source voltage rated at 1.2 kilovolts for robust operation. Features low drain-source resistance of 22 milliohms ensuring efficient conduction.

High power dissipation capability of up to 117 watts supports demanding applications. Operates within a temperature range from -55°C to 175°C for reliability under extreme conditions. Includes a maximum gate-source voltage rating of 22 volts for safe switching.

TO-247 package with through-hole mount type enables easy integration into various designs. Typical gate charge of 105 nanocoulombs contributes to fast switching characteristics. Compliant with RoHS standards for environmental safety.

Designed primarily for power switching and control in industrial and electronic systems. Explore similar semiconductor components and MOSFETs on EnvMart to find the best fit for your industrial, automotive, or commercial electronics projects.
