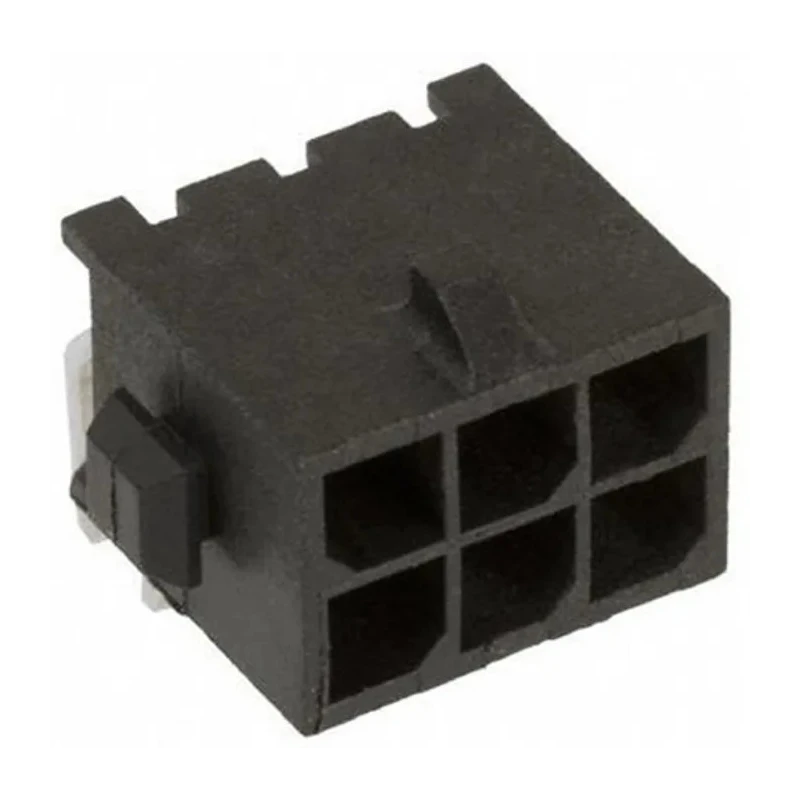

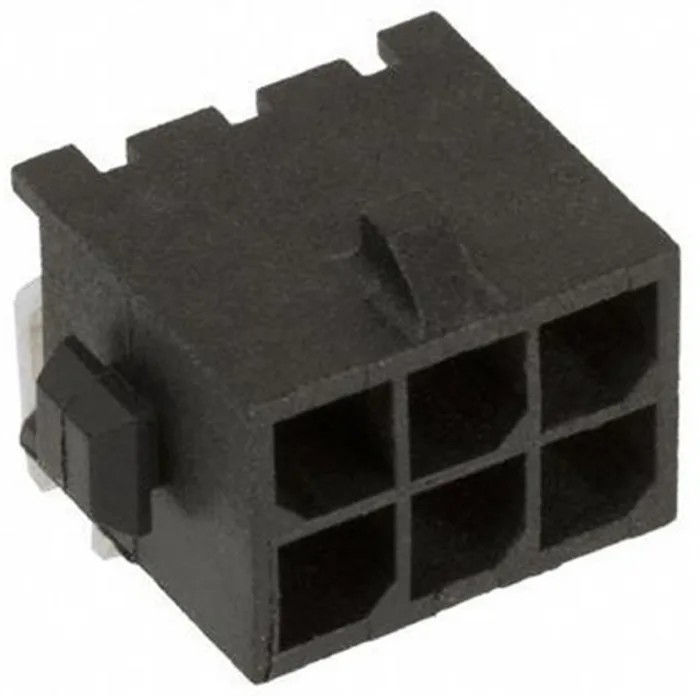

TE Connectivity Micro MATE-N-LOK Series Right Angle Through Hole PCB Header 6 Contacts 3 mm Pitch 2 Row Shrouded 3-794618-6
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Micro MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.18mm |
Key Features
- Features a shrouded design for enhanced mating protection and reliability.
- Constructed with a nylon housing and brass contacts plated with tin for durability.
- Supports a maximum current rating of 5 amperes and voltage up to 250 volts.
- Through hole mount type ensures strong mechanical and electrical PCB connection.
- Right angle orientation optimizes PCB layout and space utilization.
- Operating temperature range from -40°C to 105°C supports diverse environments.
- Includes positive locking tabs and polarization to prevent mis-mating.
- Suitable for household appliances, factory automation, lighting, and data storage applications.
Product Description
TE Connectivity 3-794618-6 Micro MATE-N-LOK Series Right Angle Through Hole PCB Header features a 3 mm pitch and 6 contact points arranged in 2 rows for reliable wire-to-board connections in electronic assemblies. The shrouded nylon housing enhances connection security and prevents incorrect mating.
This header is made with high-quality brass contacts plated with tin, providing excellent conductivity and corrosion resistance. The through hole mount type and right angle orientation make it ideal for efficient PCB layouts with robust mechanical retention.
Designed to carry currents up to 5 amperes and voltage ratings of 250 volts, it performs reliably in a temperature range from -40°C to 105°C. Positive locking tabs and polarization features ensure stable connections, preventing accidental disconnections and mismatches.
Micro MATE-N-LOK connectors are widely used in industrial, commercial, and consumer electronics applications such as household appliances, lighting systems, factory automation equipment, data storage devices, and security systems. The right angle configuration helps optimize space on printed circuit boards while maintaining performance integrity.
These connectors comply with relevant electrical standards but do not have specific approvals listed. They are made in China and are supplied new. TE Connectivity offers a robust and versatile solution for wire-to-board applications requiring secure, compact, and reliable connectors.
Features a shrouded design for enhanced mating protection and reliability. Constructed with a nylon housing and brass contacts plated with tin for durability. Supports a maximum current rating of 5 amperes and voltage up to 250 volts.
Through hole mount type ensures strong mechanical and electrical PCB connection. Right angle orientation optimizes PCB layout and space utilization. Operating temperature range from -40°C to 105°C supports diverse environments.
Includes positive locking tabs and polarization to prevent mis-mating. Suitable for household appliances, factory automation, lighting, and data storage applications. Explore more TE Connectivity PCB connectors at EnvMart for comprehensive solutions tailored to your industrial and commercial needs.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of 5 amperes and a voltage rating of up to 250 volts.
It operates within a temperature range from -40°C to 105°C, making it suitable for diverse environments.
This connector utilizes a through hole mount type, ensuring a strong mechanical and electrical connection on the PCB.
It features 6 contacts arranged in 2 rows, providing reliable wire-to-board connections.
The housing is made of nylon, while the contacts are constructed from brass and plated with tin for enhanced conductivity and corrosion resistance.
The pitch size of this model is 3 mm, which is standard for many PCB applications.
Yes, it includes positive locking tabs and polarization features to prevent mis-mating and ensure stable connections.
This model has a right angle orientation, which helps optimize PCB layout and space utilization.
It uses a solder termination type, suitable for secure connections on PCBs.
It is suitable for applications in household appliances, factory automation, lighting systems, and data storage devices.
The tail pin length is 3.18 mm, which is designed for effective soldering onto PCBs.
This connector is manufactured in China, ensuring compliance with relevant electrical standards.
