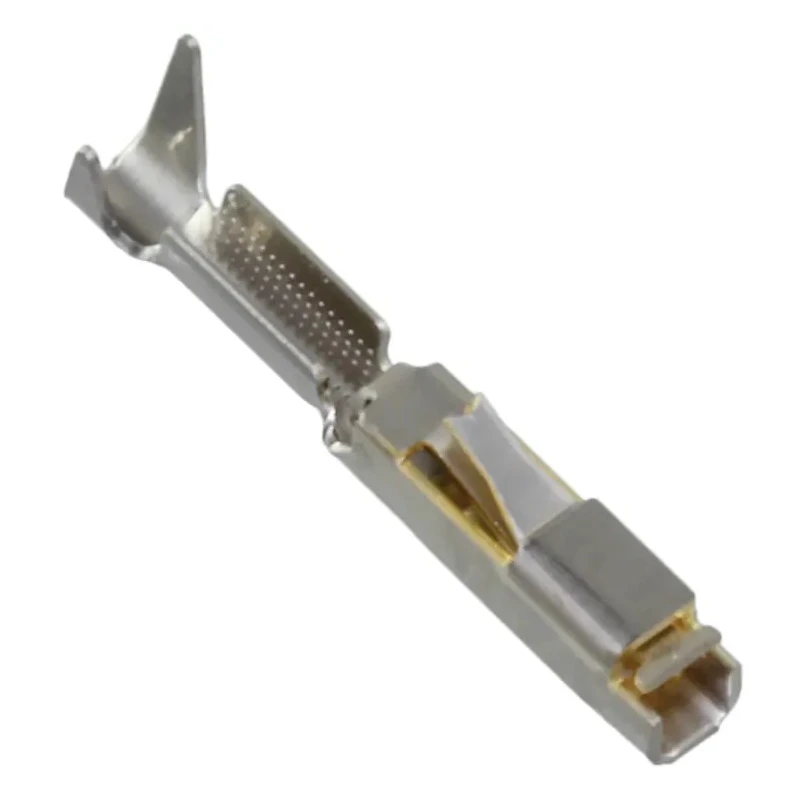

Hirose Female Crimp Terminal for HIF3B Connector Housing, 3A, Gold Plated, 28 - 24 AWG
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Hirose |
| Current | 3A |
| Model | HIF3B |
| Gender | Female |
| Contact Material | Beryllium Copper Alloy |
| Series | HIF3B |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| For Use With | HIF3B Connector Housing |
| Contact Plating | Gold |
| Maximum Wire Size mm² | 0.2mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 24AWG |
| Maximum Contact Resistance | 15mΩ |
Key Features
- Suitable for use with Hirose HIF3B connector housings and wire to board applications.
- Supports wire sizes from 28 AWG minimum up to 24 AWG maximum for flexibility in installation.
- Features gold-plated beryllium copper alloy contacts for enhanced conductivity and corrosion resistance.
- Rated for a maximum current of 3A and a contact resistance of up to 15 mΩ for reliable performance.
- Operating temperature range from -55°C to +85°C, making it ideal for demanding environments.
- Termination type is crimp to facilitate secure and robust wire connections.
- Designed for PCB connector and wire housing electronic applications.
Product Description
The Hirose HIF3-2428SCA is a female crimp terminal engineered for use with the HIF3B connector housing in wire-to-board circuits, offering dependable connection performance for electronic assemblies.
This crimp terminal is manufactured from beryllium copper alloy and finished with gold plating, which provides superior conductivity, resistance to corrosion, and ensures long-term durability. The terminal accepts wire sizes from 28 AWG (minimum) through 24 AWG (maximum), enabling compatibility with a broad range of cable types and application requirements.
With a rated maximum current of 3A and low contact resistance (up to 15 mΩ), the HIF3-2428SCA is well-suited for signal and power transmission in PCB-level connections. The crimp termination process delivers a secure mechanical and electrical bond, minimizing risk of failure in critical applications.
Operating conditions are robust, spanning from -55°C to +85°C, so this terminal can be employed confidently in industrial equipment, control panels, laboratory instruments, and commercial electronics where reliable performance across varying temperatures is crucial.
Designed for use in electronics, PCB connector housings, and wire-to-board assemblies, the HIF3-2428SCA finds utility in manufacturing, laboratory instrumentation, automation systems, and general electrical product development.
Each terminal is supplied individually for custom assembly projects; for larger scale builds, they are typically available in packs of 100. For crimping and installation, compatible Hirose hand crimp tools are referenced with stock numbers 896-0979 (24 - 28 AWG), 896-0972 (22 - 26 AWG), and 896-0975 (20 - 22 AWG).
Industrial applications include PCB assembly, connector manufacturing, laboratory equipment wiring, industrial electronics, and automation control panels. The Hirose HIF3-2428SCA female terminal delivers high reliability for demanding environments.
Browse the complete Hirose HIF3B series and EnvMart PCB Connectors & Wire Housings for additional compatible products and assembly solutions.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this crimp terminal is 3A.
This terminal is compatible with wire sizes ranging from 28 AWG minimum to 24 AWG maximum.
The operating temperature range for this model is from -55°C to +85°C.
The contacts of this terminal are made from beryllium copper alloy and are gold plated.
This terminal uses a crimp termination type, which facilitates secure wire connections.
The maximum contact resistance for this terminal is up to 15 mΩ.
Yes, this terminal is designed for use in PCB connector housings and wire-to-board applications.
This product is manufactured in Japan.
Compatible crimp tools for this terminal include stock numbers 896-0979 for 24 - 28 AWG, 896-0972 for 22 - 26 AWG, and 896-0975 for 20 - 22 AWG.
This terminal can be used in industrial equipment, control panels, laboratory instruments, and commercial electronics.
This terminal belongs to the HIF3B series.
Each terminal is supplied individually for custom assembly projects, and they are typically available in packs of 100 for larger scale builds.
