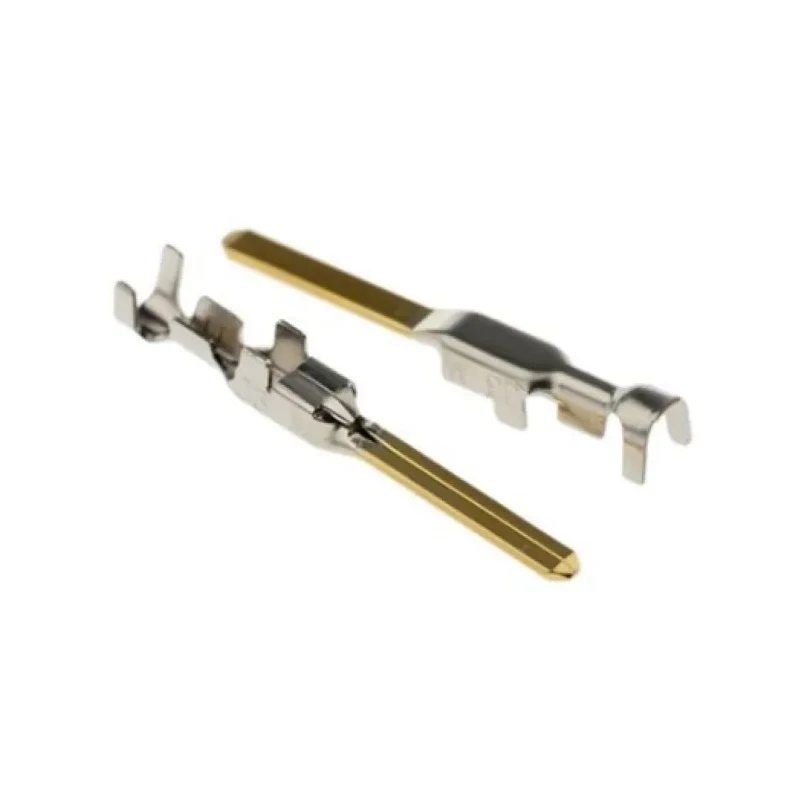

JST J300 Series Male Crimp Terminal LF3M-41GF-M2.0N, 20 AWG Min, 16 AWG Max, Gold Plated, 14A
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | JST |
| Current | 14A |
| Model | LF3M-41GF-M2.0N |
| Gender | Male |
| Construction | Double-spring |
| Contact Material | Copper Alloy |
| Series | J300 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Interfaces | Lances |

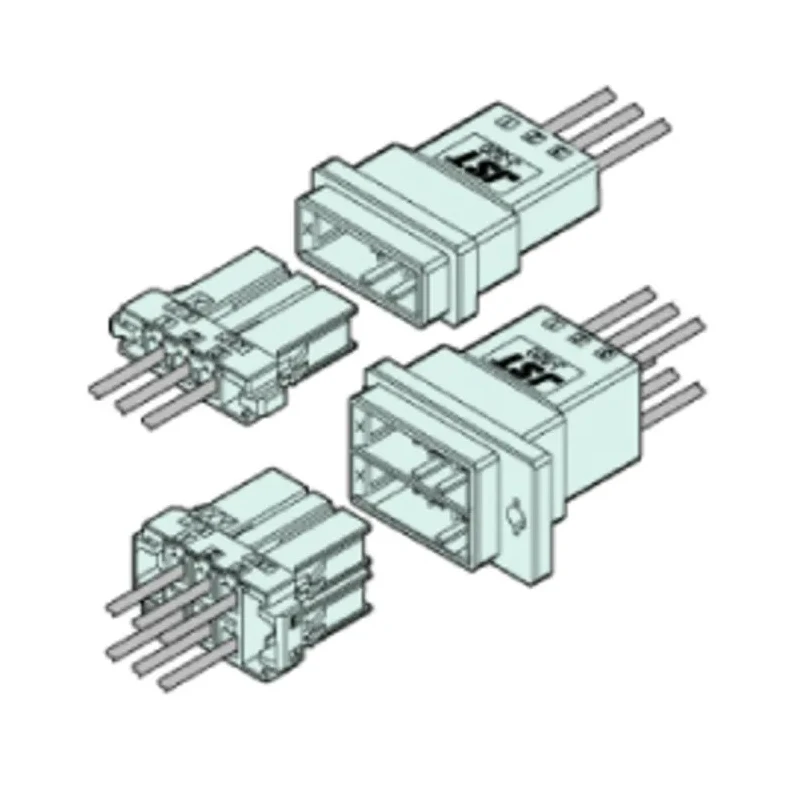

| For Use With | J300 JFA Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.25mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 16AWG |
Key Features
- Provides a reliable crimp connection for J300 JFA connector housing.
- Supports 20 AWG minimum and 16 AWG maximum wire sizes.
- Gold-plated copper alloy contacts ensure optimal conductivity.
- Rated for 14A current, suitable for signal and output circuits.
- Designed for wire-to-board and wire-to-wire interface applications.
- Operating temperature range covers -55°C to 105°C.
- Utilizes double-spring construction and housing lances for secure fit.
- Termination type is crimp for fast electrical installation.
Product Description
The JST J300 Series LF3M-41GF-M2.0N is a precision male crimp terminal designed for use with the J300 JFA Connector Housing. This terminal is suitable for both wire-to-board and wire-to-wire connections, supporting a wide range of signal to output circuit applications in electronics manufacturing, PCB assembly, automation, telecommunications, industrial equipment, and automotive wiring.
Featuring gold-plated copper alloy contacts, the terminal ensures excellent conductivity and corrosion resistance. It is compatible with wire sizes ranging from 20 AWG (minimum) to 16 AWG (maximum) and allows crimp termination, providing safe and quick installation. The terminal is rated for 14A current, making it suitable for demanding power and signal transmissions.
The LF3M-41GF-M2.0N model includes features such as double-spring construction, housing lances, and a clear click feeling during insertion, enhancing mechanical security and user feedback during installation. With an operating temperature range from -55°C to 105°C, it is reliable for both low- and high-temperature settings.
This crimp terminal is widely utilized in industrial, laboratory, and commercial environments, including PCB and wire harness assembly, test instrumentation, and electronic control systems. Its robust design meets the requirements of modern production and automated soldering lines.
Provides a reliable crimp connection for J300 JFA connector housing. Supports 20 AWG minimum and 16 AWG maximum wire sizes. Gold-plated copper alloy contacts ensure optimal conductivity. Rated for 14A current, suitable for signal and output circuits.
Designed for wire-to-board and wire-to-wire interface applications. Operating temperature range covers -55°C to 105°C. Utilizes double-spring construction and housing lances for secure fit. Termination type is crimp for fast electrical installation.
Explore more PCB connectors, wire housings, and crimp terminal options from JST in the Electronics & Electricals category on EnvMart.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 14A, making it suitable for various signal and output circuit applications.
The LF3M-41GF-M2.0N supports a minimum wire size of 20 AWG and a maximum wire size of 16 AWG.
It operates within a temperature range of -55°C to 105°C, suitable for both low and high-temperature environments.
This terminal utilizes crimp termination, allowing for quick and secure electrical installation.
It features gold-plated copper alloy contacts, ensuring optimal conductivity and corrosion resistance.
Yes, it is designed for use with the J300 JFA Connector Housing, facilitating reliable connections.
It utilizes double-spring construction and housing lances, providing a secure fit and user feedback during installation.
This terminal is suitable for wire-to-board and wire-to-wire applications in electronics manufacturing, PCB assembly, and automotive wiring.
This model is a male crimp terminal, designed to fit into compatible connector housings.
The gold plating on the contacts enhances conductivity and provides corrosion resistance, improving the terminal's performance in various environments.
This terminal is manufactured in Japan, ensuring adherence to quality standards.
It employs lances as part of its interface design, contributing to the secure connection with the housing.
