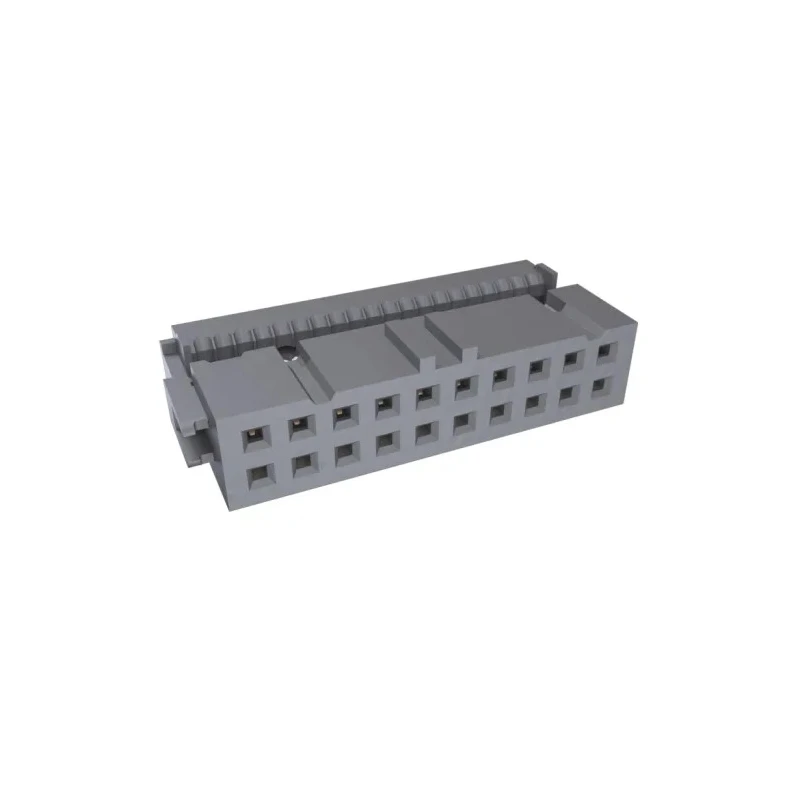

Amphenol Communications Solutions 20-Way IDC Connector Female for Cable, 2 Row, 1 kV AC, 1A, Gold Plated Contacts 71600-620LF
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV ac |
| Brand | Amphenol Communications Solutions |
| Orientation | Right Angle |
| Current | 1A |
| Model | 71600-620LF |
| Mount Type | Cable |
| Housing Material | Glass Filled Thermoplastic |
| Contact Material | Copper |
| Series | 71600 |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| Mating Cycles | 100 |
Key Features
- 20-way IDC female connector compatible with flat flexible cables.
- Two-row design for efficient cable assembly in compact spaces.
- Rated for 1 kV AC voltage and 1A current for robust industrial use.
- Gold plated copper contacts offer high conductivity and durability.
- Glass filled thermoplastic shrouded housing enhances mechanical protection.
- Right angle mount type facilitates cable routing and PCB application.
- Pre-loaded adjustable bridge-type cover ensures secure assembly and alignment.
- IDC terminals enable rapid cable termination with reliable electrical performance.
Product Description
Amphenol Communications Solutions 71600-620LF is a high-performance 20-way female IDC connector engineered for cable-to-board and cable-to-cable interconnections. With its 2-row format and compact design, it facilitates precise cable terminations in electronic equipment and machinery. The connector accommodates flat flexible cables with wire sizes ranging from 30 AWG to 26 AWG, enabling versatile use in a broad array of industrial, instrumentation, and communications applications.
This model features gold plated copper contacts, delivering superior conductivity and resistance to corrosion. The glass filled thermoplastic housing is shrouded to protect the contact system and prevent mismating. The adjustable bridge-type cover is pre-loaded for for streamlined cable assembly, locking securely to provide accurate cover-to-base alignment and reliable termination.
With a maximum voltage rating of 1 kV AC and a current capacity of 1A, the 71600-620LF is suitable for demanding environments. Its IDC terminals allow quick cable termination, reducing installation time and ensuring consistent electrical performance. Duplex plating on contacts supports up to 100 mating cycles, while polarization slots prevent incorrect cable alignment during assembly.
The right angle orientation is particularly suited to space-limited enclosures, and shrouded construction helps avoid accidental contact damage. The connector meets a wide operating temperature range from -65°C to 105°C, making it reliable for industrial, laboratory, instrumentation, medical, consumer, and communications equipment.
Designed for use with Quickie latch headers and compatible with other Amphenol series, this IDC connector is frequently deployed in PCB wiring, panel-to-panel cable assemblies, sensor interfaces, and signal distribution systems.
Industrial users benefit from fast cable termination, stable electrical contact, and robust mechanical retention, ensuring reliable performance in control systems, data instrumentation, and communication electronics.
Browse more connectors and electronic interconnect solutions from Amphenol Communications Solutions in the PCB Connectors & Wire Housings category on EnvMart.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this connector is 1 kV AC.
This model has a maximum current capacity of 1A.
The contacts are made of copper with gold plating, and the housing is constructed from glass filled thermoplastic.
The connector features a right angle orientation, making it suitable for space-constrained applications.
This connector has 20 contacts.
The operating temperature range for this connector is from -65°C to 105°C.
It uses IDC (Insulation Displacement Connector) termination, allowing for quick cable termination.
The duplex plating on the contacts supports up to 100 mating cycles.
The pitch of this connector is 2.54mm.
It is suitable for industrial, instrumentation, and communications applications, particularly in PCB wiring and sensor interfaces.
The shrouded housing design protects the contact system and prevents mismating, while the adjustable bridge-type cover ensures secure assembly.
Yes, this IDC connector is designed for use with Quickie latch headers and is compatible with other Amphenol series.
