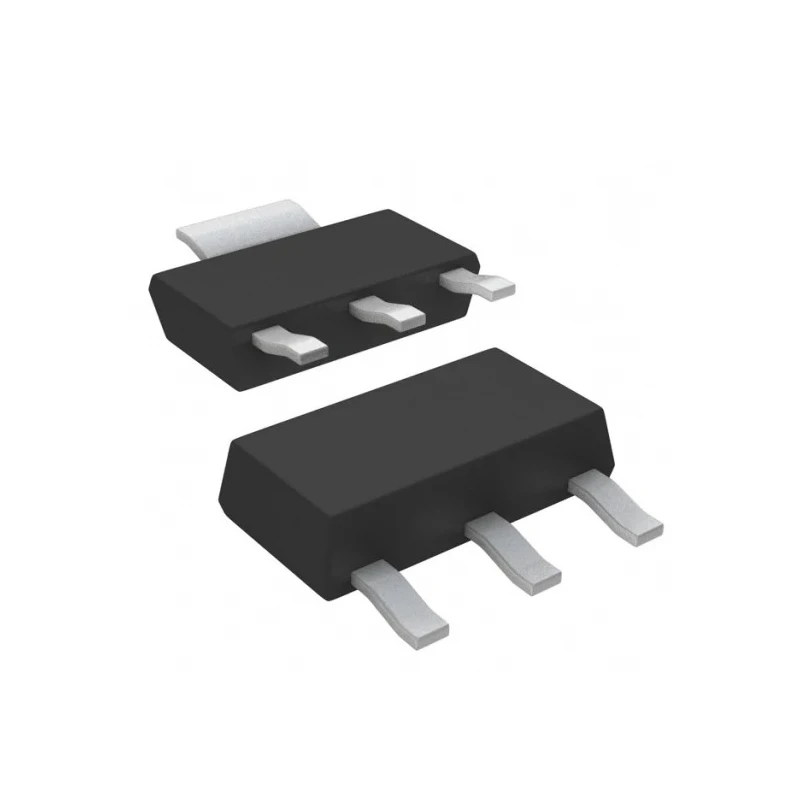

Vishay Single 1 N-Channel MOSFET 2.7 A 60 V 4-Pin SOT-223 Surface Mount IRLL014TRPBF
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.8mm |
| Length | 6.3mm |
| Model | IRLL014TRPBF |
| Width | 3.3mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-223 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 4 |
| Number of Elements per Chip | 1 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 2.7A |
| Maximum Drain Source Voltage Vds | 60V |
| Maximum Drain Source Resistance Rds | 0.2Ω |
| Maximum Power Dissipation Pd | 3.1W |
| Typical Gate Charge Qg @ Vgs | 8.4nC |
| Maximum Gate Source Voltage Vgs | 10V |
| Transistor Configuration | Single |
Key Features
- Features a maximum power dissipation of 3.1 W for efficient performance.
- Operating temperature range from -55° C to 150° C ensures reliability under extreme conditions.
- Low drain-source resistance of 0.2 Ω reduces conduction losses.
- Typical gate charge of 8.4 nC at gate-source voltage provides fast switching capability.
- Optimized for logic-level gate drive with maximum gate-source voltage of 10 V.
- Compliant with halogen and lead (Pb) free manufacturing standards.
- Suitable for applications such as battery chargers, inverters, power supplies, and switching mode power supplies (SMPS).
- Compact dimensions of 6.3 mm length, 3.3 mm width, and 1.8 mm height allow for space-efficient PCB design.
Product Description
Vishay IRLL014TRPBF is a single 1 N-Channel MOSFET designed for surface mount applications using a 4-pin SOT-223 package. It supports a maximum continuous drain current of 2.7 A and a drain-source voltage rating of 60 V, providing efficient power management in electronic circuits.
This MOSFET offers a low drain-source resistance of 0.2 Ω at a gate-source voltage of 5 V, resulting in minimized conduction losses and enhanced operational efficiency. The device can dissipate up to 3.1 W of power, suitable for medium power applications.
Designed to operate reliably in a wide temperature range from -55° C to 150° C, it excels in harsh environments and industrial settings. The typical gate charge is 8.4 nC at Vgs, facilitating fast switching performance necessary for contemporary electronic designs.
The maximum gate-source voltage rating of 10 V allows compatibility with logic-level gate drives, optimizing performance for various control circuits. Vishay's MOSFET is halogen and lead (Pb) free, aligning with environmental compliance and safety standards.
Applications include battery chargers, power inverters, switching power supplies, and other power supply systems where efficient power switching is required. The compact package dimension of 6.3 mm length, 3.3 mm width, and 1.8 mm height enables integration into dense PCB layouts.
Maximum continuous drain current: 2.7 A. Maximum drain-source voltage: 60 V. Low on-resistance of 0.2 Ω at Vgs 5 V. Maximum power dissipation: 3.1 W. Operating temperature range: -55° C to 150° C. Typical gate charge: 8.4 nC.
Maximum gate-source voltage rating: 10 V. 4-pin SOT-223 surface mount package.
This Vishay MOSFET product provides robust performance for electronics manufacturing, industrial automation, and power management systems. It offers a reliable solution for improving energy efficiency in various electrical and power circuits. Explore more Vishay semiconductor products and components on EnvMart for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 2.7 A.
This MOSFET has a maximum drain-source voltage rating of 60 V.
It can dissipate up to 3.1 W of power, making it suitable for medium power applications.
The operating temperature range is from -55° C to 150° C.
The typical gate charge at gate-source voltage is 8.4 nC.
The drain-source resistance is 0.2 Ω at a gate-source voltage of 5 V.
It uses a 4-pin SOT-223 surface mount package.
The maximum gate-source voltage rating for this model is 10 V.
It is suitable for applications such as battery chargers, inverters, power supplies, and switching mode power supplies (SMPS).
The dimensions are 6.3 mm in length, 3.3 mm in width, and 1.8 mm in height.
Yes, it is compliant with halogen and lead (Pb) free manufacturing standards.
This model features a single N-channel configuration.
