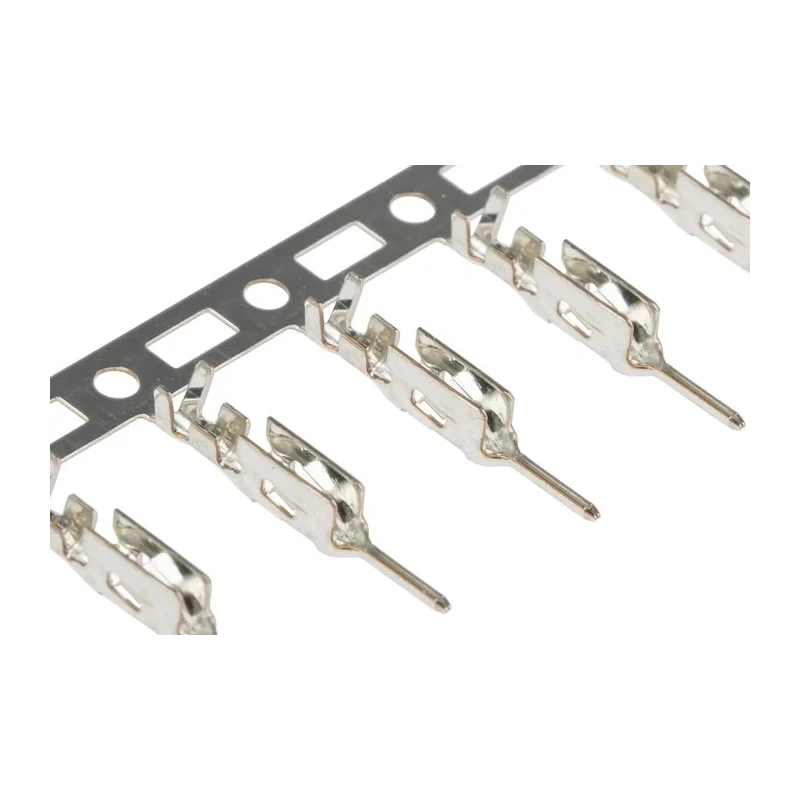

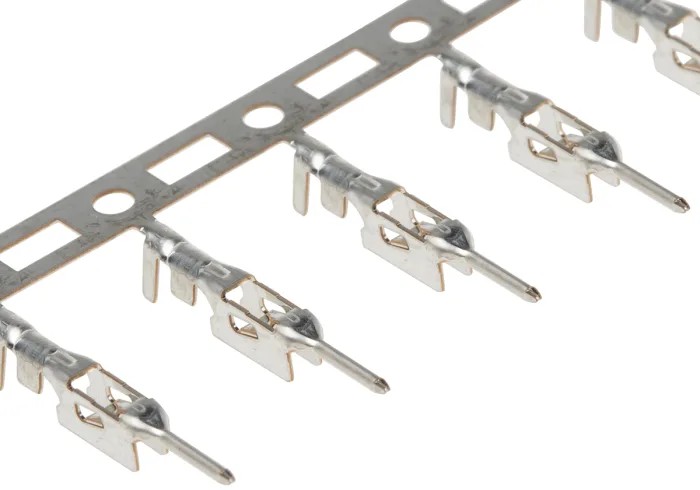

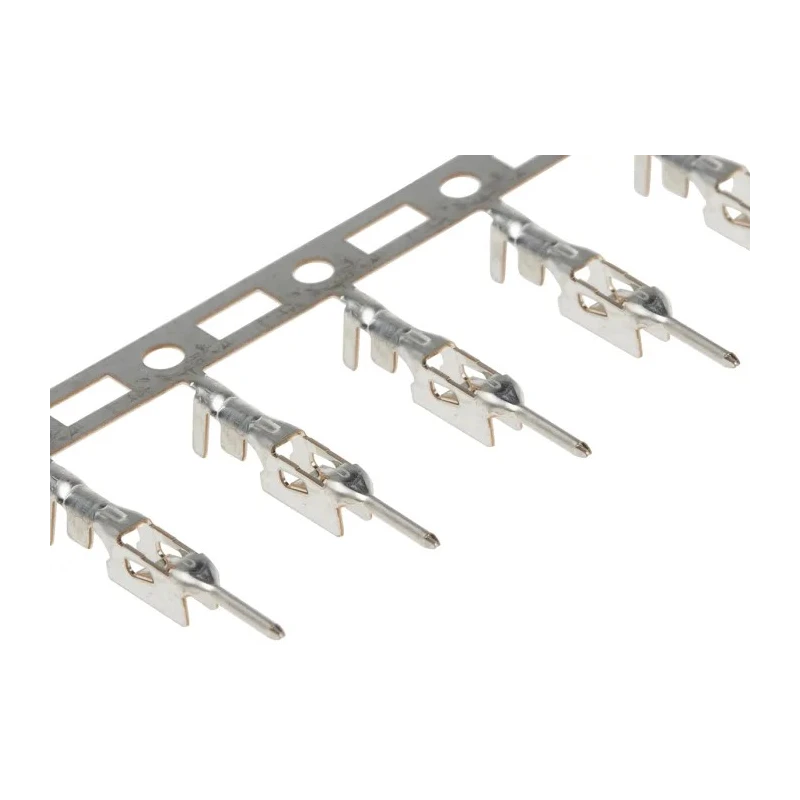

JST PA Series Male Crimp Terminal 3A, 26–22 AWG, Tin Plated, Phosphor Bronze, SPAL-001T-P0.5

Free Delivery in India | Lowest Global Shipping Charges

JST PA Series Male Crimp Terminal 3A, 26 - 22 AWG, Tin Plated, Phosphor Bronze, SPAL-001T-P0.5



Category PCB Connectors & Wire Housings Brand JST Condition New

Specifications

Country of Origin	Japan
Brand	JST
Current	3A
Model	SPAL-001T-P0.5
Gender	Male
Contact Material	Phosphor Bronze
Series	PA
Termination Type	Crimp
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
For Use With	PAL Connectors
Contact Plating	Tin
Maximum Wire Size mm²	0.3mm²
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	25mΩ

Key Features

Male crimp terminal compatible with JST PA series connectors.
Supports wire sizes from 26 AWG (min) to 22 AWG (max).
Tin-plated phosphor bronze contact for robust electrical performance.
Rated current capacity up to 3 amperes.
Crimp termination provides reliable, vibration-resistant connections.
Maximum contact resistance of 25 milliohms.
Operating temperature range from -25°C to 85°C.
Secondary retainers enhance protection against incomplete insertion.

Product Description

The JST SPAL-001T-P0.5 is a precision-engineered male crimp terminal from the PA series, offering a secure and reliable solution for wire-to-board and wire-to-wire connections in electronics assemblies. Designed for use with JST’s PA connector range, this terminal ensures robust performance for critical circuitry where quality connections and reliable contacts are essential.

Constructed from durable phosphor bronze and finished with a tin plating, this terminal provides exceptional electrical conductivity and resistance to corrosion. It supports a current rating up to 3 A, making it suitable for a broad range of low-to-moderate power electronic applications, including industrial control panels, consumer electronics, and automotive harnesses.

The terminal accommodates a wire size range from 26 AWG minimum to 22 AWG maximum, providing versatility for different cabling requirements. Crimp termination ensures a vibration-resistant connection that is less prone to issues from mechanical stress or movement, maintaining integrity in demanding environments.

Featuring a secure locking mechanism, the SPAL-001T-P0.5 prevents accidental disengagement and offers additional safety with secondary retainers for protection against incomplete insertion. Its panel locking capability further improves system reliability during installation and usage.

Operating efficiently across a temperature range of -25°C to 85°C, this contact is designed to meet the thermal demands of modern electronics. With a maximum contact resistance of 25 mΩ, the terminal maintains consistently low-resistance electrical pathways, reducing power losses in assemblies.

This crimp terminal is highly suitable for use in PCB connectors, wire harness manufacturing, industrial controls, consumer electronics, and automotive or commercial system wiring. Its robust design supports long service life and secure, maintainable interconnects in professional electronics settings where stability and performance are crucial.
