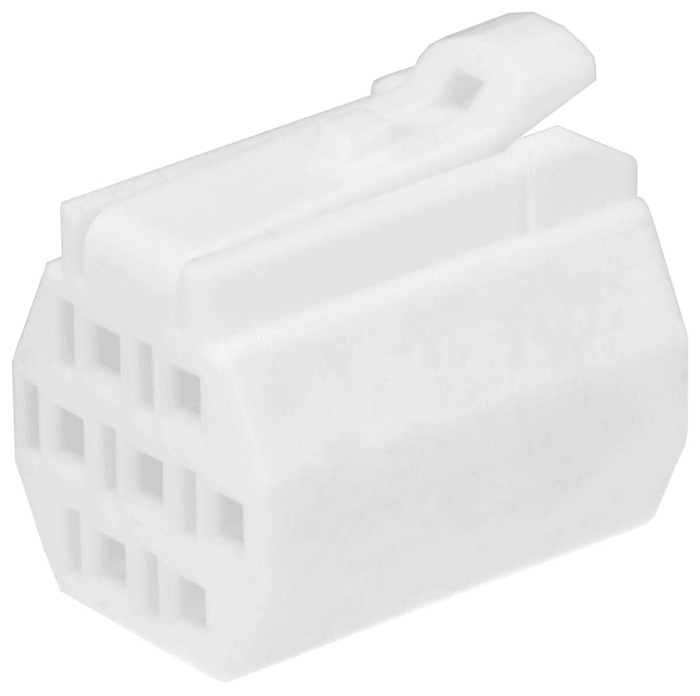

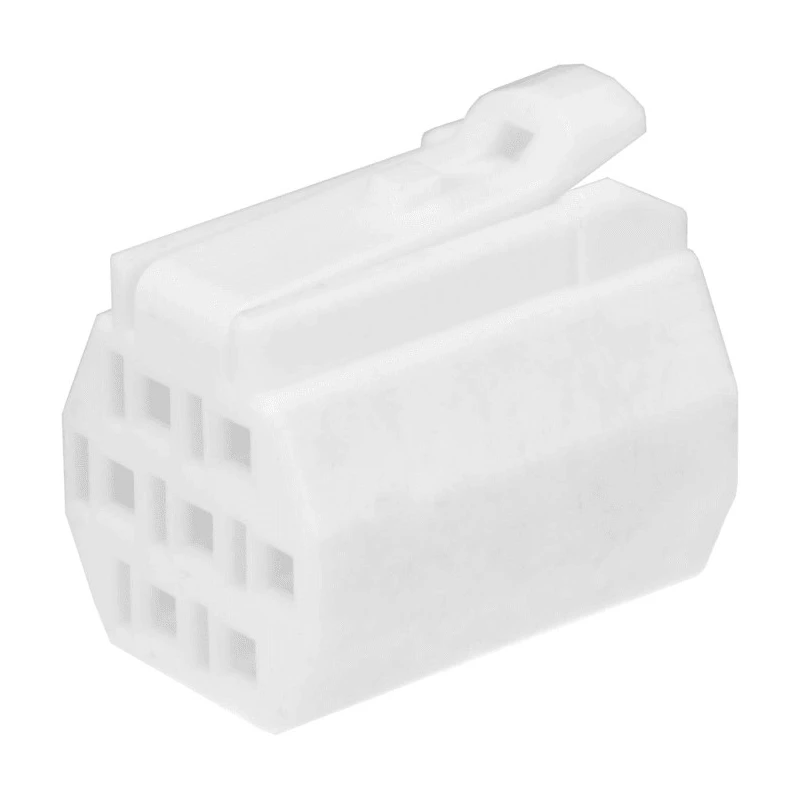

Hirose DF62 Female Connector Housing 2.2 mm Pitch 6 Way 2 Row Straight

Hirose DF62B-6S-2.2C(11) female connector housing provides a high-quality wire-to-wire connection solution with a 2.2 mm pitch, 6 contacts arranged in 2 rows, and a straight orientation tailored for panel mounting applications.

Constructed with durable polybutylene terephthalate, this housing is engineered to fit into small and confined spaces, ensuring ease of use and reducing the risk of cable tangling. The design integrates a secure positive locking mechanism with two lock indicators including an audible tactile click and a visible lock window for verification after mating.

The housing eliminates the risk of electrical arcing by concealing all metal contact surfaces inside a non-conductive body, enhancing safety in electrical and electronic assemblies. It is designed to be compatible with DF62B connector housings and requires separately purchased crimp socket contacts.

This connector housing is widely applicable in industries such as robotics, medical devices, consumer appliances, and office equipment, supporting reliable and efficient connection systems in these technical environments.

The polybutylene terephthalate body provides high chemical and temperature resistance. Compact dimensions: 9.55 mm length and 7.1 mm width allow integration into tight module spaces. Two-row, 6-contact configuration supports complex wiring requirements.

Positive locking mechanism ensures secure electrical and mechanical connection. Female gender connector designed for wire-to-wire socket connections. Improve your assembly line efficiency and maintain high connection standards with the Hirose DF62 series Connector Housings available at EnvMart.
