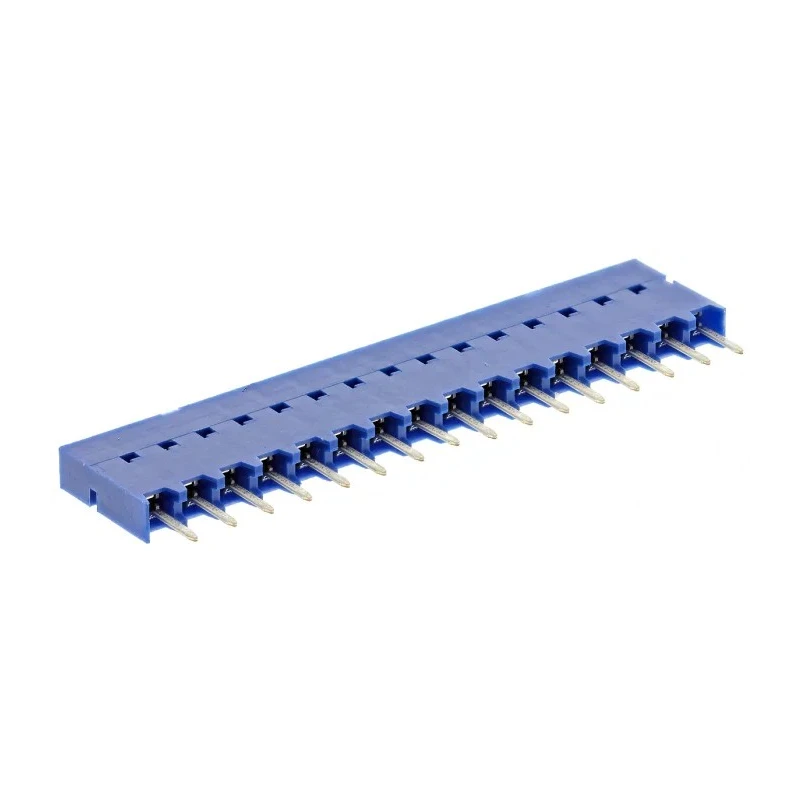

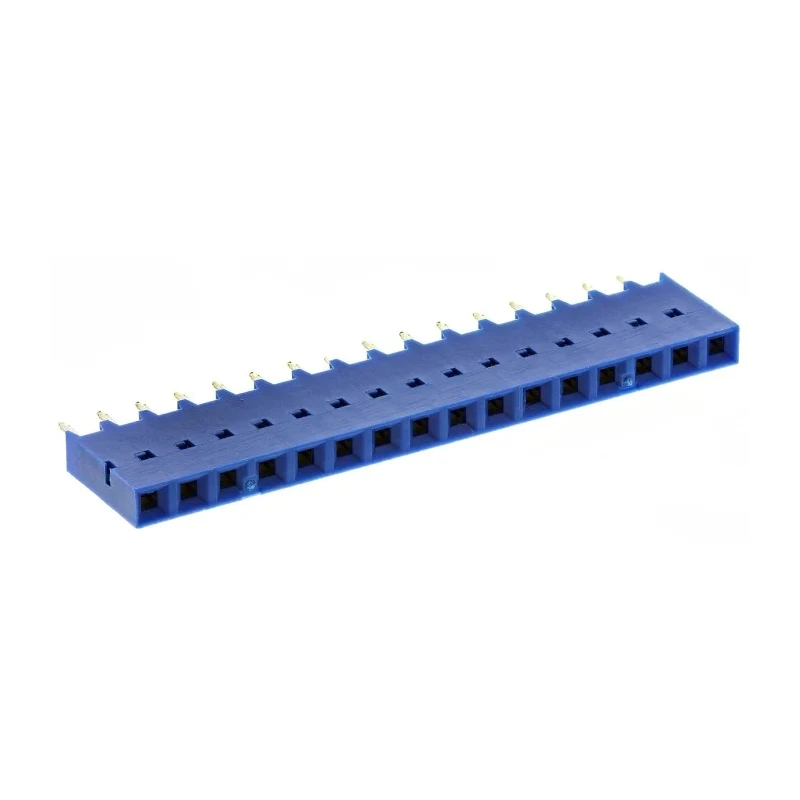

Amphenol Communications Solutions Dubox Series Straight Through Hole PCB Socket 16-Contact 1 Row 2.54 mm Pitch 75915-416LF
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 1kV |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Operating Temperature | -65 °C → +125 °C |
| Current | 12A |
| Model | 75915-416LF |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Thermoplastic |
| Contact Material | Bronze |
| Series | Dubox |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Insulation resistance | 105 MΩ min |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Resistance | 15 mΩ max. (initial resistance) |
| Standards/Approvals | RoHS |
| Contact Plating | Matt Tin |
| Number of Contacts | 16 |
| Connector System | Board-to-Board |
Key Features
- The socket supports a current rating of 12A and voltage rating of 1kV.
- Constructed from glass filled thermoplastic housing material for durability.
- Features bronze contact material with matt tin plating for corrosion resistance.
- Has a through hole mount type with straight orientation for easy assembly.
- Operating temperature range is from -65°C to 125°C, suitable for harsh environments.
- Contact resistance is low at 15 milliohms maximum initial resistance.
- Insulation resistance is at least 105 MΩ ensuring electrical isolation.
- Meets RoHS standards and is made in France.
Product Description
Amphenol Communications Solutions 75915-416LF Dubox Series Straight Through Hole PCB Socket is a high-performance connector designed for reliable board-to-board interconnections in industrial and electronic applications.
This PCB socket features 16 contacts arranged in a single row with a 2.54 mm pitch, providing secure and robust electrical connections. The housing is made from glass fiber reinforced polyester that meets UL94 V-0 flammability rating, ensuring safety and durability in demanding environments.
The contacts are crafted from bronze and plated with matt tin on PCB tails, with double-bladed pre-tensioned contacts offering low insertion force and gold plating on the contact area to enhance conductivity and longevity.
The socket supports a maximum current of 3 A DC per contact (2 A DC max on all contacts simultaneously) and a voltage rating of up to 1 kV. Operating temperature ranges from -65 °C up to 125 °C, making it suitable for a wide range of industrial, telecommunications, and electronic manufacturing environments.
The socket's glass filled thermoplastic housing provides mechanical strength and electrical insulation. Matt tin plating on the contact tails ensures solderability and corrosion resistance. Contact resistance remains low at a maximum of 15 mΩ initially, promoting efficient signal transmission.
High insulation resistance of 105 MΩ enhances safety and performance. Compliant with RoHS standards, supporting environmentally responsible manufacturing. Designed for through hole mounting with straight orientation for ease of PCB assembly.
Typical applications include industrial electronic assemblies, telecommunications equipment, and other board-to-board connector needs requiring durability, reliability, and high electrical performance.
Made in France, this Dubox Series PCB Socket represents quality engineering suitable for demanding electronic component integration. For more PCB connector solutions, explore the extensive range within the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The socket supports a maximum current rating of 12A.
It has a voltage rating of up to 1kV.
The operating temperature range is from -65 °C to +125 °C.
The housing is made from glass filled thermoplastic, and the contacts are bronze with matt tin plating.
This model features 16 contacts arranged in a single row.
The contact resistance is a maximum of 15 milliohms initially.
Yes, it meets RoHS standards for environmentally responsible manufacturing.
It is designed for through hole mounting with straight orientation.
The insulation resistance is at least 105 MΩ, ensuring electrical isolation.
It uses a solder termination type.
This PCB socket is made in France.
Typical applications include industrial electronic assemblies and telecommunications equipment.
