| Country of Origin | India |
|---|---|
| Brand | Amphenol Communications Solutions |
| Current | 1A |
| Model | 10114827-001LF |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | 10114827 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Wire-to-Board Connectors |
| Contact Plating | Tin |
| Minimum Wire Size AWG | 32AWG |
| Maximum Wire Size AWG | 28AWG |
| Maximum Contact Resistance | 20mΩ |

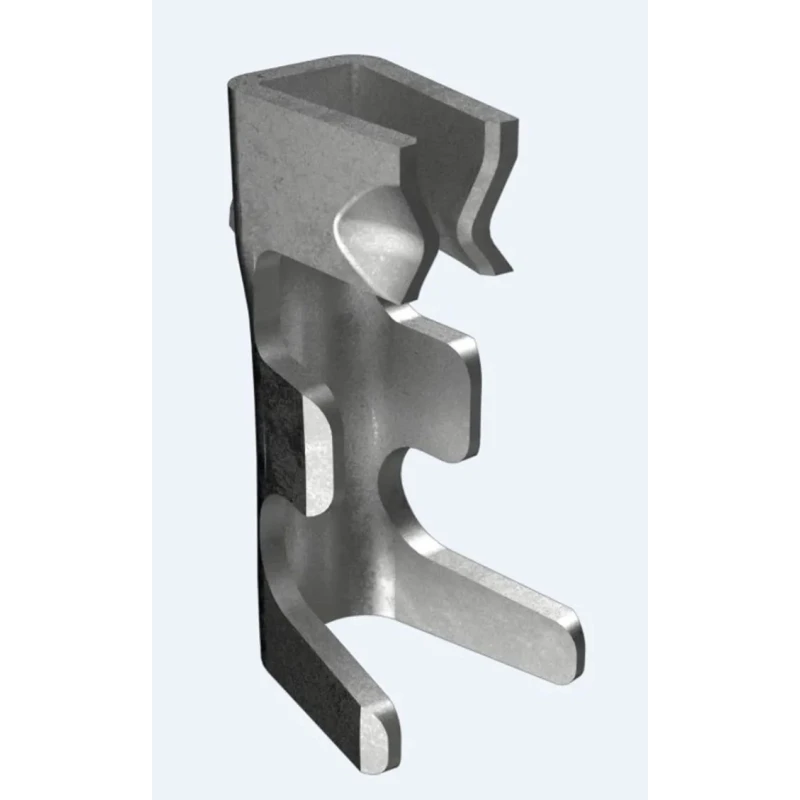

Amphenol Communications Solutions 10114827-001LF Female Crimp Terminal is a high-quality crimp contact designed for wire-to-board connector applications, supporting wire sizes ranging from 32 AWG minimum to 28 AWG maximum. Featuring copper alloy contact material with a matte tin plating, this crimp terminal ensures excellent electrical conductivity and corrosion resistance in demanding environments.
This terminal is rated for a current of 1 ampere, suitable for low current electronic circuits, with a maximum contact resistance of 20 milliohms, promoting reliable signal transmission. It operates effectively within a broad temperature range from -40°C up to 105°C, making it suitable for diverse industrial and commercial conditions.
The termination method is crimp, offering a secure, mechanically robust connection when used with compatible 1.25 mm crimp connector housings from the same 10114827 series. Although no specific industry certifications or standards approvals are indicated, the design follows typical industrial electronic component quality practices.
These crimp terminals are widely utilized in electronic assembly, printed circuit board wiring, and communication systems. Their design supports efficient and durable interconnection, vital for equipment reliability in industrial automation, consumer electronics, laboratory instruments, and other electrical applications.
Constructed from copper alloy with matte tin plating for reliable conductivity. Supports a current rating of 1 ampere, suitable for low-power applications. Operates effectively within a temperature range of -40°C to 105°C.
Specified contact resistance is a maximum of 20 milliohms ensuring efficient signal integrity. Termination is by crimping, providing a secure and durable wire connection. Part of the 10114827 series, compatible with 1.25 mm crimp connector housings.
Ideal for use in electronic assemblies, PCB wiring, and signal connectors in industrial and commercial equipment. Explore more industrial electronic components and reliable connector solutions on EnvMart for your manufacturing and repair requirements.
