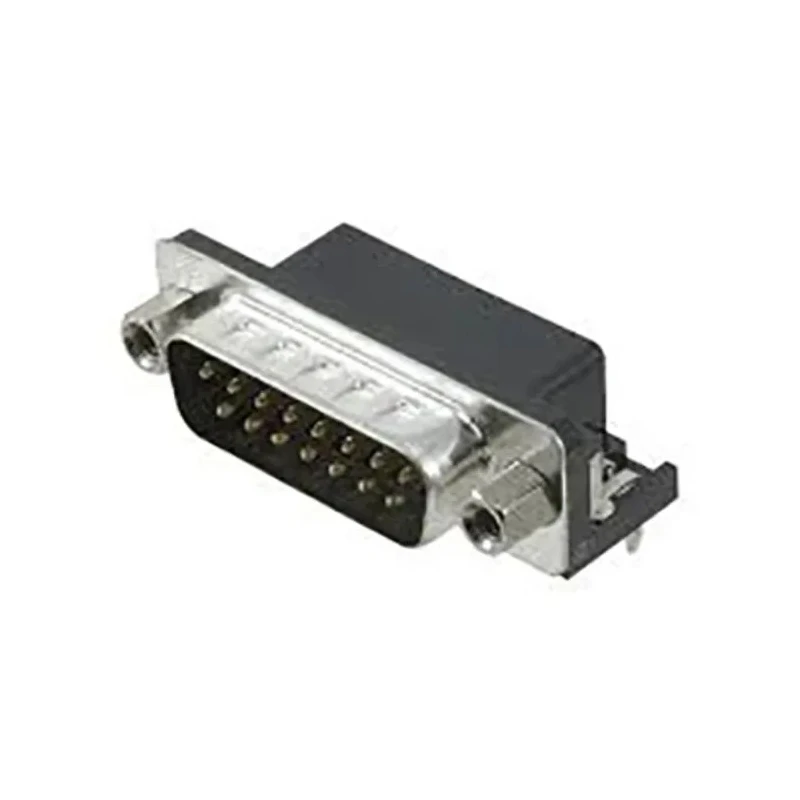

Amphenol Communications Solutions 15 Way Right Angle 2.74 mm Pitch Plug-in D-Sub Connector with Screw Male D15P33E6GX00LF
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300.0V |
| Brand | Amphenol Communications Solutions |
| Orientation | Right Angle |
| Current | 5A |
| Model | D15P33E6GX00LF |
| Mount Type | Plug-in |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Mounting Hardware | Screw |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.74mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 15 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | D-Sub |
| D-Sub Shell Size | A |
Key Features
- Features 15 male contacts for secure electrical connections.
- Right angle orientation with plug-in mount type enhances PCB installation.
- Constructed with polybutylene terephthalate housing and brass contacts plated with gold over nickel.
- Rated for 5A current and 300V voltage ensuring reliable performance.
- Operating temperature range from -55°C to 125°C suitable for harsh environments.
- Termination type is solder suitable for durable connections.
- Includes screw mounting hardware for secure attachment.
- Compliant with DIN 41652 and MIL-C-24308 standards for dimensional accuracy.
Product Description
Amphenol Communications Solutions D15P33E6GX00LF is a high-performance 15 Way Right Angle Plug-in D-Sub Connector featuring a 2.74 mm pitch and screw mounting hardware. Designed to deliver robust and reliable electrical connections, this connector is suited for a wide range of industrial, telecommunications, aerospace, military, instrumentation, and medical applications.
The connector features a male plug configuration with polybutylene terephthalate housing and machined brass contacts plated with gold over nickel to enhance conductivity and corrosion resistance. Rated for 5A current and 300V voltage, it provides dependable performance across a wide operating temperature range from -55°C up to 125°C, suitable for harsh and demanding environments.
This D-Subminiature connector adheres to DIN 41652 and MIL-C-24308 dimensional standards and includes mounting screws for secure panel or PCB installation. The right angle orientation and plug-in mount type facilitate compact PCB layouts and easy mating. Termination is via solder bucket for reliable contact retention.
With 15 contacts, it meets the connectivity needs for many demanding signal and power applications. The robust design ensures long-term durability and compatibility with associated cable and panel accessories.
Features 15 male contacts for secure electrical connections. Right angle orientation with plug-in mount type enhances PCB installation. Constructed with polybutylene terephthalate housing and brass contacts plated with gold over nickel.
Rated for 5A current and 300V voltage ensuring reliable performance. Operating temperature range from -55°C to 125°C suitable for harsh environments. Termination type is solder suitable for durable connections. Includes screw mounting hardware for secure attachment.
Compliant with DIN 41652 and MIL-C-24308 standards for dimensional accuracy. Ideal for telecommunications, aerospace, military, industrial, instrumentation and medical applications.
This connector is a standard choice for engineers needing reliable D-Sub connections compatible with a variety of electronic systems and harsh operating conditions. Explore the Electronics & Electricals category at EnvMart for related connectors and components to complete your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 5A and a voltage of 300V, ensuring reliable performance in various applications.
The termination type for this connector is solder, which provides durable connections.
The housing is made of polybutylene terephthalate, and the contacts are brass plated with gold over nickel for enhanced conductivity and corrosion resistance.
This D-Sub connector features 15 male contacts for secure electrical connections.
The pitch of this model is 2.74 mm, which is standard for its design.
It utilizes a plug-in mount type, which enhances PCB installation and facilitates compact layouts.
Yes, it is compliant with DIN 41652 and MIL-C-24308 standards for dimensional accuracy.
The connector includes screw mounting hardware for secure attachment during installation.
This model features a right angle orientation, which is advantageous for space-constrained applications.
It is suitable for a wide range of applications including telecommunications, aerospace, military, industrial, instrumentation, and medical fields.
The country of origin for this connector is India.
