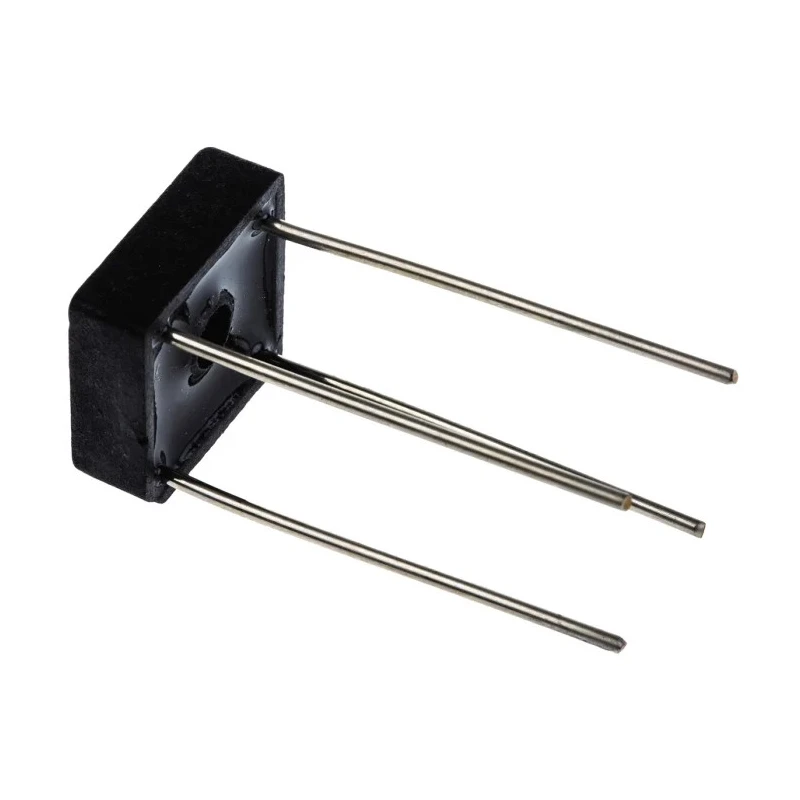

Vishay Bridge Rectifier 800 V 137 A 4-Pin Single Phase Through Hole D-72 Package VS-KBPC808

Vishay VS-KBPC808 bridge rectifier is a high-performance single-phase, 4-pin device designed for converting AC input into DC output through full-wave rectification. It supports a peak reverse repetitive voltage of 800 V and a peak surge current of 137 A, making it suitable for demanding electronic and industrial applications.

The device is provided in a D-72 package with through-hole mounting, allowing for secure PCB or chassis installation. Its compact dimensions of 15.75 mm length and width, and 5.33 mm height suit space-constrained designs. Operating temperature range spans from -55°C up to 150°C, allowing use under varied thermal conditions.

Key electrical characteristics include a forward current rating of 8 A, peak forward voltage of only 1 V, and minimal peak reverse current of 100 mA, ensuring efficient switching and minimal energy loss. Its solid build ensures reliability and long operational life in industrial, power supply, and HVAC systems.

The VS-KBPC8 series provides a durable solution for power rectification in industrial machines, laboratory equipment, and commercial electronics requiring stable DC supply. Designed for PCB mounting and chassis use. Wide operating temperature range from -55°C to 150°C.

Compact package size with a reliable 4-pin configuration. High surge current capacity for transient protection. Low forward voltage drop reduces power dissipation. Suitable for industrial, laboratory, and HVAC applications.
