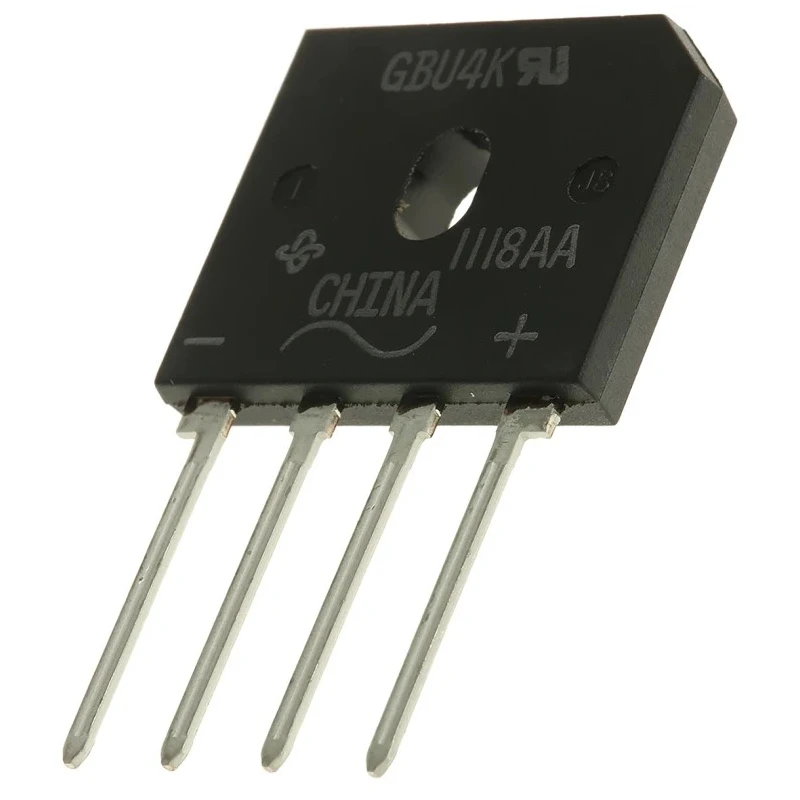

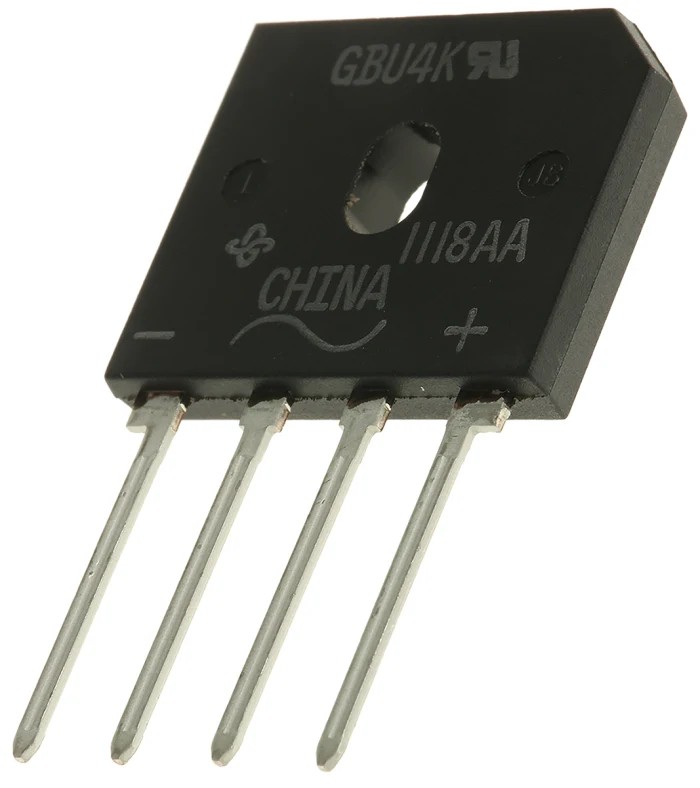

Vishay Bridge Rectifier 800 V 150 A 4-Pin Single Through Hole GBU4K-E3/45

Free Delivery in India | Lowest Global Shipping Charges

Vishay Bridge Rectifier 800 V 150 A 4-Pin Single Through Hole GBU4K-E3/45

Name: Vishay Bridge Rectifier 800 V 150 A 4-Pin Single Through Hole GBU4K-E3/45
Brand: Vishay
SKU: 214519
Price: 1.45 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	18.8mm
Length	22.3mm
Model	GBU4K-E3/45
Width	3.56mm
Mount Type	Through Hole
Series	GBU4
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	GBU
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	800V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	150A
Forward Current If	4A
Peak Forward Voltage Vf	1V

Key Features

The bridge rectifier offers a forward current of 4 A ensuring reliable power conversion.
Constructed with glass passivated junction technology for enhanced durability.
Operates efficiently within a temperature range of -55°C to 150°C.
Design includes high case dielectric strength of 1500 Vrms for robust insulation.
Soldering pins facilitate easy assembly on printed circuit boards.

Product Description

Vishay GBU4K-E3/45 Bridge Rectifier is a high-performance semiconductor device with 800 V peak reverse repetitive voltage and 150 A peak forward surge current, built in a through-hole GBU package.

This single-phase, 4-pin bridge rectifier is ideal for converting alternating current (AC) input to direct current (DC) output in full-wave rectification applications, providing consistent polarity regardless of input signal direction.

The device features a glass passivated junction that enhances reliability, coupled with a maximum operating temperature of 150°C and minimum operating temperature of -55°C, making it suitable for demanding industrial and electronic environments.

The GBU4K-E3/45 rectifier is designed with high case dielectric strength of 1500 Vrms, ensuring excellent insulation and surge ruggedness, supported by a forward current rating of 4 A and a peak forward voltage of 1 V for efficient operation.

Its compact dimensions (18.8 mm height, 22.3 mm length, and 3.56 mm width) enable space-saving PCB mounting with soldering pins for ease of assembly. This component is frequently utilized in electronic power supplies, industrial equipment, and general power control applications requiring reliable rectification.

The bridge rectifier offers a forward current of 4 A ensuring reliable power conversion. Constructed with glass passivated junction technology for enhanced durability. Operates efficiently within a temperature range of -55°C to 150°C.

Design includes high case dielectric strength of 1500 Vrms for robust insulation. Soldering pins facilitate easy assembly on printed circuit boards. Compact dimensions: height 18.8 mm, length 22.3 mm, and width 3.56 mm. This component is suitable for industrial, laboratory, manufacturing, and electronic power supply use cases requiring efficient and reliable rectification solutions.

Choose Vishay Bridge Rectifiers in GBU packages for assured quality and performance. Explore more semiconductor components in the EnvMart collection.
