Vishay Bridge Rectifier 65 V 50 A 4-Pin Single B40C1500G-E4/51

Free Delivery in India | Lowest Global Shipping Charges

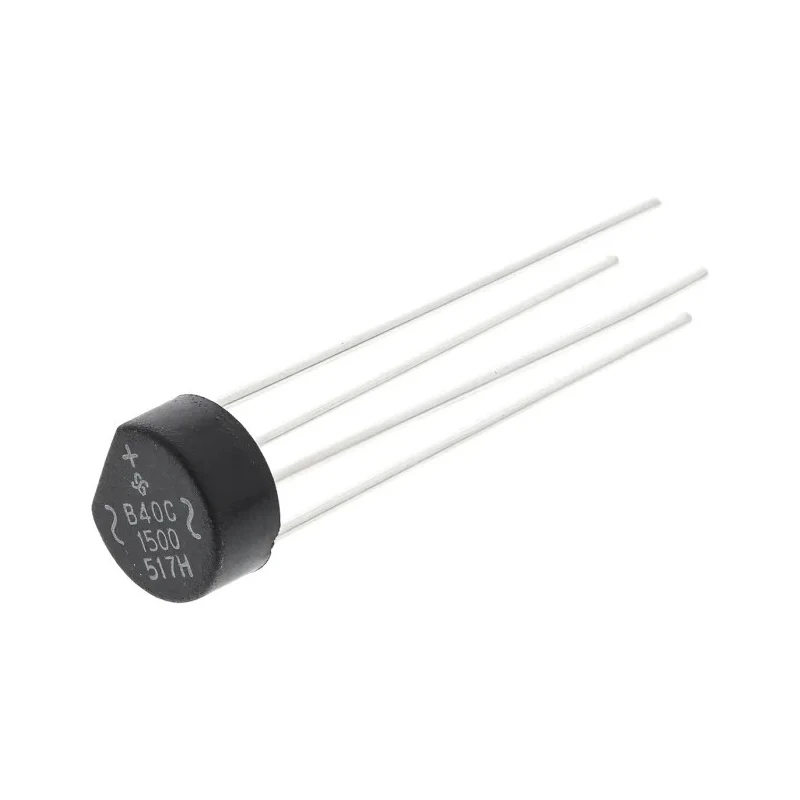

Vishay Bridge Rectifier 65 V 50 A 4-Pin Single B40C1500G-E4/51

Name: Vishay Bridge Rectifier 65 V 50 A 4-Pin Single B40C1500G-E4/51
Brand: Vishay
SKU: 214574



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	5.6mm
Length	9.86mm
Model	B40C1500G-E4/51
Width	8.84mm
Mount Type	Through Hole
Series	B40C
Configuration	Single
Maximum Operating Temperature	125°C
Package Type	WOG
Minimum Operating Temperature	-40°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	65V
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Forward Current If	1.6A
Peak Forward Voltage Vf	1V

Key Features

The device features a 4-pin single configuration suitable for through-hole mounting.
It offers a peak non-repetitive forward surge current of 50 A for transient conditions.
The product operates reliably within a temperature range of -40°C to 125°C.
Its compact dimensions are 9.86 mm length, 8.84 mm width, and 5.6 mm height.
The bridge rectifier ensures low forward voltage drop with a peak forward voltage of 1 V.
It features a wire lead structure designed for PCB through-hole mounting.
This component is manufactured to provide high dielectric strength and maximum thermal performance.
Ideal for full-wave rectification in power supply and electronic applications.

Product Description

Vishay B40C1500G-E4/51 Bridge Rectifier is a discrete semiconductor device used for full-wave rectification by converting alternating current (AC) input into direct current (DC) output, suitable for industrial and electronic power applications.

It has a peak reverse repetitive voltage (Vrrm) of 65 V and a forward current (If) rating of 1.6 A, ensuring reliable operation under demanding load conditions. The bridge rectifier is packaged in a WOG type case with through-hole mounting and 4 pins, facilitating easy integration on printed circuit boards (PCBs).

Operating temperature ranges from -40°C to 125°C, making it suitable for harsh industrial environments. The device provides a peak non-repetitive forward surge current (Ifsm) of 50 A and a peak forward voltage (Vf) of 1 V, enabling efficient power conversion with minimal losses.

Compact dimensions of 9.86 mm length, 8.84 mm width, and 5.6 mm height help in space-constrained designs. This diode arrangement ensures the same polarity output regardless of AC input polarity, ideal for AC-DC power supply units, automotive electronics, and industrial controls.

The device features a 4-pin single configuration suitable for through-hole mounting. It offers a peak non-repetitive forward surge current of 50 A for transient conditions. The product operates reliably within a temperature range of -40°C to 125°C.

Its compact dimensions help optimize PCB space in industrial circuits. The bridge rectifier ensures low forward voltage drop with a peak forward voltage of 1 V. High dielectric strength and thermal performance enhance device longevity.

Widely used in power electronics, industrial machines, and electronic devices requiring reliable AC to DC conversion. Set contains 1 Pc Vishay B40C1500G-E4/51 Bridge Rectifier (4-Pin Single). Explore Vishay products in the Bridge Rectifier category to find components designed for high performance and industrial reliability at EnvMart.
