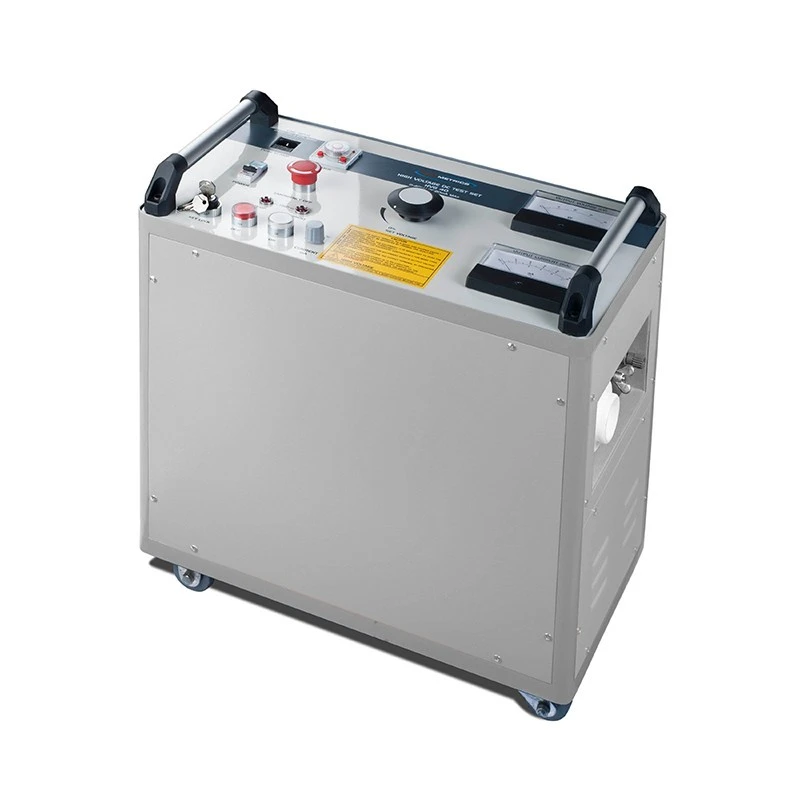

Motwane HVG 40 High Voltage DC Test Set
Specifications
| Country of Origin | India |
|---|---|
| Brand | Motwane |
| Power Supply | 230V AC ±10% / 50 Hz / Single Phase |
| Dimensions | 525(L) x 300(W) x 470(H) mm + Handle 50mm + Wheel 65mm |
| Storage Temperature | 5 Deg C ~ 60 Deg C |
| Protection Type | Circuit Breaker in Mains input / Variac Zero Inter Lock / Built-in Auto Discharge / Over Current Trip / Over Temperature Trip |
| Working Temperature | 0 Deg C ~ 55 Deg C |
| Model | HVG 40 |
| Output Voltage (V) | 0-40 kV continuously variable |
| Weight | 40 kg Approx |
| Indication | Analog Meter for output voltage (kV) / Analog Meter for output leakage current (mA) / ON/OFF indication / Over Heat LED indication / Over Current Trip LED indication |
| Duty Cycle | 525(L) x 300(W) x 470(H) mm + Handle 50mm + Wheel 65mm |
| Cooling | Air Cooled |
| Output Current | 5 mA / 10 mA & 20 mA manually selectable ranges |
| Standard Warranty | One Year |
| Mode of Operation | Manual |
| Other Models Available | High Voltage Test Set HVG 5 / HVG 10 HVG 20 / HVG 30 |
| Timer Mode | Manually selectable as required |
| Output Voltage Control | Controlled manually through variac |
Key Features
- Output Voltage 0-40 kV DC continuously variable.
- Output Current 10 or 20mA manually selectable ranges selected by rotary switch.
- Duty Cycle 5 min ON / 10 min OFF.
- Timer Mode Manually selectable as required.
- Power Supply 230V AC + 10%, 50 Hz, Single phase.
Product Description
The DC HI-Pot Tester is a reliable, accurate, and rugged tool used to check the dielectric strength of insulation in cables, capacitors, transformers, and various electrical components. It is also known as a dielectric breakdown test and is crucial for identifying deterioration in insulation to enable timely corrective actions. This test is an essential part of electrical safety tests mandated by standards organizations globally. It is used to check the dielectric strength of various equipment in power transmission and distribution networks.
Application
High voltage DC test set is used to check Di-electric strength of Cable, Transformers, Switchgear & Relays, Motors, Coils & Chokes, Generators, Capacitors, Wires & Cables, and other Electrical apparatus manufacturers or in power transmission and distribution network.
Standard Accessories:
- HV Output Cable: 10 sq mm single core screen cable, 5-meter length with heavy-duty clamp.
- Mains supply cord: 3-meter length.
- Yellow/Green earthing cable: 10 sq mm, 5-meter length.
