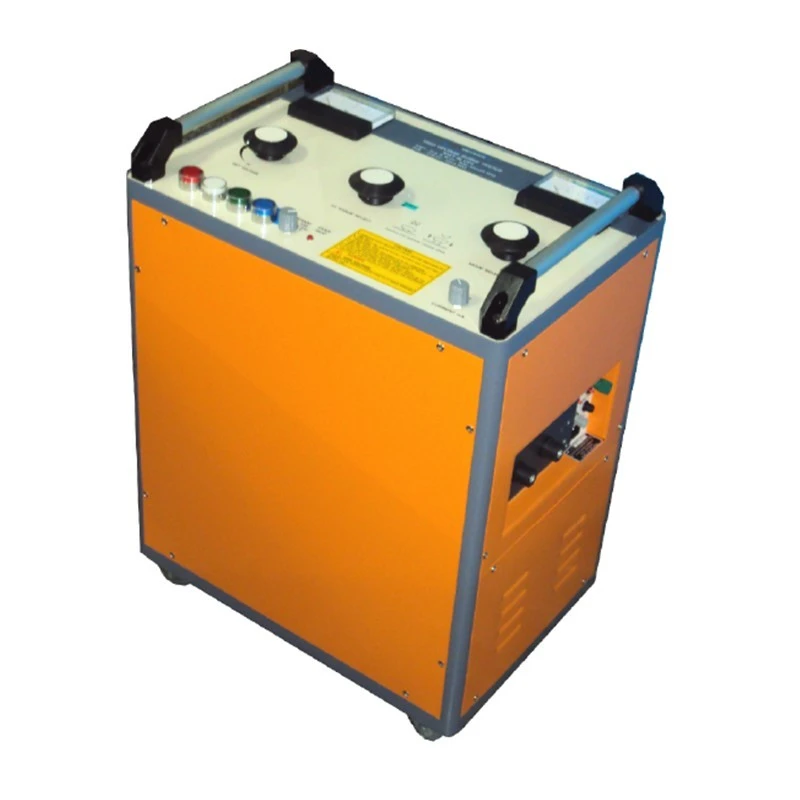

Motwane SWT 16 CPT High Voltage Surge Tester
Specifications
| Country of Origin | India |
|---|---|
| Brand | Motwane |
| Power Supply | 230V AC + 10% / 50 Hz / Single Phase |
| Model | SWT 16 CPT |
| Working Modes | Surge & DC Test |
| Surge Voltage Ranges | 4kV / 8kV / 16kV |
| Surge Energy (Standard) | 500 Joules |
| Surge Energy (Optional) | 1000J / 1500J |
| Surge Impulse Modes | Single Impulse / 1.5s / 3s / 6s intervals |
| DC Test Voltage (Standard) | Up to 16kV |
| DC Test Voltage (Optional) | Up to 20kV |
| DC Output Current | 10mA / 20mA |
| Burn Current | 60mA (short period) |
| Pre-location Modes | ICM / SIM (with suitable pre-locator unit and arc reflection filter) |
| Network Suitability | Medium Network 11kV |
Key Features
- Working Mode Surge & DC Test.
- Pin-point location of cable faults in Medium and High voltage cables by acoustic method.
- Output Surge voltage selectable ranges 4kV, 8kV, 16kV.
- High energy of 500 Joules at each range (Optional 1000J/1500J).
- Full energy delivering capacity at each select range.
- Single Impulse and 1.5, 3 & 6 seconds intervals Sequence.
- Perform DC test up to 16 kV (Optional 20kV).
- Output DC Current 10 mA / 20mA.
- Burn Current 60mA for short period.
- Pre-location of cable fault distance with suitable pre-locator unit in ICM mode.
- Easy to connect with arc reflection filter and pre-locate fault distance in SIM mode with suitable pre-locator unit.
- Power Supply 230V AC + 10%, 50 Hz, Single phase.
- Medium Network 11kV.
Product Description
This device is designed for precise underground cable fault location and high-voltage DC testing. It operates in two primary modes: Surge and DC Test. In Surge mode, it pinpoints cable faults in medium and high-voltage cables using acoustic methods, with selectable output surge voltages of 4kV, 8kV, and 16kV. Each range delivers high energy (500 Joules standard, with optional 1000J or 1500J). The device supports single impulse and sequence intervals of 1.5, 3, and 6 seconds.
In DC Test mode, it performs dielectric tests up to 16kV (optional 20kV) with an output DC current of 10mA or 20mA. It also features a burn current of 60mA for short periods. The device can be used for pre-location of cable faults in ICM and SIM modes when connected with suitable pre-locator units and arc reflection filters.
It operates on a 230V AC power supply and is suitable for medium network 11kV applications.
Available on EnvMart, these Voltage Detectors are designed for quick and reliable voltage presence detection in electrical systems. Motwane Voltage Detectors offer high precision and safety, making them essential for electricians, maintenance professionals, and industrial applications.
