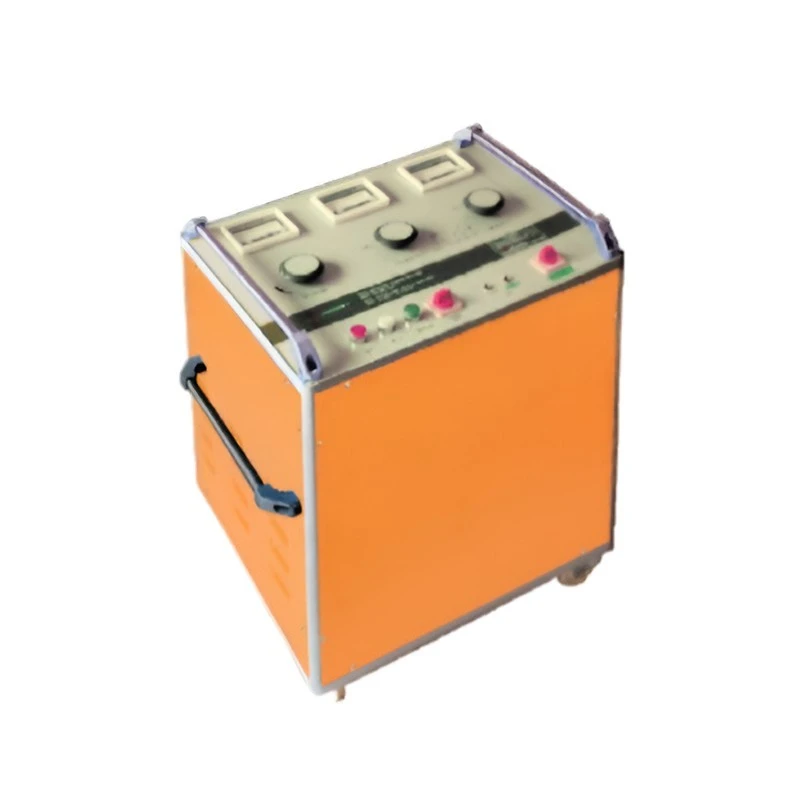

Motwane SWT 32 CPT High Voltage Surge Tester
Specifications
| Country of Origin | India |
|---|---|
| Brand | Motwane |
| Power Supply | 230V AC + 10% / 50 Hz Single phase |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | -5 °C to 60 °C |
| Protection Type | Mains input circuit breaker / Fast blow fuse / Over current trip / Over temperature trip |
| Dimensions (LxWxH) | 635 x 520 x 670 mm (+ Handle 55mm / + Wheel 100mm) |
| Model | SWT 32 CPT |
| Weight | 135 Kg Approx. |
| Output Current | 10 mA |
| Energy Output | 1000 Joules full Energy at each Range (Optional 2000 Joules) |
| Working Mode | Surge and DC Test |
| Impulse Mode | Single and Auto |
| Auto Impulse Sequence | 1.5 / 3 / 6 Second intervals |
| Safety Protections | Variac zero interlock / Output cable plug interlock / HV range switch interlock / Mode select switch interlock / Emergency OFF switch |
| Output Voltage Ranges (Surge) | 0 - 8 / 16 / 32 kV |
| Surge Mode Indication | ON/OFF lamp / Analog voltage meter (kV) / Over temp trip LED / Analog mains input meter (V) |
| Output Voltage Ranges (DC) | 32 kV |
| DC Mode Indication | Analog voltage meter (kV) / Leakage current trip LED / Analog leakage current meter (mA) |
| Operating Time (Surge) | Approx. 8 hours continuous |
| Operating Time (DC) | 3 Minutes |
Key Features
- Two working modes: Surge and DC high voltage (High-Pot) test
- Pin-point location of cable faults in Low, Medium, and High voltage cables using the acoustic method
- Surge and DC high voltage test up to 32 kV
- Selectable output voltage in three ranges: 8 kV, 16 kV, 32 kV
- Full energy delivery at each selected range in surge mode
- High energy of 1000 Joules (optional 2000 Joules)
- Cyclical pulse repetition for precise pin-pointing in the acoustic method
- Fully protected operation with three safety interlocks
- Emergency OFF facility
- Pre-location of cable fault distance by connecting with a suitable pre-locator in ICM and SIM modes
- Easy connection with an arc reflection filter to pre-locate high resistance faults under SIM mode with a suitable pre-locator
- Automatic cable discharge in case of power failure or after switching off
- Rugged construction and easy portability for on-site use
Product Description
Occurrence of cable fault cannot be avoided due to many factors. Long outage of a cable from service results in heavy loss of revenue to the power distribution company, production loss to industries as well as unpleasant conditions to deal with. This requires an efficient equipment capable of locating the fault and test cable in minimum possible time and restoring the supply. In power cable fault location the vast majority of pin-pointing and cable test are carried out using a surge wave tester. It is a powerful equipment and offers 1000 Joules energy on 8, 16 and 32 kV ranges, and DC high voltage (High-Pot) test which allows its use on LT, Medium and HT networks effectively. It is also used to pin-point the cable faults in power cables with the help of surge wave receiver and pre-locate cable fault distance with the help of suitable pre-locator unit in Impulse Current (ICM) mode. It can couple to an arc reflection filter to pre-locate faults in Secondary Impulse (SIM) Mode.
Application
It is used to pin-point underground cable faults in acoustic mode with the help of suitable surge wave receiver and to perform DC high voltage di-electric test up to 32 kV in power transmission and distribution cable networks.
Standard Accessories
- 5 meter 10 sq mm single core screen output HV cable with heavy duty brass clamps.
- 5 meter yellow / green earthing cable
- 3 meter mains supply connecting cord.
