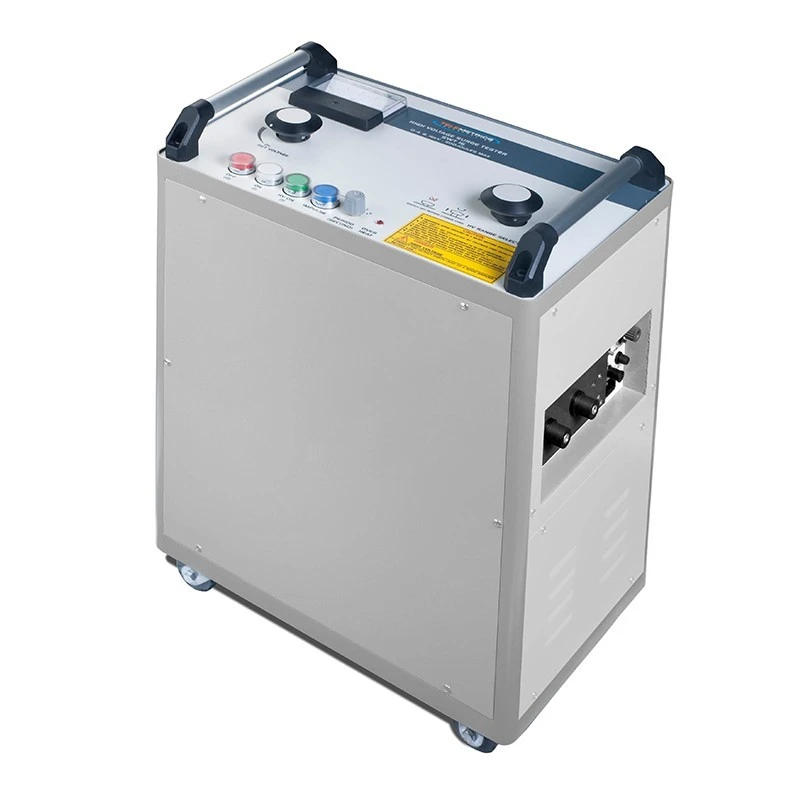

Motwane SWT 16 High Voltage Surge Tester
Specifications
| Country of Origin | India |
|---|---|
| Brand | Motwane |
| Power Supply | 230V AC ±10% / 50 Hz / Single Phase |
| Operating Temperature | 0 Deg C ~ 55 Deg C |
| Dimensions | 450(L) x 310(W) x 550(H) mm + Handle 50mm + Wheel 65mm |
| Storage Temperature | -5 Deg C ~ 60 Deg C |
| Product Name | SWT 16 High Voltage Surge Tester |
| Model | SWT 16 |
| Weight | 60 KG APPROX |
| Operating Time | 2-3 hours continuous |
| Cooling System | Air-cooled |
| Standard Warranty | One Year |
| Indications | ON/OFF lamp indication / Analog moving coil meter for output voltage (kV) indication / Over Heat indication |
| Output Energy | 500 Joules full energy at each range (Optional 1000 Joules) |
| Output Voltage Ranges | 0-4 / 8 / 16 kV selectable & continuously variable |
| Impulse Mode | Single and Auto |
| Auto Impulse Sequence | 1.5 / 3 / and 6 seconds intervals |
| Safety Protections | Variac zero inter-lock / Output cable plug inter-lock / HV Switch inter-lock / Over Heat Protection / Input current limiter in input supply |
| Earth Discharge | Soft and automatic discharge |
| Other Models Available | HV Surge Tester SWT 16D (4 / 8 / 16kV-1000J) |
| Associated Receiver | Surge wave receiver SLE90 or SLE200 |
| Over Load Protection | Input current limiter switch in mains input supply / Fast blow fuse in controlled supply |
Key Features
- Pin-point location of cable faults in Low, Medium and High voltage cables by acoustic method.
- Output voltage selectable ranges 4 kV, 8 kV, 16 kV continuously variable.
- High energy of 500 Joules at each range (Optional 1000J).
- Full energy delivering capacity at each select range.
- Single Impulse and 1.5, 3 & 6 seconds intervals Sequence.
- Pre-location of cable fault distance with suitable pre-locator unit in ICM mode.
- Easy to connect with arc reflection filter and pre-locate fault distance in SIM mode.
- Power Supply 230V AC + 10%, 50 Hz, Single phase.
- Medium Network 11kV.
Product Description
The High Voltage Surge Tester SWT16 is useful equipment to pin-point underground power cable faults by an acoustic method with a suitable surge wave receiver. It is designed for use on low and medium voltage cable networks. It can also pre-locate cable fault distance with the help of a suitable pre-locator unit in impulse current (ICM) mode. Additionally, it has an advanced feature to connect an arc reflection filter to pre-locate fault distance in secondary impulse SIM/ARM mode with a suitable pre-locator unit.
Application
It is used to pin-point underground cable faults in power transmission, distribution cable networks in acoustic mode with the help of a suitable surge wave receiver.
Standard Accessories
- HV Output Cable (10 sq mm single core screen cable, 5-meter length with heavy-duty clamp).
- Mains supply cord (3-meter length).
- Yellow/Green earthing cable (10 sq mm, 5-meter length).
