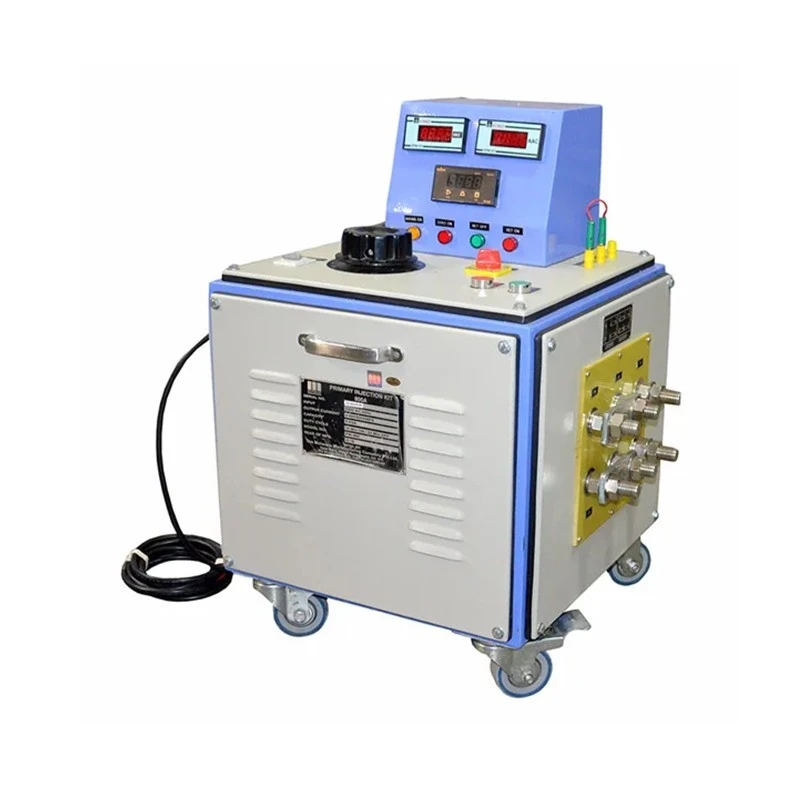

Motwane MOT-PIK1000 Primary Current Injection Kit
Specifications
| Country of Origin | India |
|---|---|
| Display | LED Seven segment type Digital Display |
| Brand | Motwane |
| Operating Temperature | 0-55°C / 5-90% RH Non Condensing |
| Operation Mode | Manual Motorized |
| Model | MOT-PIK1000 |
| Indication | Bright LED for Test ON and Power ON operation |
| Duty Cycle | 10 min On / 20 min Off |
| Timer | 0.0001 to 9999 sec Auto ranging / Digital timer |
| Output Current | 0-1000A |
| Unit | Combined control & loading unit |
| Mains Power Supply | 230Vac / 50/60Hz ±10% / Single Phase |
| Burden | 5KVA |
| Output Accuracy | ±1.5% of full scale reading ± 2 digits |
| Output Resolution | 1A |
| OCV @ full Voltage (V) | 5V |
| Timer Accuracy | ±0.05% ±2 counts |
| Protection & Safety | Protected by MCB & Fuse / Zero start interlock / Over current tripping |
| Standard Output Cables | 240 mm² (2X5) meters |
Key Features
- Variable output current
- High VA burden to test high impedance objects
- Digital timer for measuring tripping time
- Zero start interlock for safety
- Auto cutoff upon tripping relay
- Current range ( Low – 50% & High – 100% of full range )
- CT sec current measurement
- CT polarity detection
- Wheel mounted for easy transportation
Product Description
The MOTWANE made primary current injection MOT-PIK series is the most reliable & effective kit for testing & commissioning of protection system in electrical substation. The PIK series offer high output current upto 3000 Amps with relatively high burden up to 20kVA. It is designed with user friendly features to check operations of protection component system including Current transformer, Circuit Breaker, current sensor & relays etc. The Motwane PIK with high VA burden makes it possible to deliver desired current to high impedance object like Current transformer. It has optional feature to measure CT secondary current as well as polarity.
Application
The primary current injection method is usually the preferred method to verify the current sensors, wiring, and the current conduction path in the breaker. In order to identify sensor and wiring-related problems, it is recommended that the primary current injection test be conducted separately on each phase through current transformer which ensures that the sensors and wiring of the breaker are working proper.
The Primary current injection method is also useful for testing current transformer ratio. The secondary current of the transformer bears a known relationship with the primary current. Any change in the primary current is reflected in the secondary circuit. To verify the turns ratio and polarity tests on CT, current is injected on primary side of CT and measured at the secondary side for relaying and to ensure that they have the correct turn’s ratio and relaying accuracy.
High current injection (Primary current) is used and recommended during commissioning of protection systems. It is also recommended during major repairs and component replacement in power substations.
Motwane makes Primary Current Injection Kits are used to test Current Transformers, Circuit Breakers, Bus Bars, Relays, MCBs, MCCBs etc.
Standard Accessories
- Test Lead set : pair of cotton braided copper Cables with lugs at both end
- Mains Power Supply Cord
- Spare Fuse
- Short link
- Instruction manual
- Calibration certificate
- Warranty certificate
Optional Accessories
- C – clamp
- Interconnecting cables
Optional Features
- Measurement of CT sec current & Polarity
- Auxiliary variable AC/DC voltage 0-250V
- Measurement of Open Circuit Voltage of o/p current terminals
Available on EnvMart, these Primary Injection Test Sets are designed for high-precision testing of circuit breakers, current transformers, and protective relays. Motwane Primary Injection Test Sets ensure reliable performance verification, making them essential for power utilities, electrical maintenance, and industrial testing applications.
