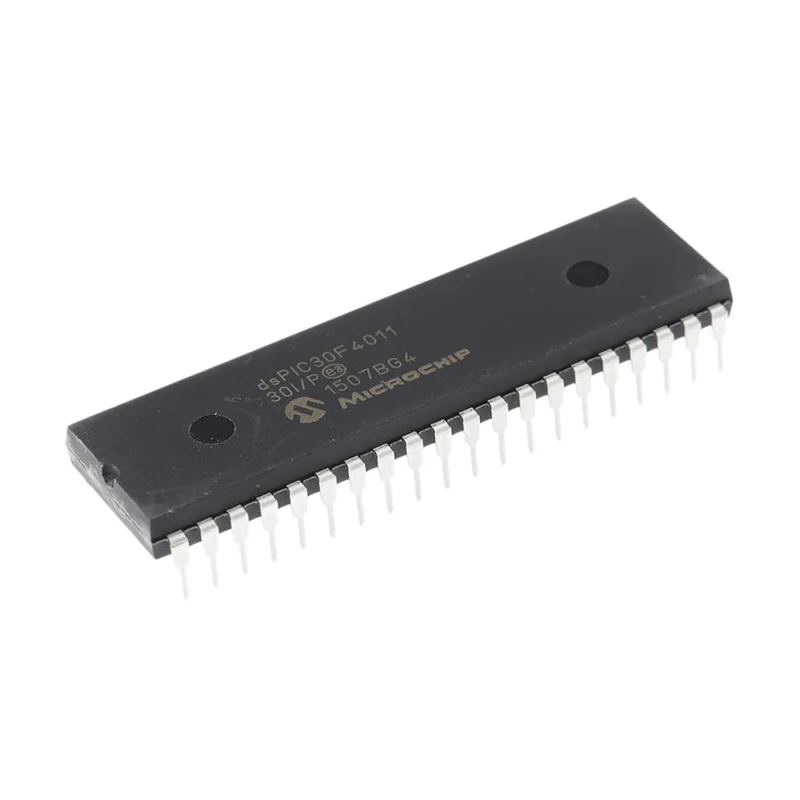

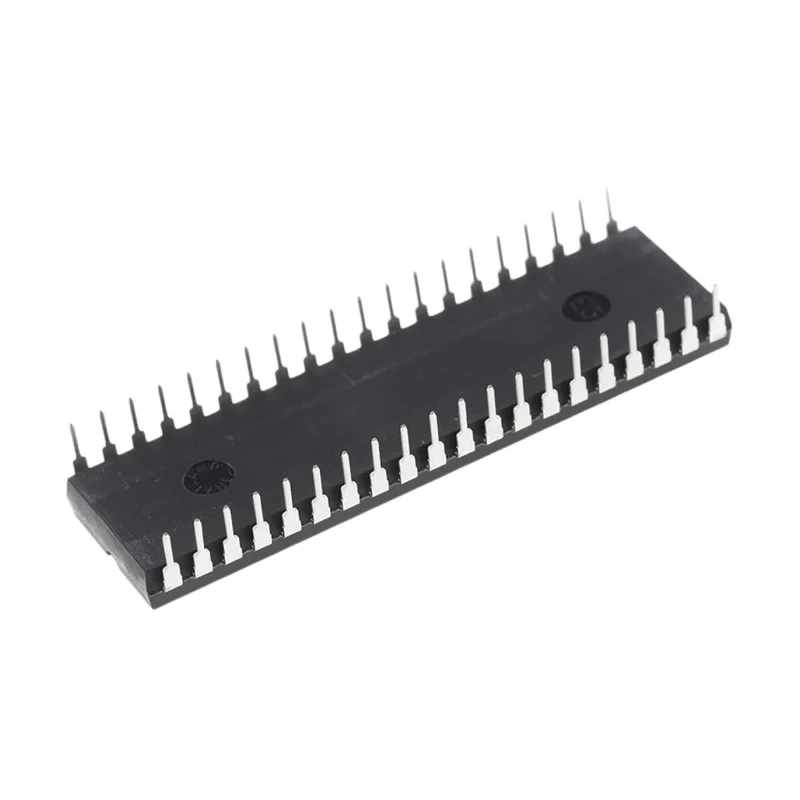

Microchip dsPIC30F 16 bit Digital Signal Processor 30 MIPS 48kB FLASH 40-Pin PDIP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 53.21mm |
| Model | dsPIC30F |
| Width | 14.5mm |
| Mount Type | Through Hole |
| Series | dsPIC30F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| ADC Resolution | 10bit |
| Timer Resolution | 16bit |
| Pin Count | 40 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Program Memory Size | 48kB |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 30MIPS |
| Number of PWM Units | 5 |
| PWM Resolution | 16bit |
| ADC Channels | 9 |
| Number of PWM Channels | 6 |
Key Features
- Operates at a maximum clock frequency of 30 MIPS for efficient data processing.
- Features a 16-bit data bus and RISC instruction set architecture.
- Includes 2kB RAM and 48kB FLASH program memory for embedded applications.
- Supports wide operating supply voltage from 2.5V to 5.5V.
- Offers 1 ADC with 10-bit resolution and 9 ADC channels for precise analog input conversion.
- Equipped with 6 PWM channels and 5 PWM units each with 16-bit resolution for motor control.
- Designed with a through-hole mount type and packaged in a 40-pin PDIP for easy PCB integration.
- Operates reliably under temperatures ranging from -40°C to 85°C.
Product Description
Microchip DSPIC30F4011-30I/P is a 16-bit digital signal processor delivering high performance at 30 MIPS and equipped with 48kB FLASH memory in a 40-pin PDIP form factor. This device blends the capabilities of a digital signal processor with the simplicity of a microcontroller, making it ideal for embedded control applications requiring fast computation and integrated peripherals.
The processor supports a wide operating voltage range of 2.5 to 5.5 volts, enabling flexible power supply design and low standby current operation. Featuring a 16-bit data bus and a RISC architecture, it provides efficient instruction execution and low power consumption. The integrated 2kB RAM and 48kB FLASH allow for ample program and data storage for complex algorithms.
To facilitate precise control and monitoring, the DSPIC30F includes one 10-bit ADC with nine analog input channels, alongside six PWM channels spread over five PWM units, each offering 16-bit resolution. This makes it suitable for advanced motor control, power management, audio processing, and digital power conversion.
The package type is a through-hole 40-pin PDIP, which eases PCB mounting and prototyping. The physical size measures 53.21 mm in length, 14.5 mm in width, and 4.95 mm in height, compatible with many embedded hardware designs. Operating temperature ranges from -40°C to 85°C ensure reliability in industrial and commercial environments.
The DSPIC30F series is optimized for applications involving digital power supplies, motor control, codec interfaces for speech and audio processing, and intelligent sensing systems. Its advanced peripherals and high computational performance enable engineers to develop efficient, compact, and scalable embedded solutions.
Operates at 30 MIPS with 16-bit data bus and RISC architecture. Equipped with 48kB FLASH program memory and 2kB RAM. Includes 1 ADC (10-bit resolution) with 9 channels. Supports 6 PWM channels across 5 PWM units with 16-bit resolution.
Wide supply voltage range from 2.5V to 5.5V with low standby current. Through-hole 40-pin PDIP package for easy integration. Operational temperature range from -40°C to 85°C. Dimensions of 53.21 x 14.5 x 4.95 mm. Suitable for motor control, speech/audio codec, and smart sensing applications.
Integrates SMPS peripherals and advanced motor control features. Explore more Microchip Digital Signal Processors and embedded solutions at EnvMart to optimize your industrial, commercial, or laboratory electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dsPIC30F operates at a maximum clock frequency of 30 MIPS, allowing for efficient data processing.
It supports a wide operating supply voltage range from 2.5V to 5.5V, providing flexibility in power supply design.
This model is equipped with 48kB of FLASH program memory for storing applications and algorithms.
The device includes one ADC with a 10-bit resolution and nine analog input channels for precise analog input conversion.
It features six PWM channels across five PWM units, each with a 16-bit resolution, suitable for motor control applications.
The physical dimensions of this unit are 53.21 mm in length, 14.5 mm in width, and 4.95 mm in height.
This model is designed with a through-hole mount type and packaged in a 40-pin PDIP for easy PCB integration.
The dsPIC30F operates reliably under temperatures ranging from -40°C to 85°C, making it suitable for various environments.
It utilizes a RISC instruction set architecture, which allows for efficient instruction execution and low power consumption.
This model includes 2kB of RAM for data storage and processing needs.
It is optimized for applications involving digital power supplies, motor control, codec interfaces for speech and audio processing, and intelligent sensing systems.
The device includes five timers, which can be utilized for various timing and control functions in embedded applications.
