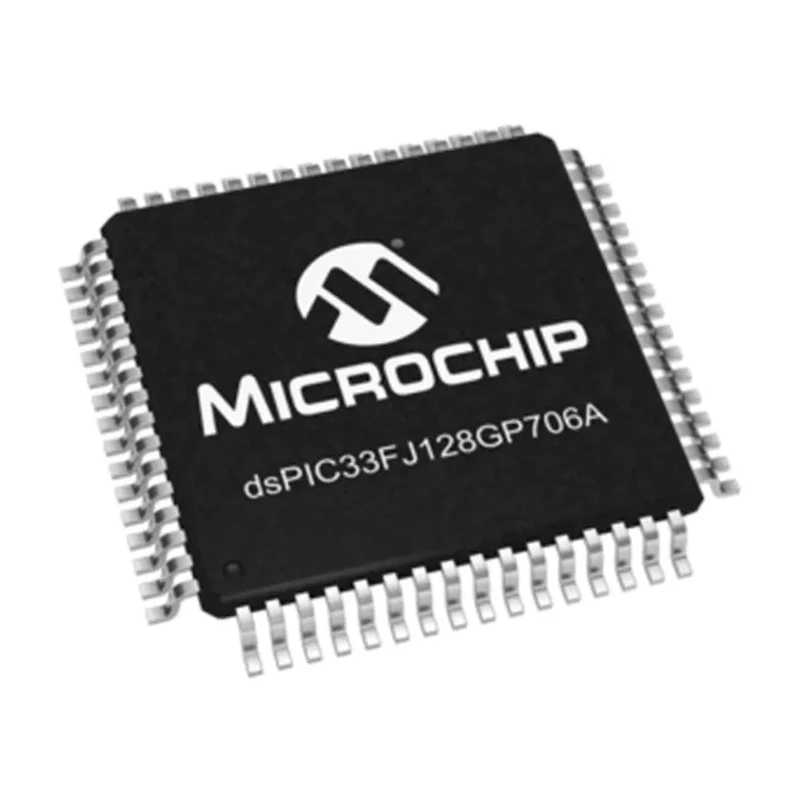

Microchip 16 bit Digital Signal Processor 40 MIPS 128kB FLASH 64-Pin TQFP dsPIC33FJ128GP706A-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | dsPIC33FJ128GP706A-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 16kB |
| ADC Resolution | 19bit |
| Timer Resolution | 16bit |
| Pin Count | 64 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Program Memory Size | 128kB |
| Number of Timers | 9 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 40MIPS |
| Number of PWM Units | 1 |
| PWM Resolution | 16bit |
| ADC Channels | 36 |
| Number of PWM Channels | 8 |
Key Features
- Operates at a maximum clock frequency of 40 MIPS with a 16-bit data bus width.
- Equipped with 16kB RAM and 128kB FLASH program memory for efficient processing and storage.
- Supports RISC instruction set architecture optimized for digital control and signal processing.
- Operates on supply voltage range between 3 V and 3.6 V with surface mount type packaging.
- Includes 1 ADC, 36 ADC channels with 19-bit resolution, and 8 PWM channels with 16-bit resolution.
- Features 9 timers and 1 PWM unit suitable for complex timing operations.
- Package dimensions are 10 mm x 10 mm x 1.05 mm in a 64-pin TQFP configuration.
- Operational temperature range spans from -40°C to 85°C suitable for automotive and industrial environments.
Product Description
Microchip dsPIC33FJ128GP706A-I/PT is a 16 bit Digital Signal Processor expertly engineered for high-speed precision control and signal processing applications. Featuring a powerful 40 MIPS performance and 128kB FLASH memory, this device excels at executing complex digital filter algorithms and digital audio processing tasks efficiently.
The processor supports a 16-bit data bus and incorporates 16kB of RAM alongside a RISC instruction set architecture. It operates reliably under a supply voltage from 3 V up to 3.6 V and is packaged in a compact 64-Pin TQFP with dimensions 10 mm in length and width, and a height of 1.05 mm.
With integrated peripherals including a single ADC with 36 channels and 19-bit resolution, and 8 PWM channels with 16-bit resolution, it supports advanced digital motor control and power supply designs. The inclusion of 9 timers and 1 PWM unit facilitates sophisticated timing and control functions needed in industrial and automotive systems.
The dsPIC33FJ128GP706A-I/PT operates across a wide temperature range from -40°C to 85°C and complies with the stringent AEC-Q100 automotive standard, underscoring its suitability for automotive and harsh industrial environments.
This digital signal processor is ideal for industries involving precision motor control systems, digital power supplies with SMPS peripherals, and audio processing applications, offering a blend of power, accuracy, and reliability.
Operates at up to 40 MIPS with 16-bit architecture. 128kB FLASH and 16kB RAM support high capacity programs. Equipped with advanced ADCs and PWM channels for complex control. Compact 64-pin TQFP surface mount package. Wide operating temperature and complies with automotive standards.
Explore more Microchip Digital Signal Processors and semiconductor solutions on EnvMart to enhance your electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this model is 40 MIPS.
It has a program memory size of 128kB FLASH.
This model supports 36 ADC channels with a resolution of 19 bits.
It operates on a supply voltage range between 3 V and 3.6 V.
The package dimensions are 10 mm x 10 mm x 1.05 mm in a 64-pin TQFP configuration.
This model includes 9 timers and 1 PWM unit for complex timing operations.
It operates within a temperature range from -40°C to 85°C, making it suitable for automotive and industrial environments.
It supports a RISC instruction set architecture optimized for digital control and signal processing.
This unit features 8 PWM channels with a resolution of 16 bits.
It complies with the AEC-Q100 automotive standard.
It has a RAM size of 16kB.
It features a surface mount type packaging.
