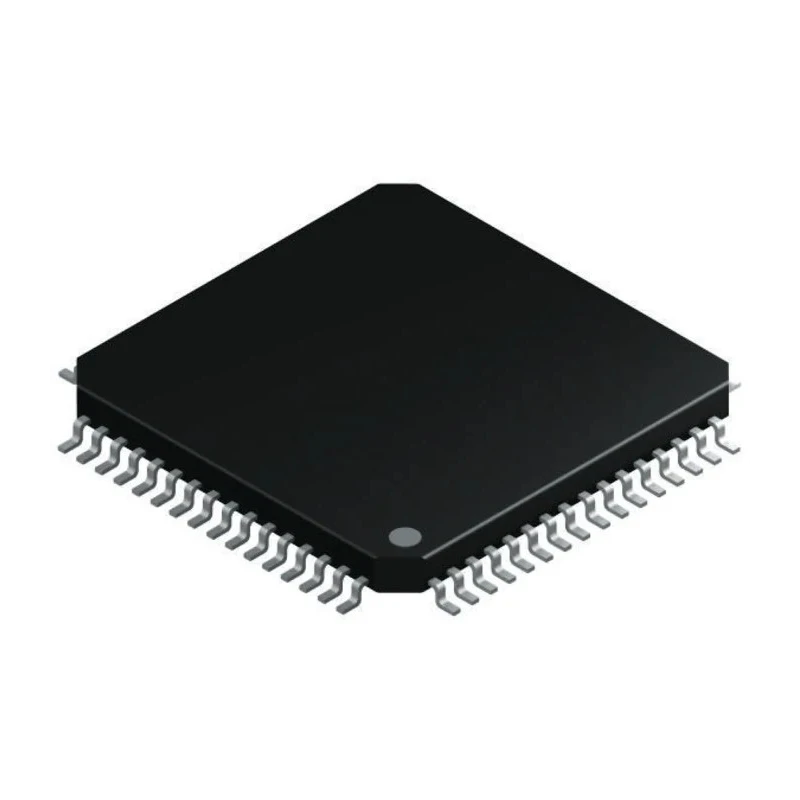

Microchip 16-Bit Digital Signal Processor, 40 MHz, 256kB Flash, 64-Pin TQFP DSPIC33FJ256GP506-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | DSPIC33FJ256GP506-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 16kB |
| ADC Resolution | 19bit |
| Timer Resolution | 16bit |
| Pin Count | 64 |
| Automotive Standard | AEC-Q100 |
| Minimum Supply Voltage | 3V |
| Program Memory Size | 256kB |
| Maximum Clock Frequency | 40MHz |
| Number of Timers | 9 |
| Instruction Set Architecture | Modified Harvard |
| Program Memory Type | FLASH |
| Device Million Instructions per Second | 70MIPS |
| Number of PWM Units | 1 |
| PWM Resolution | 16bit |
| ADC Channels | 18 |
Key Features
- High-performance 16-bit digital signal processor for demanding embedded applications.
- Operates at a maximum clock frequency of 40 MHz, providing fast processing and responsiveness.
- Features 256kB flash program memory and 16kB RAM for flexible data storage.
- Supports up to 70 MIPS with modified Harvard instruction set for efficient computation.
- Equipped with 18 ADC channels and 9 timers for advanced peripheral interfacing.
- Surface mount TQFP 64-pin package allows easy integration on PCBs.
- Wide operating temperature range from -40°C to +85°C for robust performance.
- Includes enhanced CAN, UART, SPI, I2C and multiple PWM units for communication and control.
Product Description
Microchip DSPIC33FJ256GP506-I/PT is an advanced 16-bit digital signal processor designed for high-performance embedded computing, control, and signal processing. It operates at a maximum clock frequency of 40 MHz, offering powerful capability to handle real-time applications across industrial, automotive, and commercial environments.
This DSP features 256kB of programmable flash memory, complemented by 16kB of RAM, enabling storage of complex routines and rapid access to operational data. With a modified Harvard instruction set optimized for C compiler use, the processor achieves up to 70 Million Instructions Per Second (MIPS), supporting efficient processing of digital signals, control algorithms and embedded tasks.
Its surface-mount TQFP package consists of 64 pins, allowing seamless integration in custom PCBs or production boards. The device’s data bus width is 16 bits, while program instructions are 24-bit wide for enhanced flexibility. It includes hardware features such as dual 40-bit accumulators, indirect addressing modes, software stack, and fractional/integer arithmetic operations.
The DSPIC33FJ256GP506-I/PT is equipped with extensive peripherals, including 18 analogue-to-digital converter channels with 19-bit ADC resolution, 9 timers with 16-bit timer resolution, programmable PWM units, multiple I2C, UART, and SPI modules, enabling diverse interface and control options. It supports enhanced CAN communication for automotive and industrial networks and complies with AEC-Q100 automotive standards.
The processor can operate reliably within a wide temperature range of -40°C to +85°C and requires a minimum 3V supply voltage, making it suitable for environments demanding durability and stability. The device’s versatile peripherals allow configuration of input capture, output compare, PWM, direct memory access, and advanced signal management.
Its compact 10 mm x 10 mm x 1.05 mm outline allows for space-saving system design. Overall, this Microchip DSP delivers robust performance for digital audio, motor control, instrumentation, robotics, industrial automation, medical devices, and communication systems where speed, precision, and connectivity are essential.
Explore more Digital Signal Processors on EnvMart and discover advanced embedded solutions from Microchip for industrial and commercial electronics.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this model is 40 MHz, allowing for fast processing capabilities in embedded applications.
It features 256kB of programmable flash memory, providing ample space for complex routines and operational data storage.
This processor includes 16kB of RAM, which supports flexible data storage for various applications.
The DSPIC33FJ256GP506-I/PT is equipped with 18 analogue-to-digital converter channels, each with 19-bit resolution.
It operates reliably within a wide temperature range of -40°C to +85°C, suitable for demanding environments.
The device comes in a surface mount TQFP package with 64 pins, facilitating easy integration into PCBs.
It uses a modified Harvard instruction set architecture, optimized for efficient computation and C compiler use.
This model includes 9 timers, each with a 16-bit resolution, allowing for advanced timing functions.
The minimum supply voltage required for this processor is 3V, ensuring compatibility with various power systems.
Yes, it complies with AEC-Q100 automotive standards, making it suitable for automotive applications.
It supports multiple communication interfaces including CAN, UART, SPI, and I2C, enhancing its connectivity options.
The dimensions of this unit are 10 mm x 10 mm x 1.05 mm, making it compact for space-saving designs.
