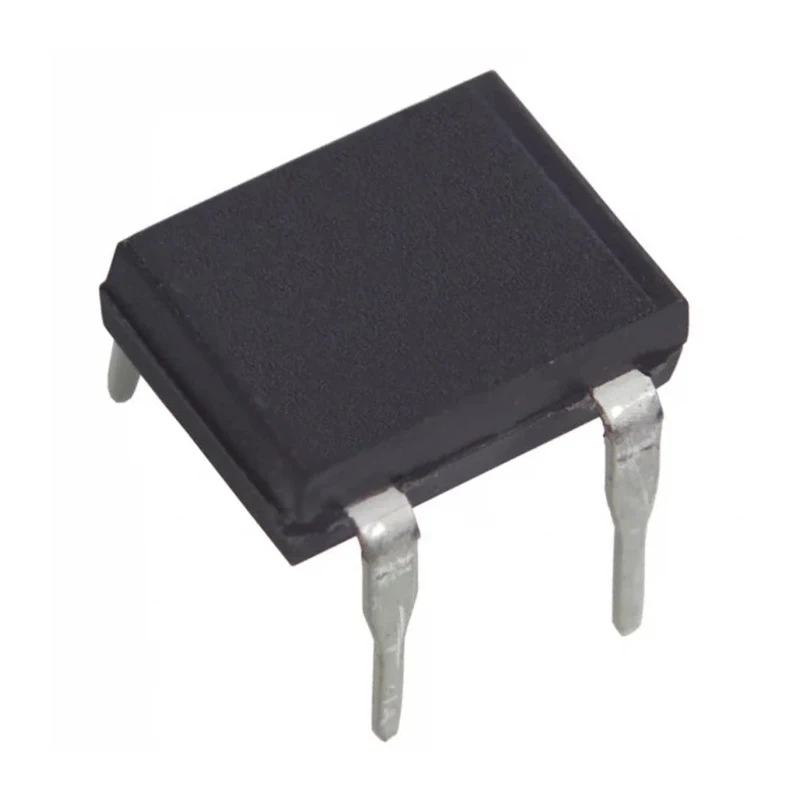

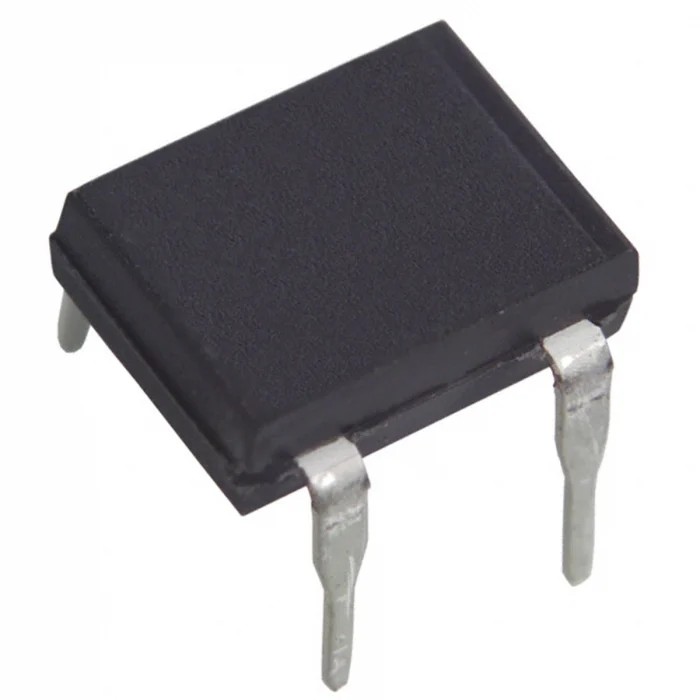

Vishay Bridge Rectifier 600 V 45 A Surface Mount DFM Package 4-Pin Single B380C800DM-E3/45

Vishay B380C800DM-E3/45 Bridge Rectifier is an ultrafast semiconductor device designed for converting alternating current (AC) input into direct current (DC) output, providing full-wave rectification for power applications. The bridge rectifier's single-phase configuration with 4 pins enables consistent polarity output regardless of input polarity, ensuring stable and efficient operation.

Housed in a compact DFM surface mount package, this rectifier offers high reliability and minimal size, suitable for use in printed circuit boards (PCB). The device features glass passivated die construction to enhance durability and withstand high surge currents, making it ideal for automated manufacturing processes.

Technical parameters include a peak reverse repetitive voltage of 600 V and a peak non-repetitive forward surge current of 45 A, ensuring robust performance under transient conditions. Forward current is rated at 900 mA with a peak forward voltage of 1 V, suitable for a wide range of industrial, electronic, and power supply applications. Operating temperature range extends from -40°C to 125°C, facilitating usability in diverse environments.

Physical dimensions of the rectifier measure 8.51 mm in length, 6.5 mm in width, and 3.3 mm in height, allowing integration in compact electronics. While it lacks automotive certification, it serves well in general semiconductor and power electronics applications. Originating from China, this product is a reliable choice for designers and engineers requiring a high-quality bridge rectifier.

Applications include industrial machinery, power conversion systems, electronics manufacturing, and automated PCB assembly lines. The device is compatible with standard PCB soldering pins designed for stable through-hole mounting.

Choose the Vishay B380C800DM-E3/45 for efficient and dependable AC to DC conversion with excellent thermal and surge current characteristics. Explore more Bridge Rectifier Modules and semiconductor components in the EnvMart Industrial Electronics category.

Suitable for surface mounting on printed circuit boards. Features a DFM package design for compact installation. Operates within a temperature range of -40°C to 125°C. Capable of peak forward surge current of 45 A. Forward current rating is 900 mA with a peak forward voltage of 1 V.

Designed with glass passivated die construction for enhanced reliability. High surge current capability ideal for automated placement. Compact dimensions with length 8.51 mm, width 6.5 mm, and height 3.3 mm. Originates from China with no automotive standard compliance.
