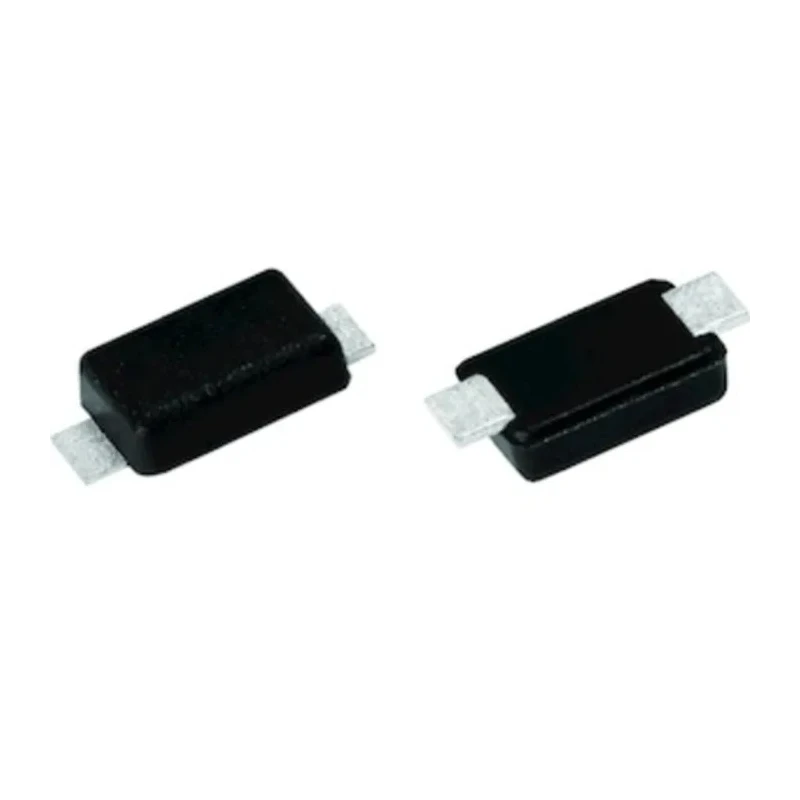

Vishay 200 V 1 A Schottky Diode Surface Mount DO-219AB V1F22-M3/H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.08mm |
| Length | 3.9mm |
| Model | V1F22-M3/H |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | V1X |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-219AB |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1.5mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 0.88V |
Key Features
- Surface mount diode with DO-219AB package for compact PCB footprint.
- Low forward voltage drop of 0.88 V to improve overall efficiency.
- Peak non-repetitive forward surge current of 30 A enables handling of short high current pulses.
- Operates reliably in temperature range from -40°C to 175°C for industrial and automotive conditions.
- Compliance with RoHS and AEC-Q101 automotive standards assures quality and environmental safety.
- Ideal for use in DC/DC converters, inverters, freewheeling, and polarity protection circuits.
- Single diode configuration with 2 pins for straightforward circuit integration.
- Originates from China manufacturing facilities under Vishay quality control.
Product Description
Vishay V1F22-M3/H is a high-performance Schottky diode characterized by a maximum continuous forward current of 1 A and a peak reverse repetitive voltage of 200 V. It features a surface mount design with the DO-219AB package, making it suitable for automated PCB assembly processes and compact electronic designs.
This diode offers a low forward voltage drop of 0.88 V, reducing power loss and heat generation in high-frequency switching applications such as DC/DC converters, inverters, and freewheeling circuits. The device can withstand peak non-repetitive forward surge currents up to 30 A, providing resilience against transient overloads.
Operating reliably between -40°C and +175°C, it meets demanding environmental and industrial requirements including compliance with RoHS directives and the AEC-Q101 automotive standard. The compact physical size (3.9 mm length, 1.9 mm width, and 1.08 mm height) supports integration into dense circuit layouts.
The single diode configuration with 2 pins simplifies design and mounting. Originating from Vishay's manufacturing facilities in China, this component ensures consistent quality suitable for commercial, industrial, and automotive electronic applications.
Surface mount DO-219AB package for automated assembly. Low forward voltage enhances energy efficiency and reduces losses. High surge current capacity supports transient conditions. Wide operating temperature range for robust performance.
Meets RoHS and AEC-Q101 standards for safety and automotive use. Compact dimensions support space-constrained designs. Single diode, 2-pin configuration for straightforward implementation. Suitable for DC/DC converters, inverters, and polarity protection.
Manufactured in China under Vishay quality assurance.
Designed for industrial, automotive, and commercial electronics, the Vishay V1F22-M3/H Schottky diode combines reliability and efficiency in a compact form factor. Explore more Schottky diodes and electronic components on EnvMart to support your engineering and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse repetitive voltage for this model is 200 V.
It has a maximum continuous forward current rating of 1 A.
The maximum forward voltage drop is 0.88 V.
This diode can handle a peak non-repetitive forward surge current of 30 A.
The dimensions of the DO-219AB package are 3.9 mm in length, 1.9 mm in width, and 1.08 mm in height.
The diode operates reliably within a temperature range of -40°C to 175°C.
It complies with RoHS and AEC-Q101 automotive standards.
This model features a surface mount design, suitable for automated PCB assembly.
It has a single diode configuration with 2 pins.
This diode is suitable for use in DC/DC converters, inverters, freewheeling, and polarity protection circuits.
The peak reverse current is 1.5 mA.
It is manufactured in China under Vishay's quality control.
