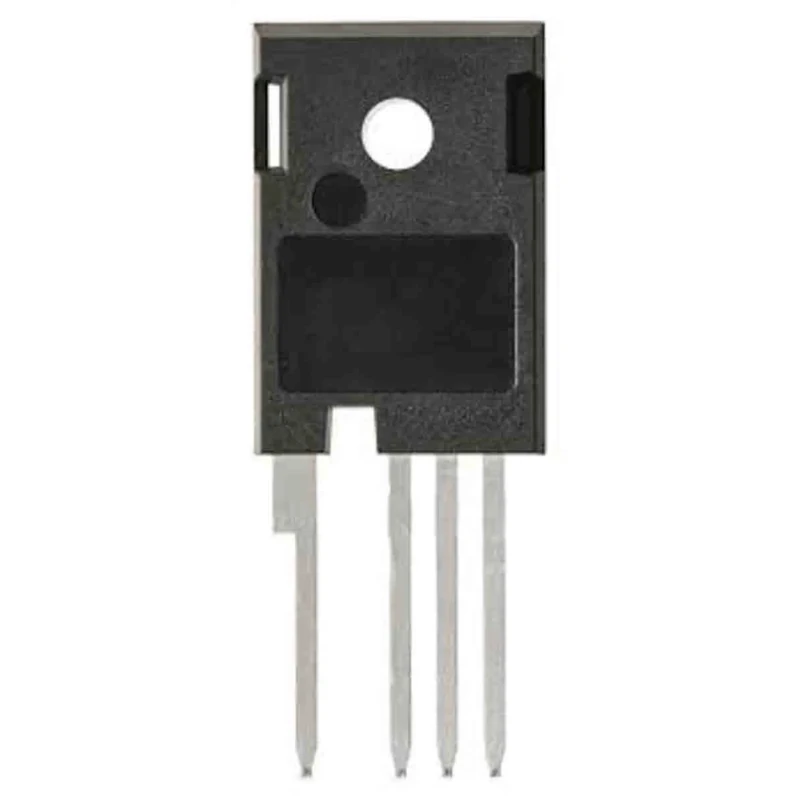

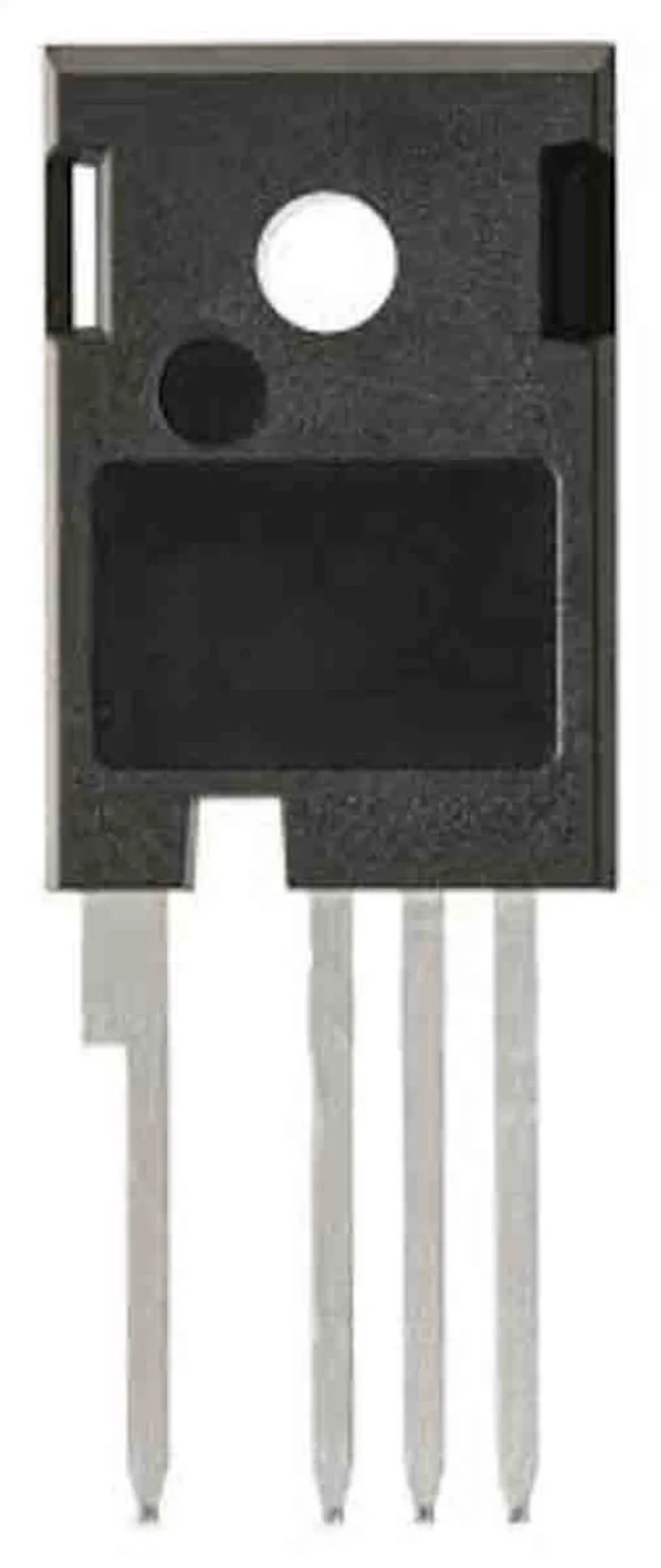

onsemi NVH N-Channel MOSFET 17.3A 1.2kV Enhancement 4-Pin TO-247 NVH4L160N120SC1
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 22.74mm |
| Length | 15.8mm |
| Model | NVH4L160N120SC1 |
| Width | 5.2mm |
| Mount Type | Through Hole |
| Series | NVH |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101 and PPAP Capable |
| Pin Count | 4 |
| Automotive Standard | AEC-Q101 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 17.3A |
| Maximum Drain Source Voltage Vds | 1.2kV |
| Maximum Drain Source Resistance Rds | 160mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 111W |
| Typical Gate Charge Qg @ Vgs | 34nC |
| Maximum Gate Source Voltage Vgs | 25V |
| Forward Voltage Vf | 4V |
Key Features
- High continuous drain current rating of 17.3 A for robust performance.
- Maximum drain-source voltage of 1.2 kV suitable for high-voltage applications.
- Packaged in a 4-Pin TO-247 through-hole mount for easy integration.
- Low gate charge of 34 nC at typical gate-source voltage enhances switching speed.
- Maximum power dissipation of 111 W supports high power handling.
- Wide operating temperature range from -55°C to 175°C for reliability.
- RoHS compliant and AEC-Q101 qualified for automotive applications.
- Low drain-source resistance of 160 mΩ for efficient conduction.
Product Description
onsemi NVH4L160N120SC1 is a Silicon Carbide (SiC) N-Channel MOSFET designed for high-performance power switching applications. This enhancement mode device operates at a maximum drain-source voltage of 1.2 kV and continuous drain current of 17.3 A, making it suitable for demanding applications such as automotive on-board chargers, DC-DC converters, and industrial power control systems.
The device is housed in a 4-pin TO-247 package suitable for through-hole mount configurations, enabling straightforward PCB assembly and effective thermal management. Featuring a low gate charge of 34 nC at 25 V gate-source voltage, it enables efficient switching with reduced gate drive losses.
It can dissipate up to 111 W of power and operates reliably across a wide temperature range from -55°C to 175°C, ensuring robustness in harsh environments. The device complies with automotive standard AEC-Q101 and is PPAP capable, affirming its quality and reliability for automotive use cases.
Additional features include low drain-source resistance of 160 mΩ for efficient conduction, forward voltage of 4 V, and high maximum gate-source voltage rating of 25 V. The compact dimensions of 22.74 mm height, 15.8 mm length, and 5.2 mm width facilitate its integration into space-constrained designs.
This MOSFET is 100% avalanche tested, ensuring device ruggedness against transient voltage spikes. It is RoHS compliant, promoting environmentally responsible manufacturing. High continuous drain current of 17.3 A enables powerful switching applications.
Robust 1.2 kV drain-source voltage rating for demanding environments. 4-Pin TO-247 through-hole package for ease of mounting. Low gate charge improves switching efficiency and reduces losses. Wide temperature operating range supports automotive and industrial uses.
Meets automotive standards with AEC-Q101 qualification. Compact physical dimensions optimize PCB space. High maximum power dissipation ensures thermal robustness.
Ideal for industrial, automotive, and high reliability power electronics applications, the onsemi NVH4L160N120SC1 provides a reliable and efficient solution for power conversion and control. Browse more power semiconductors and MOSFETs on EnvMart for your next design integration.
Explore more products in our Power MOSFET category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current rating is 17.3 A, suitable for robust performance in power applications.
It has a maximum drain-source voltage of 1.2 kV, making it suitable for high-voltage applications.
The dimensions are 22.74 mm in height, 15.8 mm in length, and 5.2 mm in width.
This model is packaged in a 4-Pin TO-247 configuration, designed for through-hole mounting.
It can dissipate up to 111 W of power, supporting high power handling requirements.
The operating temperature range is from -55°C to 175°C, ensuring reliability in various environments.
The typical gate charge is 34 nC, enhancing switching speed and efficiency.
It is AEC-Q101 qualified and PPAP capable, affirming its quality for automotive applications.
The maximum gate-source voltage rating is 25 V, allowing for compatibility with various gate drive circuits.
The drain-source resistance is 160 mΩ, which contributes to efficient conduction.
It is suitable for applications such as automotive on-board chargers, DC-DC converters, and industrial power control systems.
The country of origin for this MOSFET is India.
