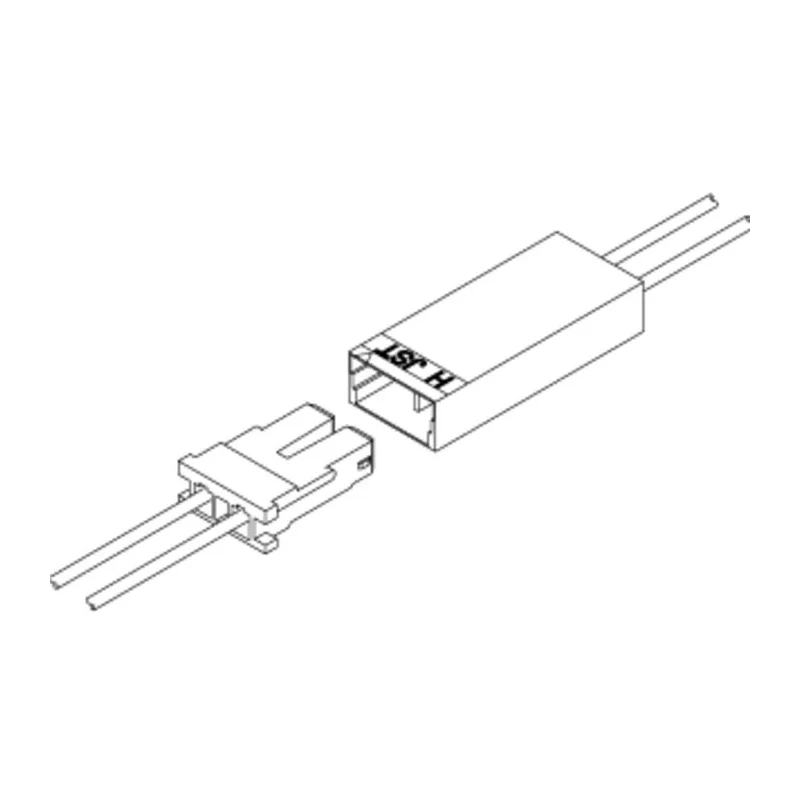

JST SBHSM Series Male Crimp Terminal 1A Current, 28 AWG Min, 24 AWG Max, Tin Plated Phosphor Bronze Contacts SBHSM-002T-P0.5

Free Delivery in India | Lowest Global Shipping Charges

JST SBHSM Series Male Crimp Terminal 1A Current, 28 AWG Min, 24 AWG Max, Tin Plated Phosphor Bronze Contacts SBHSM-002T-P0.5



Category Crimp Terminal Brand JST Condition New

Specifications

Country of Origin	India
Brand	JST
Current	1A
Model	SBHSM-002T-P0.5
Gender	Male
Contact Material	Phosphor Bronze
Series	SBHSM
Termination Type	Crimp
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
For Use With	BHS and BHT Connector Housings
Contact Plating	Tin
Minimum Wire Size mm²	0.08mm²
Maximum Wire Size mm²	0.22mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	24AWG

Key Features

Rated for a continuous current of 1 ampere.
Termination type is crimp for secure wire attachment.
Suitable for use with BHS and BHT connector housings.
Operates reliably in temperatures ranging from -25°C to 85°C.
Constructed with tin plating for corrosion resistance and phosphor bronze contacts for durability.
Designed primarily for connecting LCD backlight lamp wires to starters.
Compact and high-voltage applicable male connector.
Ensures consistent electrical contact and mechanical stability.

Product Description

JST SBHSM-002T-P0.5 is a male crimp terminal designed for wire sizes between 28 AWG minimum and 24 AWG maximum, made to ensure secure and reliable electrical connections in electronics applications. It is constructed with tin-plated phosphor bronze contacts that offer excellent conductivity and corrosion resistance.

This crimp terminal is rated for a current of 1 ampere, suitable for low-current circuit requirements. The termination type is crimp, providing strong mechanical retention and electrical contact with the wire.

The operating temperature range of this terminal spans from -25°C to 85°C, allowing it to perform effectively in various environmental conditions. It is compatible with BHS and BHT connector housings, making it versatile for wire-to-wire connections especially in display backlight starter circuits.

Compact in design, the SBHSM series terminals ensure minimal footprint on PCBs and connector assemblies. The tin plating on the contacts enhances protection against oxidation and extends the terminal's service life.

Rated current of 1A for safe electrical operation. Crimp termination ensures reliable wire attachment. Compatible with BHS and BHT connector housings. Temperature tolerance from -25°C to 85°C for broad application scope.

Phosphor bronze contact material ensures durability and conductivity. Tinned plating protects against corrosion. Ideal for connecting LCD backlight lamp wires to starters. Compact male connector design.

This product is ideal for use in electronic assemblies requiring durable, corrosion-resistant wire terminations in compact spaces, prevalent in industrial electronics, consumer electronics, and display manufacturing. With its robust mechanical and electrical characteristics, this Crimp Terminal contributes to system reliability and longevity.
