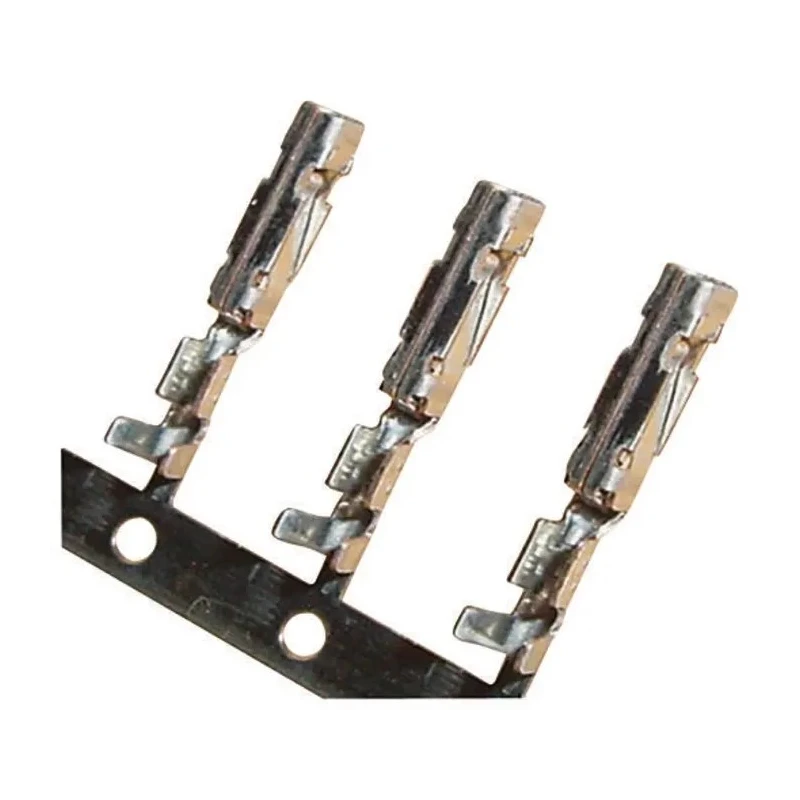

Wurth Elektronik 485 Series Female Crimp Terminal, Gold Plating, 28 - 22 AWG, 3A, Phosphor Bronze, Crimp, 16.8mm 66110113723
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Current | 3A |
| Length | 16.8mm |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 485 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| For Use With | 485 3248 and 485 3401 Connector Housing |
| Standards/Approvals | HE13, HE14, IEC 603-8 |
| Contact Plating | Gold |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Female crimp terminal suitable for PCB connectors and wire housings.
- Compatible with 485 3248 and 485 3401 connector housing.
- Supports minimum wire size of 28AWG and maximum of 22AWG.
- Current rating up to 3A for robust electrical performance.
- Gold plated phosphor bronze contact for improved conductivity and durability.
- Crimp termination ensures secure mechanical and electrical connection.
- Maximum contact resistance of 20mΩ for reliable operation.
- Operating temperature range from -55°C to +125°C.
Product Description
The Wurth Elektronik 66110113723 is a female crimp terminal from the 485 Series, engineered for secure connection in PCB connector and wire housing systems. It is designed to meet stringent industrial requirements and ensures reliable contact and electrical performance.
This terminal is compatible with 485 3248 and 485 3401 connector housing, making it ideal for board-to-board or board-to-wire applications. The gold plating on the phosphor bronze contact offers enhanced conductivity and corrosion resistance, supporting a maximum current load of 3A. The terminal accommodates wire sizes ranging from 28AWG to 22AWG, which covers a typical range for signal and power wiring in electronics.
A crimp termination allows easy installation and provides a secure mechanical fit, essential for minimizing potential contact failures due to vibration or handling. The maximum contact resistance is limited to 20mΩ, helping maintain a stable electrical connection across demanding use cases. The operating temperature range of -55°C to +125°C ensures suitability in environments from standard labs and commercial electronics to industrial equipment and control panels.
Measuring 16.8mm in length, this terminal complies with HE13, HE14, and IEC 603-8 standards, which are widely recognized within connector engineering. It is constructed from phosphor bronze - a material valued for its durability and reliability in repeated use and mechanical retention.
Common areas of application include electronic assemblies, PCB connectors, wire harness manufacturing, industrial automation, and commercial electronics production. It is used anywhere a compact, long-life, and high-quality female contact is required for secure crimped connections.
By choosing the Wurth Elektronik 485 Series Female Crimp Terminal, engineers and manufacturers can ensure robust electrical interfacing, consistent quality, and compliance with international standards. Explore the full range of Crimp Terminals and connector solutions from Wurth Elektronik in the EnvMart Electronics Components section for reliable product integration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This female crimp terminal has a current rating of up to 3A, making it suitable for various electrical applications.
It supports wire sizes ranging from a minimum of 28 AWG to a maximum of 22 AWG, which is typical for signal and power wiring in electronics.
The maximum contact resistance for this terminal is limited to 20mΩ, ensuring reliable electrical performance.
The operating temperature range is from -55°C to +125°C, allowing it to function in a variety of environments.
This terminal is compatible with 485 3248 and 485 3401 connector housings, making it versatile for different applications.
The contact is made from phosphor bronze, which is known for its durability and reliability in electrical connections.
It uses a crimp termination type, which provides a secure mechanical and electrical connection.
The terminal measures 16.8mm in length, making it compact for various electronic applications.
It complies with HE13, HE14, and IEC 603-8 standards, which are recognized in connector engineering.
Common applications include electronic assemblies, PCB connectors, wire harness manufacturing, and industrial automation.
The gold plating on the contact enhances conductivity and corrosion resistance, improving overall performance.
This terminal is manufactured in India, adhering to specific industrial standards.
