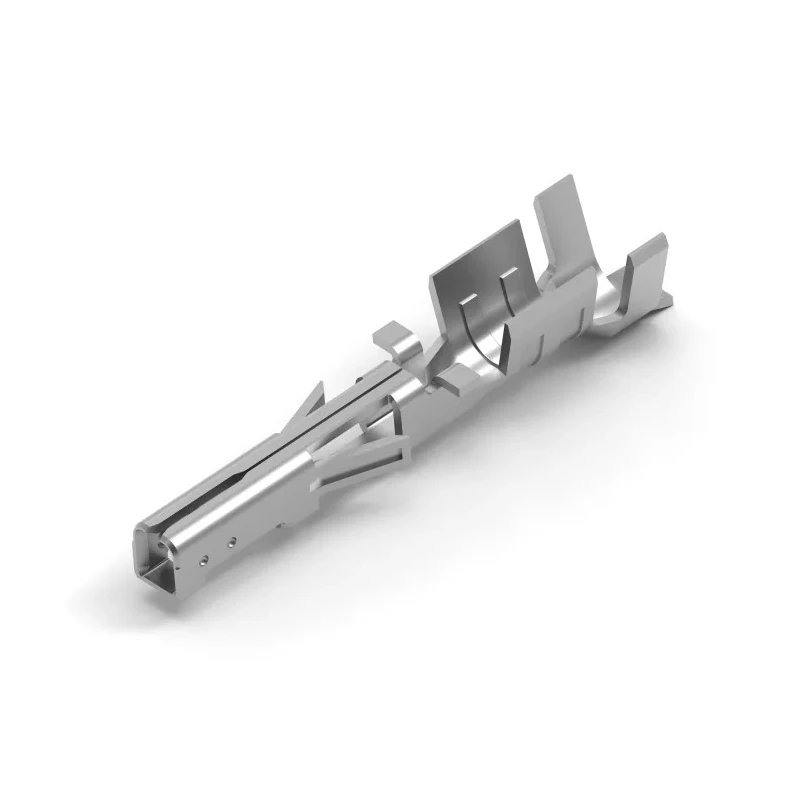

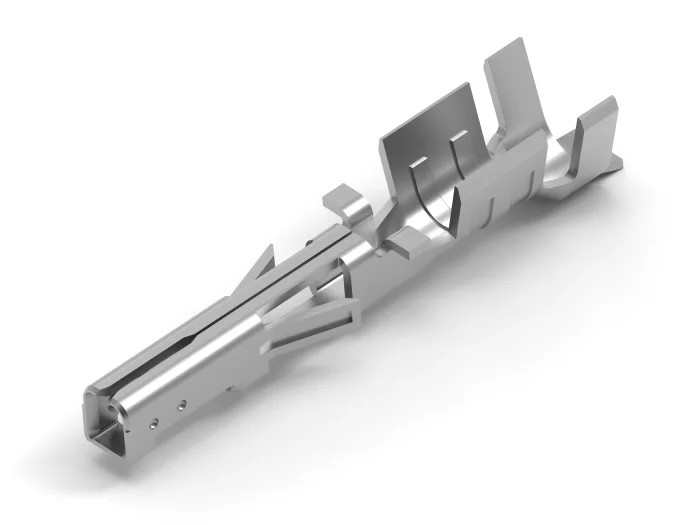

TE Connectivity ELCON Micro Insulated Crimp Receptacle Gold over Tin 30 AWG to 16 AWG 1-2204749-8
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Material | Tin |
| Insulation | Insulated |
| Contact Material | Copper Alloy |
| Series | ELCON Micro |
| Standards/Approvals | UL 94 V-0 |
| Contact Plating | Gold over Tin |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 16AWG |
Key Features
- Designed for reliable connectivity with micro receptacle configuration.
- Accommodates wire sizes from 30 AWG up to 16 AWG, supporting diverse installation requirements.
- Contains gold over tin contact plating for enhanced conductivity and corrosion resistance.
- Features copper alloy contact material for robust electrical performance.
- Insulated body for safety and compliance with UL 94 V-0 standards.
- Suitable for use in electronics, control panels and power connector systems.
- UL 94 V-0 rated for flammability resistance, supporting industrial environments.
Product Description
TE Connectivity 1-2204749-8 ELCON Micro Insulated Crimp Receptacle is engineered to deliver dependable wiring connections in a compact footprint. Optimized for electronic, industrial, and power connector applications, this crimp receptacle is suitable for micro wiring configurations using wire sizes from 30 AWG to 16 AWG. The insulated design protects connections and ensures compliance with high safety standards for demanding environments.
This crimp receptacle utilizes a gold over tin contact plating, which increases conductivity and resists corrosion, prolonging service life in operational circuits. The copper alloy contact material further supports robust electrical transmission and consistent performance under varying load conditions. Its micro footprint is ideal for densely packed electronic assemblies and power distribution boards.
The ELCON Micro series offers excellent flexibility for wiring configurations across industrial automation, electronics manufacturing, control panels, and custom cable assemblies. Compliance with UL 94 V-0 flammability standards ensures dependable performance when safety is paramount. The insulated body provides additional reliability by preventing shorts and minimizing accidental contact in wiring hubs.
Installation is facilitated by compatibility with crimping tools and wire sizes typically found in precision applications. The product supports efficient and reliable termination within signal, control, and power circuits. It is especially suited for high-density interconnects, compact control systems, and electronic devices that require secure wire-to-board or wire-to-wire connections.
Product origin is China, and each item is backed by imported quality assurance. This crimp receptacle is an essential component for electrical designers, industrial engineers, and automation specialists seeking dependable connectivity solutions. Suitable for applications in electronics, industrial machinery, instrumentation, and HVAC control boards.
Browse more TE Connectivity products and Crimp Terminals within EnvMart's industrial electronics catalog for comprehensive wiring and connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp receptacle accommodates wire sizes from 30 AWG to 16 AWG, making it versatile for various wiring configurations.
The crimp receptacle features a copper alloy contact material and has gold over tin contact plating for enhanced conductivity and corrosion resistance.
It complies with UL 94 V-0 standards for flammability resistance, ensuring safety in demanding environments.
Yes, the crimp receptacle has an insulated body, which enhances safety by preventing shorts and minimizing accidental contact.
The crimp receptacle is manufactured in China, backed by imported quality assurance.
It is suitable for use in electronics, control panels, and power connector systems, particularly in high-density interconnects and compact control systems.
This crimp receptacle is compatible with standard crimping tools designed for the specified wire sizes, facilitating efficient installation.
The contact plating of this model is gold over tin, which improves conductivity and helps resist corrosion.
The UL 94 V-0 rating indicates that the insulated body of the crimp receptacle meets stringent flammability resistance standards, enhancing safety in industrial applications.
This crimp receptacle belongs to the ELCON Micro series, which is designed for compact wiring configurations.
The primary function of this crimp receptacle is to provide reliable electrical connections in various applications, including signal, control, and power circuits.
The contact material used in this crimp receptacle is a copper alloy, which supports robust electrical performance.
