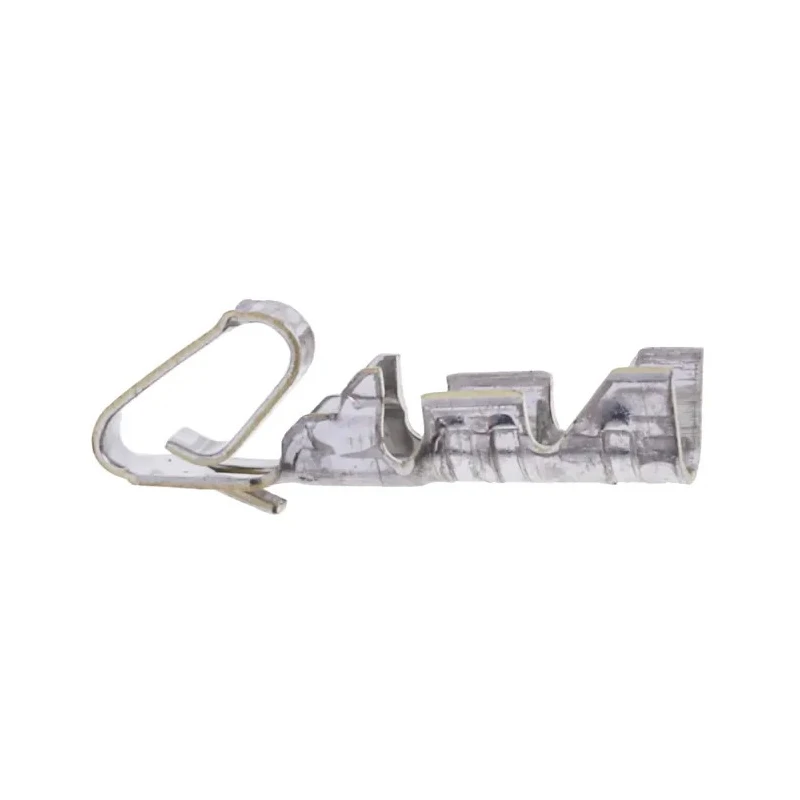

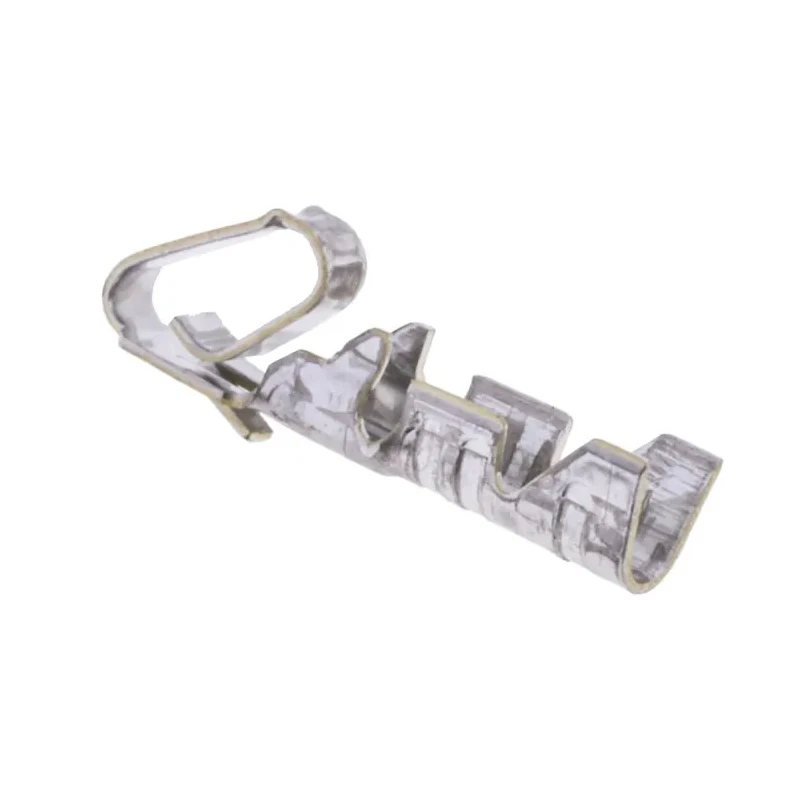

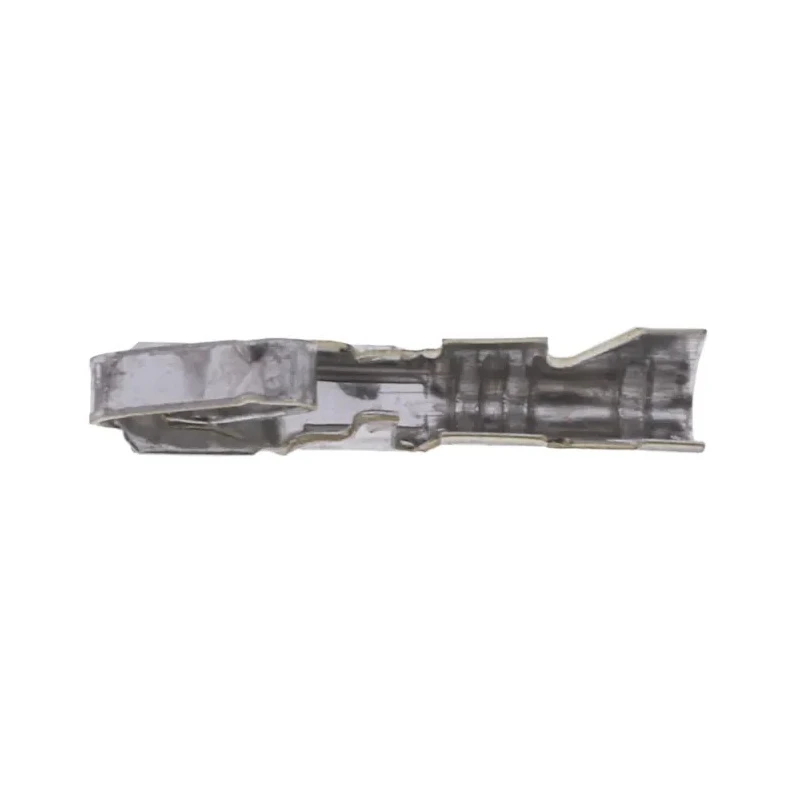

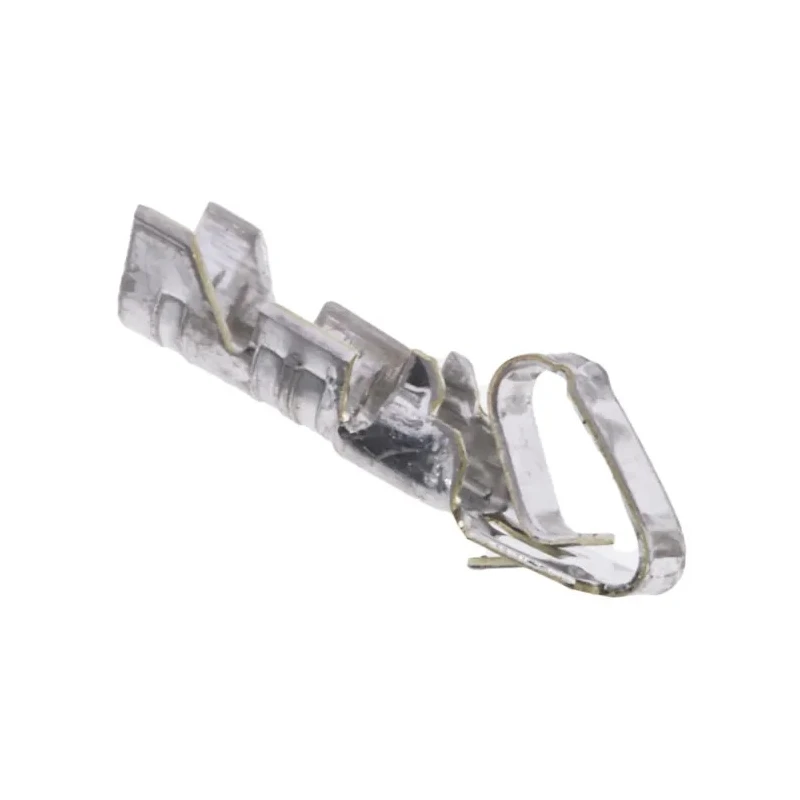

Molex Female Crimp Terminal 4809 Series, 2.5A, 30 - 22 AWG, Tin Plated Brass, KK 254 Connector, 08-50-0032
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Current | 2.5A |
| Gender | Female |
| Contact Material | Brass |
| Series | 4809 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| For Use With | KK 254 and KK Connector Housings |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Female crimp terminal contact suitable for KK 254 and KK Connector Housings.
- Accommodates broad wire sizes from 30 AWG minimum to 22 AWG maximum.
- Made from durable brass material and plated with highly conductive tin.
- Supports up to 2.5A current for reliable signal and power transmission.
- Maximum contact resistance of 20 milliohms for efficient connections.
- Crimp termination design ensures air-tight, corrosion-resistant joins.
- Operating temperature range from -40°C to 80°C for versatility.
- Compatible with Molex KK interconnect system components.
Product Description
The Molex 08-50-0032 Female Crimp Terminal from the 4809 Series is designed for efficient board-to-board and wire-to-board connections in PCB assemblies. Engineered for KK 254 and KK Connector Housings, it delivers secure, reliable crimp terminations in demanding environments.
This terminal accepts wire sizes ranging from 30 AWG minimum to 22 AWG maximum, offering flexibility for various applications. Constructed from robust brass alloy and finished with highly conductive tin plating, it ensures excellent electrical performance and corrosion resistance.
Capable of handling currents up to 2.5A, the terminal maintains a maximum contact resistance of 20 milliohms to prevent signal drop and voltage loss. The crimp termination forms air-tight, moisture-proof joins, suitable for use in environments exposed to dust, dirt, and harsh industrial conditions.
The Molex KK interconnect system is renowned for its versatility in signal and power applications; the 08-50-0032 terminal is fully compatible with the system’s connector housings. Typical applications include interior automotive lighting, fire alarms, gaming devices, home security, white goods, and data communications.
Installation requires an appropriate crimp tool for reliable terminations. The product supports a temperature range from -40°C to 80°C, ensuring adaptability across diverse industrial and commercial scenarios.
Female crimp contact suitable for KK 254 and KK Connector Housings. Wire sizes supported: 30 AWG min, 22 AWG max. Current rating: 2.5A maximum. Tin plated brass contact for conductivity and durability. Low maximum contact resistance (20mΩ) for efficient transmission.
Crimp termination guarantees resistant and robust connections. Operating temperature range: -40°C to 80°C. Applications include automotive, security, gaming, and consumer electronics. Explore more Molex Crimp Terminals and connector solutions on EnvMart for demanding board and wire interconnect needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 2.5A, ensuring reliable signal and power transmission.
It accommodates wire sizes ranging from 30 AWG minimum to 22 AWG maximum, providing flexibility for various applications.
The terminal is made from brass and is plated with tin, which enhances its conductivity and corrosion resistance.
The maximum contact resistance is 20 milliohms, which helps prevent signal drop and voltage loss.
This crimp terminal is designed for use with KK 254 and KK Connector Housings, ensuring secure connections.
It utilizes a crimp termination design, which ensures air-tight and moisture-proof connections.
Typical applications include interior automotive lighting, fire alarms, gaming devices, home security, and data communications.
The minimum wire size it can accommodate is 0.05 mm², allowing for a range of wire gauges.
The tin plating enhances the terminal's conductivity and provides corrosion resistance, which is essential for reliable connections.
The country of origin for this terminal is China, indicating its manufacturing location.
