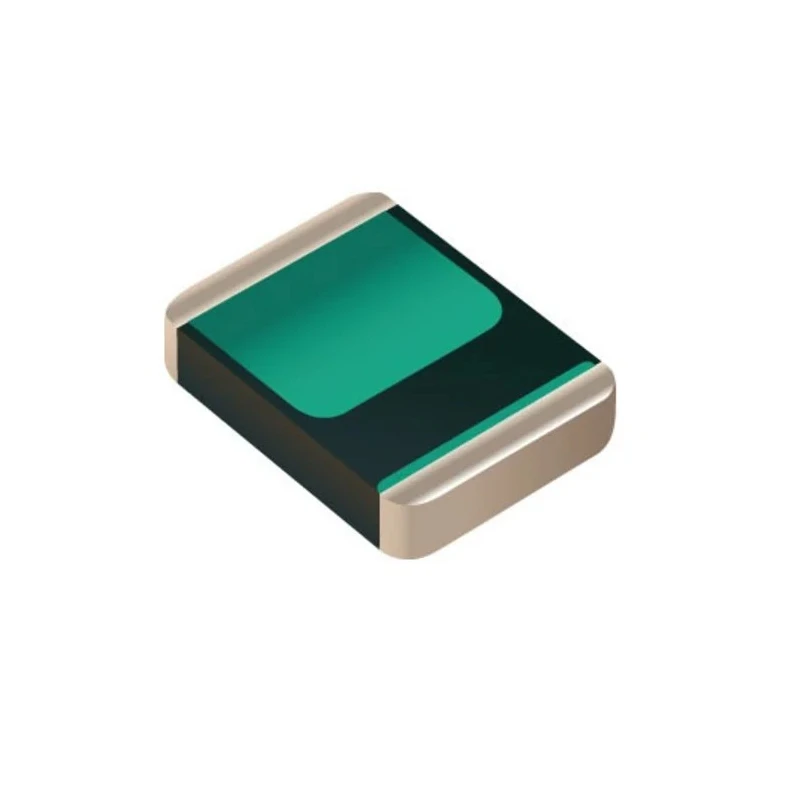

Bourns Medium Voltage DV Series Surface Mount Varistor 1.9 nF, 5 A Clamping Current, 77 V Clamping Voltage, 39 V DV25K4032R2
Specifications
| Country of Origin | Slovenia |
|---|---|
| Brand | Bourns |
| Material | Metal |
| THICKNESS | 2mm |
| Length | 8mm |
| Model | DV25K4032R2 |
| Depth | 2mm |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | DV |
| Energy Rating | 2.4J |
| Maximum Operating Temperature | 125°C |
| Capacitance | 1.9nF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 31V dc |
| Standards/Approvals | RoHS |
| Package/Case | 4032 |
| Termination Style | Surface Mount |
| Maximum AC Voltage | 25V ac |
| Clamping Voltage VC | 77V |
| Clamping Current | 5A |
| Maximum Surge Current | 250A |
| Varistor Voltage | 39 V |
Key Features
- Designed for surface mounting in 4032 package size.
- Capable of handling maximum surge current of 250 A.
- Operates between -40°C and 125°C ambient temperatures.
- Provides transient voltage suppression for electronic equipment.
- RoHS compliant with metal material body.
- Offers low profile and zero inductance leadless chip form.
- Energy rating of 2.4 Joules for surge absorption.
- Suitable for automatic pick-and-place with tape and reel packaging.
Product Description
Bourns DV25K4032R2 medium voltage DV series varistor is a surface mount device designed to protect electronic equipment from high voltage transient surges. It features a capacitance of 1.9 nF, a clamping current of 5 A, and a clamping voltage of 77 V with a nominal varistor voltage of 39 V. The varistor operates within an ambient temperature range of -40°C to 125°C, ensuring reliable performance in demanding industrial and electronic applications.
This varistor is built with metal material and housed in a compact 4032 package case with a thickness and depth of 2 mm each, making it suitable for dense surface mount assemblies. It can withstand a maximum surge current of 250 A and offers an energy rating of 2.4 Joules, effectively suppressing transient voltage spikes and enhancing the longevity and stability of protected circuits.
Designed for automatic pick-and-place assembly, the product is supplied in tape and reel packaging, promoting efficient manufacturing processes. Its leadless chip construction reduces parasitic inductance, thereby enabling extremely fast response times to transient voltage events. The device complies with RoHS standards, ensuring it is free from hazardous substances.
Bourns DV series varistors cover operating voltages from 11 V to 300 V and are widely used in industrial, power distribution, communication, and consumer electronics for surge protection. This product’s robust construction and performance characteristics make it suitable for harsh environments and applications requiring durable transient suppressors.
Designed for surface mounting in 4032 package size. Capable of handling maximum surge current of 250 A. Operates between -40°C and 125°C ambient temperatures. Provides transient voltage suppression for electronic equipment.
RoHS compliant with metal material body. Offers low profile and zero inductance leadless chip form. Energy rating of 2.4 Joules for surge absorption. Suitable for automatic pick-and-place with tape and reel packaging. Manufactured in Slovenia, ensuring quality assurance.
Explore more Bourns surge protection components and Varistors at EnvMart for industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping voltage of this varistor is 77 V.
It can handle a maximum surge current of 250 A.
The capacitance value of this model is 1.9 nF.
This varistor operates within an ambient temperature range of -40°C to 125°C.
It is constructed with a metal material body.
The energy rating for surge absorption is 2.4 Joules.
The dimensions of the 4032 package are 8 mm in length, and 2 mm in both thickness and depth.
The termination style of this varistor is surface mount.
Yes, this varistor is RoHS compliant, ensuring it is free from hazardous substances.
It is supplied in tape and reel packaging, suitable for automatic pick-and-place assembly.
The nominal varistor voltage of this device is 39 V.
This varistor is manufactured in Slovenia.
