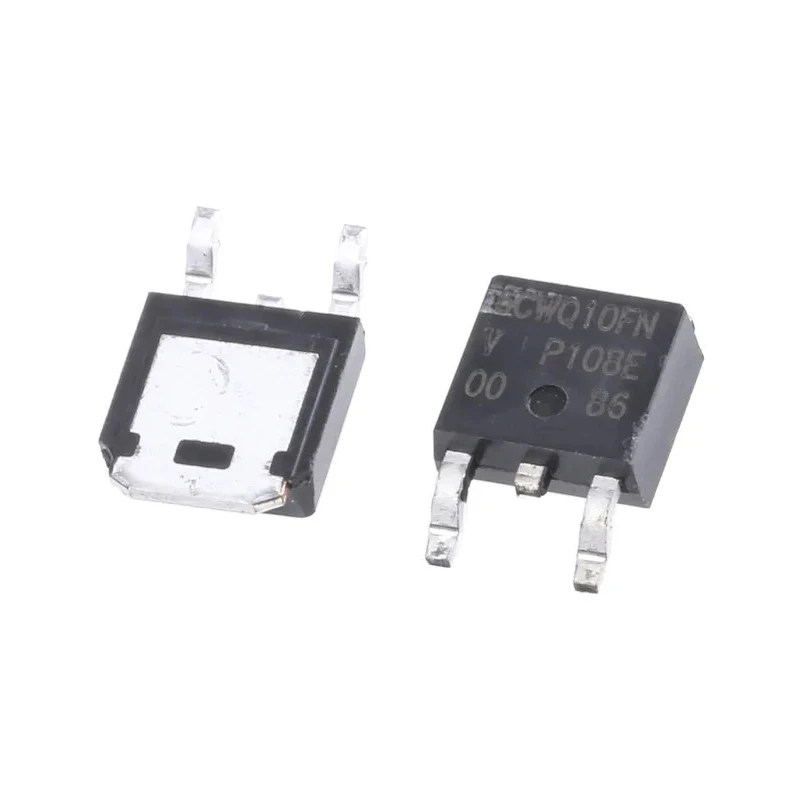

Vishay 100 V 7 A Surface Mount Schottky Diode 3-Pin DPAK VS-6CWQ10FN-M3

Vishay VS-6CWQ10FN-M3 is a robust and high-performance Schottky diode widely used in industrial and electronic applications requiring fast switching and low power loss. This diode features a surface mount TO-252 package form factor with a 3-pin layout, enabling efficient assembly and space-saving PCB design.

With a maximum continuous forward current rating of 7 A and a peak reverse repetitive voltage of 100 V, the diode is suitable for medium power rectification and protection duties. Its very low forward voltage drop of 0.63 V contributes to reduced conduction losses, enhancing overall energy efficiency.

The device withstands a peak non-repetitive forward surge current of up to 440 A, providing resilience against transient overloads. It operates reliably in a wide temperature span from -40°C to 150°C, making it adaptable to demanding industrial environments.

Compact physical dimensions (6.73 mm length, 6.22 mm width, and 2.39 mm height) optimize circuit board space, and the common cathode diode configuration with 3 pins is compatible with a wide variety of circuit topologies.

Although it lacks automotive certification, this Schottky diode is ideal for power supply, switching, and voltage clamping applications in industrial, electrical, and commercial electronics.

Surface mount type with TO-252 package for reliable, compact installations. Maximum continuous forward current of 7 amperes for robust power handling. Rated peak reverse repetitive voltage of 100 volts for high voltage tolerance.

Low maximum forward voltage of 0.63 volts ensures efficient operation with minimal loss. Wide operating temperature range from -40°C to 150°C for harsh environment suitability. Peak non-repetitive forward surge current capacity of 440 amperes for transient robustness.

Compact dimensions: length 6.73 mm, width 6.22 mm, and height 2.39 mm allow dense PCB layout. Diode configured with common cathode and 3 pins for standard circuit integration. No special automotive standards or approvals, designed primarily for industrial and electronic applications.

This Vishay Schottky diode model VS-6CWQ10FN-M3 offers an excellent choice for engineers developing power electronics devices, rectifier circuits, and other applications needing low-loss, fast switching diodes.
