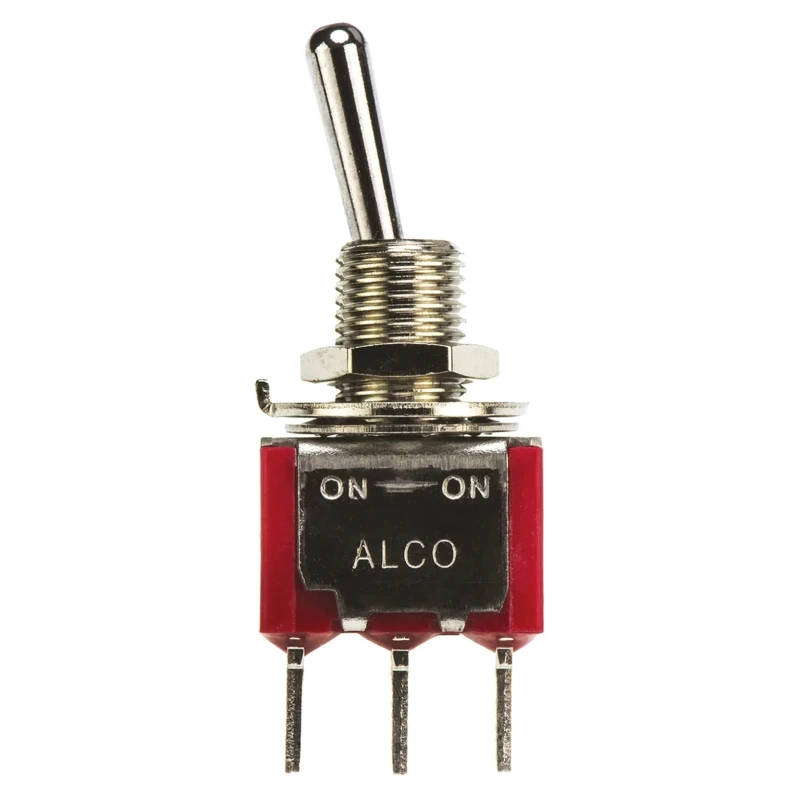

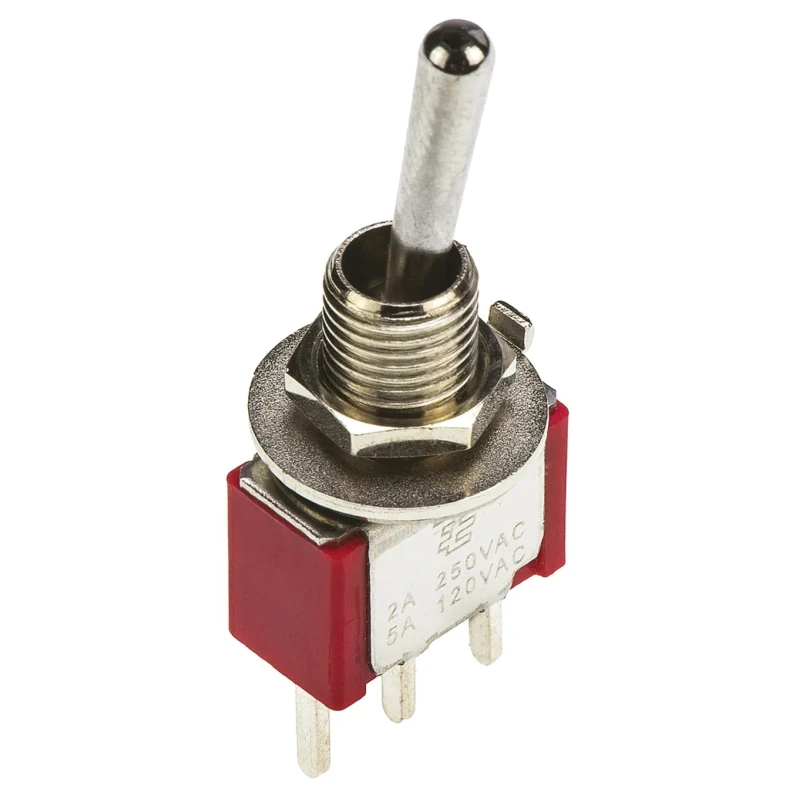

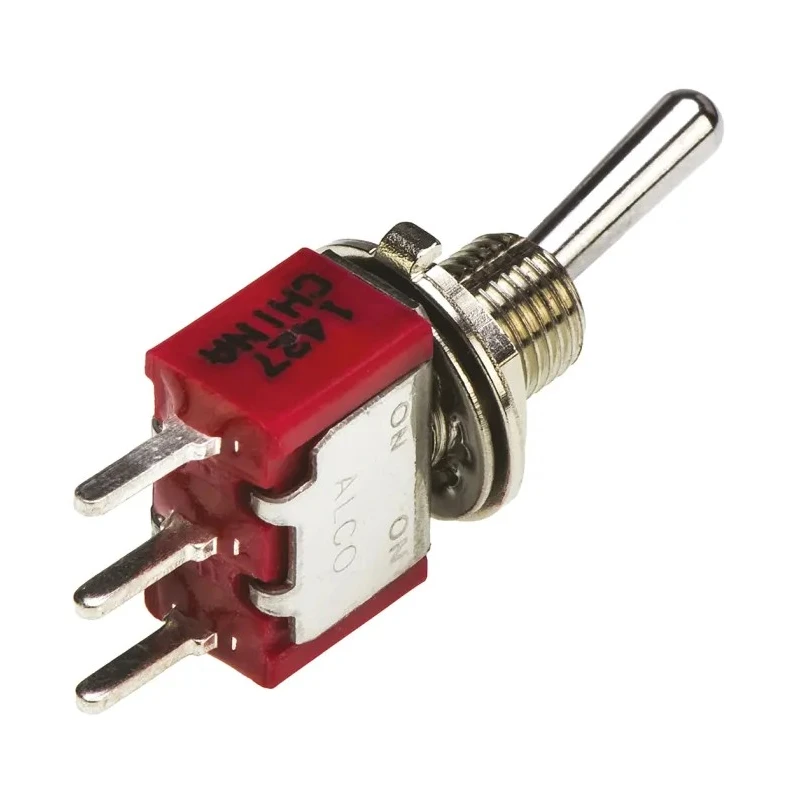

TE Connectivity Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 28 V dc 115 V ac 4-1825136-5

TE Connectivity 4-1825136-5 toggle switch is a high-quality PCB mount On-On Single Pole Double Throw (SPDT) switch rated for 28 V dc and 115 V ac electrical systems. It is designed to provide reliable switching with a contact current capacity of 5A, ideal for industrial, electrical, automation, and manufacturing use cases.

This switch features through-hole terminal mounting ensuring strong mechanical attachment to printed circuit boards. Its epoxy-sealed terminals and robust stainless steel frame with brass tin plated solder supports enhance durability and resistance to environmental factors.

The actuator is constructed from phenolic material with a length of 10.41 mm, providing mechanical stability and smooth operation. Its compact dimensions, with a length of 0.5 inches, height of 0.35 inches, and width of 0.27 inches, make it suitable for space-constrained PCB designs.

Rated IP67 for protection against dust and water immersion, this toggle switch is suitable for challenging environments and meets RoHS compliance standards for environmental safety.

Operating temperature ranges from -30°C to 85°C, allowing the switch to perform reliably in harsh temperature conditions found in industrial and commercial equipment. This toggle switch features a Single Pole Double Throw (SPDT) contact configuration for versatile electrical control.

It has a switch contact current rating of 5A suitable for moderate current applications. The mount type is PCB with through-hole terminals for secure and durable placement. It is rated IP67 for protection against dust and immersion, enhancing reliability.

The actuator is made of phenolic material with a length of 10.41 mm ensuring robust operation. The panel cutout size is 6.35 mm compatible with standard mounting requirements. Operating temperature range is from -30°C to 85°C allowing usage in varied environments.

The switch is epoxy sealed and uses stainless steel and brass tin plated contacts for corrosion resistance. It complies with RoHS standards ensuring environmental safety. The compact size (0.5in length, 0.35in height, 0.27in width) suits small form factor electronic designs.

Ideal for electrical engineers, OEMs, and automation solution providers, this Toggle Switch is an essential component for robust control circuit designs. Browse more TE Connectivity components and switches on EnvMart for reliable industrial-grade electronic parts.
