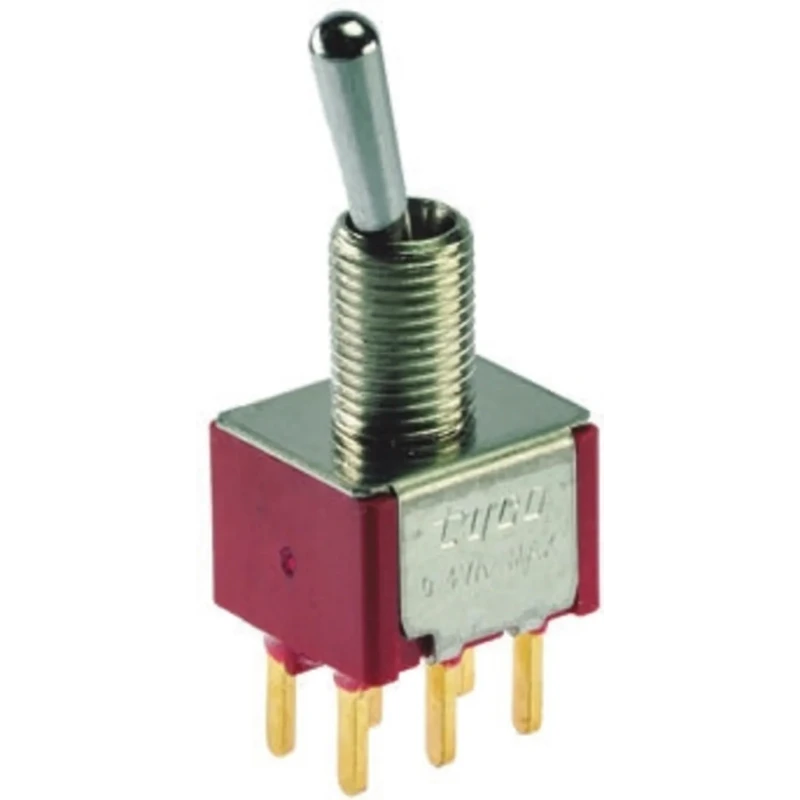

TE Connectivity Toggle Switch PCB Mount On-On DPDT Through Hole Terminal 28 V dc 20 V ac 3-1825138-6
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Length | 0.50in |
| IP Rating | IP67 |
| Width | 0.45in |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-(On) |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Mechanical Life | 6000Cycles |
| Contact AC Voltage | 20V ac |
| Actuator Material | Phenolic |
Key Features
- Features IP67 rating for protection against dust and water ingress.
- Constructed with a stainless steel frame and epoxy sealed terminals.
- Phenolic actuator material ensures durability and stability.
- Mechanical life of 6000 cycles for reliable switching performance.
- Compact panel cutout size of 6.35 mm and actuator length of 10.41 mm.
- Operating temperature range from -30°C to 85°C to fit diverse environments.
- Designed for PCB mounting with through hole terminal type for secure installation.
- Switch configuration is On-(On), providing break before make timing.
Product Description
TE Connectivity 3-1825138-6 toggle switch is a PCB mounted On-On DPDT (Double Pole Double Throw) switch designed for electrical and electronic control applications. It operates with a contact DC voltage of 28 V and contact AC voltage of 20 V, providing versatility for low voltage switching tasks.
The switch features a robust stainless steel frame combined with brass tin plated solder support enhancing mechanical reliability. Its epoxy sealed terminals provide excellent protection against environmental contamination, complemented by an IP67 rating which ensures dust tight and water immersion resistance making it ideal for harsh industrial environments.
The actuator is made from phenolic material contributing to its durability and has a length of 10.41 mm to enable easy manual operation. With a compact panel cutout size of 6.35 mm and overall length of 0.50 inch and width of 0.45 inch, this toggle switch fits standard PCB layouts efficiently.
Rated mechanical life reaches up to 6000 cycles, offering dependable long-term functionality. The operating temperature range from -30°C to 85°C allows use across a broad range of climate conditions, suitable for industrial automation, instrumentation, electronic control panels, and general use in automation and electrical equipment.
Its On-(On) switch configuration ensures a break before make contact timing, which avoids current overlap preventing potential circuit damage. Complying with RoHS standards confirms its manufacturing meets environmental and safety guidelines.
IP67 rated for resistant performance against dust and water. Epoxy sealed terminals enhance durability and reliability. Phenolic actuator material for long-lasting switch operation. 6000 mechanical life cycles ensure long-term use.
Compact size with 6.35 mm panel cutout for PCB mounting. Wide temperature operation from -30°C to 85°C for diverse environments. Stainless steel frame with brass tin plated solder support. On-(On) DPDT switch operation for precise electrical control.
Suitable for electronic, industrial, and automation applications. RoHS compliant for environmental safety. Explore a wide range of Toggle Switches and electrical components on EnvMart for various industrial and electronics applications.
