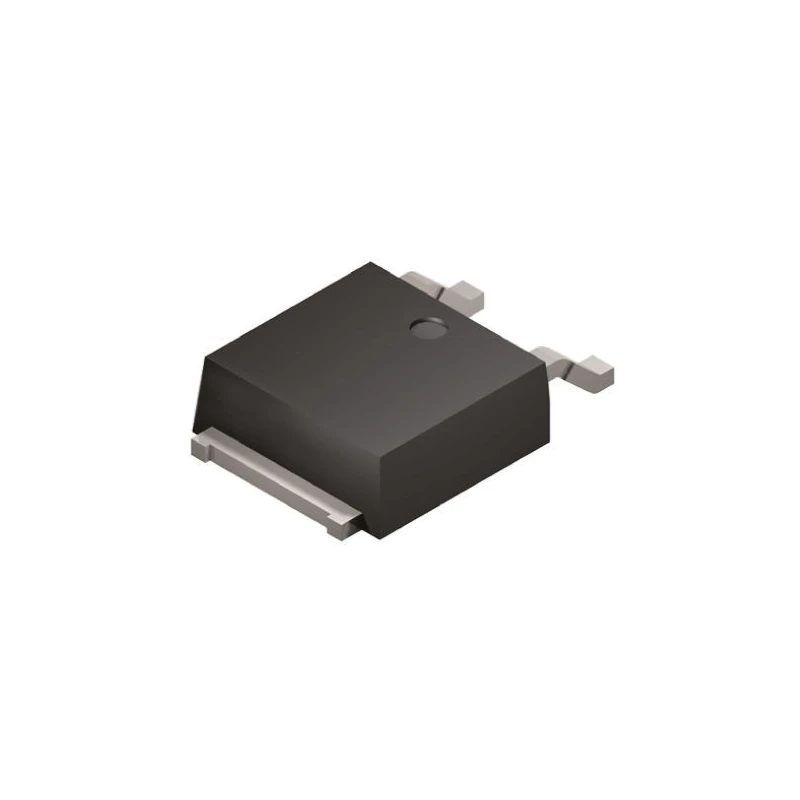

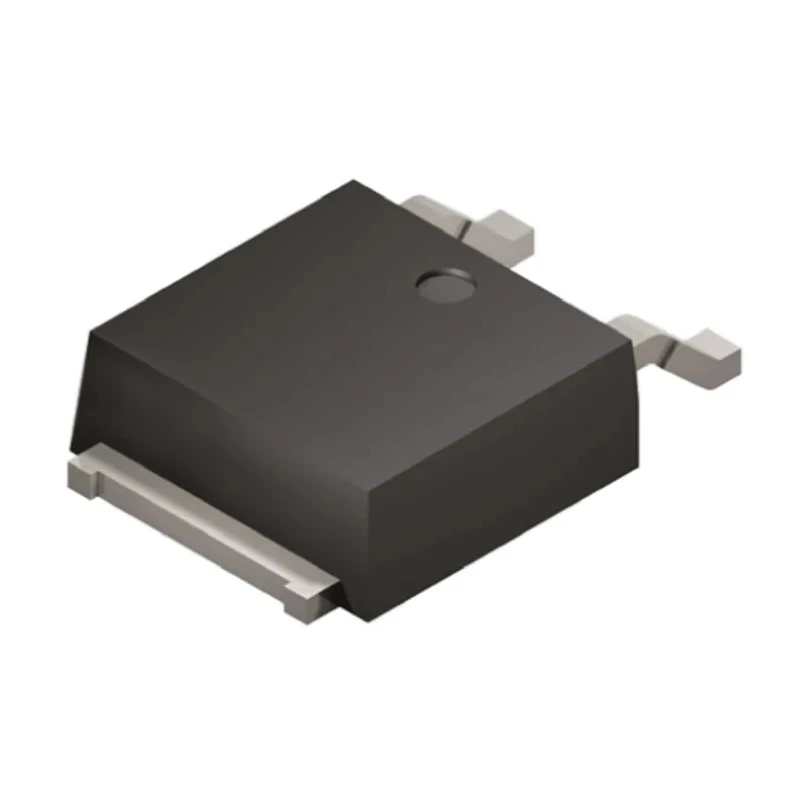

Vishay High-Performance 40 V 12 A Schottky Diode 3-Pin DPAK VS-12CWQ04FNPBF

Vishay VS-12CWQ04FNPBF is a high-performance Schottky diode designed for fast switching and low forward voltage drop. This diode features a surface mount TO-252 package type with a common cathode diode configuration, providing reliability and efficiency in electronic applications.

The device supports a maximum continuous forward current of 12 amperes and can withstand a peak reverse repetitive voltage of 40 volts, making it suitable for power rectification, voltage clamping, and protection circuits.

With a low maximum forward voltage of 0.68 volts, it minimizes power loss during conduction. The diode operates across a wide temperature range from -55°C up to 150°C, ensuring stable performance under harsh conditions.

The VS-12CWQ04FNPBF's quick switching action with minimal reverse recovery time is ideal for high-frequency switching power supplies and voltage regulator modules. It can handle peak non-repetitive forward surge currents up to 550 amperes, making it robust against transient surges commonly encountered in power electronics.

The product’s compact footprint with dimensions of approximately 6.73 mm length, 6.22 mm width, and 2.39 mm height enables integration into space-constrained designs. It is commonly used in industrial, consumer electronics, automotive (non-automotive compliant model), and telecommunications applications requiring efficient power management.

Features a surface mount TO-252 package for easy PCB integration. Maximum continuous forward current of 12 amperes for efficient conduction. Peak reverse repetitive voltage is rated at 40 volts to ensure reliable blocking capability.

The diode has a low maximum forward voltage drop of 0.68 volts to minimize power dissipation. Operates reliably between -55°C minimum and 150°C maximum temperature range. Quick switching action with extremely fast reverse recovery times suitable for high-frequency applications.

Contains 3 pins configured with a common cathode design. Can handle a peak non-repetitive forward surge current of 550 amperes for transient surges. Compact dimensions with a height of 2.39 mm, width of 6.22 mm, and length of 6.73 mm.

Widely applicable in power electronics, consumer electronics, and industrial circuits.

This Vishay Schottky diode is manufactured to meet stringent quality standards and is suitable for use in a broad array of electronic semiconductor applications that require low forward voltage and rapid switching.
