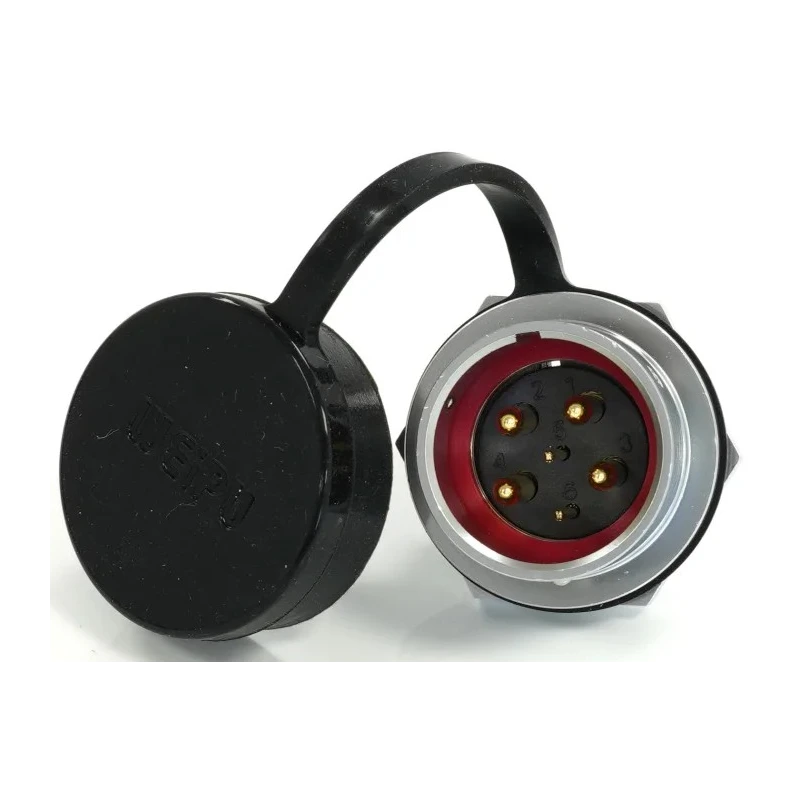

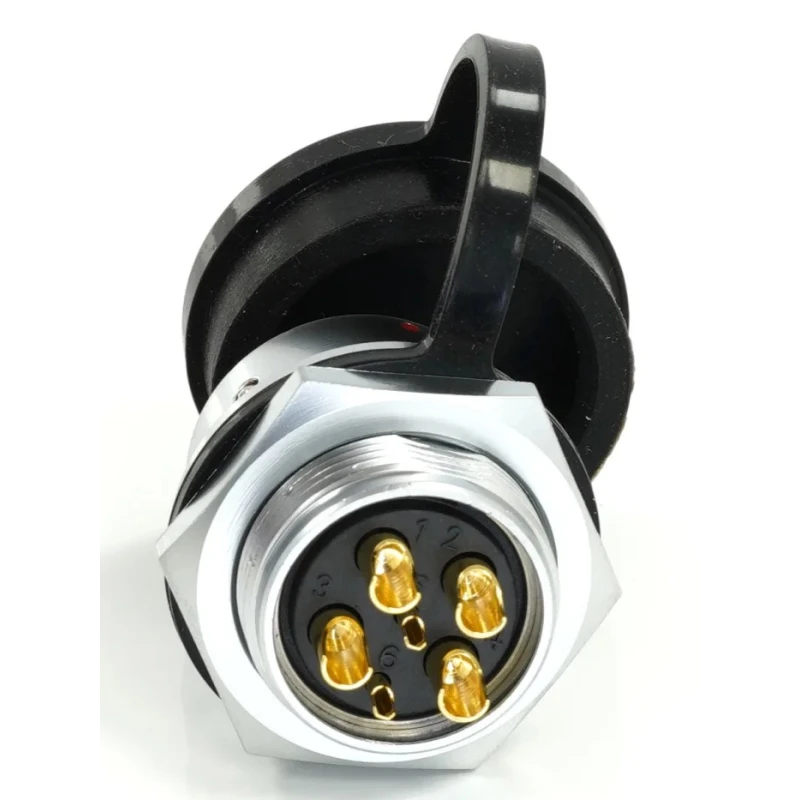

RS PRO Circular Connector 6 Contacts Front Mount M20 Socket Male IP67 500V Push Pull 233-8197
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 25, 5A |
| Model | 233-8197 |
| IP Rating | IP67 |
| Mount Type | Front |
| Housing Material | Chrome Plated Brass |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | CE, RoHS |
| Pole Format | 6 |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Mating Type | Push Pull |
| Connector Size | M20 |
| Plug/Socket | Socket |
Key Features
- This circular connector features a push-pull mating system for quick and secure connection.
- The socket has 6 gold-plated brass contacts ensuring excellent conductivity and corrosion resistance.
- Chromium plated brass housing offers durability and resistance to corrosion and impact.
- Rated for an operating current of 25.5A and voltages up to 500V for versatile power transmission.
- IP67 rating confirms its suitability for harsh environments with protection against dust and water ingress.
- Operating temperature range from -40°C to 85°C enables use in extreme temperature conditions.
- Designed for front mount installation with straight orientation, ideal for industrial automation setups.
- Termination is done by soldering for reliable and durable electrical connection.
Product Description
RS PRO 233-8197 is a versatile industrial circular connector designed for front panel mounting in demanding environments. It is equipped with 6 male contacts in a socket configuration to provide reliable electrical connections in automation, robotics, and industrial machinery.
This connector utilizes a push-pull latching interface allowing for fast and secure mating with compatible plugs. Its M20 size and straight orientation make it suitable for a range of industrial applications including process control and instrumentation.
Constructed with a chrome-plated brass housing, this connector combines robustness with corrosion and impact resistance. The gold-plated brass contacts maintain excellent conductive properties and long-term durability under industrial conditions.
The connector supports a maximum operating current of 25.5A and a voltage rating of 500V, meeting typical power and signal transmission needs. It is IP67 rated, guaranteeing full protection against dust ingress and water immersion for secure use in outdoor or harsh factory settings.
Operating temperatures from -40°C to 85°C provide flexibility in varied climatic conditions. Solder termination ensures strong, stable wire connections essential for industrial reliability.
This product complies with CE and RoHS standards, assuring adherence to strict safety and environmental guidelines. It is ideal for use in industrial automation, assembly lines, sensor connections, and testing equipment.
Overall, the RS PRO 233-8197 circular connector offers a dependable, high-quality solution for industrial power and signal connectivity requirements. This circular connector features a push-pull mating system for quick and secure connection.
The socket has 6 gold-plated brass contacts ensuring excellent conductivity and corrosion resistance. Chromium plated brass housing offers durability and resistance to corrosion and impact. Rated for an operating current of 25.5A and voltages up to 500V for versatile power transmission.
IP67 rating confirms its suitability for harsh environments with protection against dust and water ingress. Operating temperature range from -40°C to 85°C enables use in extreme temperature conditions. Designed for front mount installation with straight orientation, ideal for industrial automation setups.
Termination is done by soldering for reliable and durable electrical connection. Certified to CE and RoHS standards ensuring safety and environmental compliance. Discover more about circular connectors and related products in the Industrial Circular Connectors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating current for this model is 25.5A, making it suitable for various power transmission applications.
It supports a voltage rating of up to 500V, which is typical for industrial power applications.
This connector has an IP67 rating, providing full protection against dust ingress and immersion in water, suitable for harsh environments.
The operating temperature range is from -40°C to 85°C, allowing for use in extreme climatic conditions.
This model features 6 male contacts, which are gold-plated for excellent conductivity and corrosion resistance.
The termination type is solder, ensuring a reliable and durable electrical connection.
The housing is made of chrome-plated brass, while the contacts are made of brass with gold plating for enhanced conductivity.
It is designed for front mount installation with a straight orientation, suitable for various industrial applications.
This connector complies with CE and RoHS standards, ensuring adherence to safety and environmental guidelines.
It utilizes a push-pull mating system, allowing for quick and secure connections with compatible plugs.
This model is ideal for use in industrial automation, robotics, sensor connections, and testing equipment.
The connector size is M20, making it compatible with various industrial setups and equipment.
