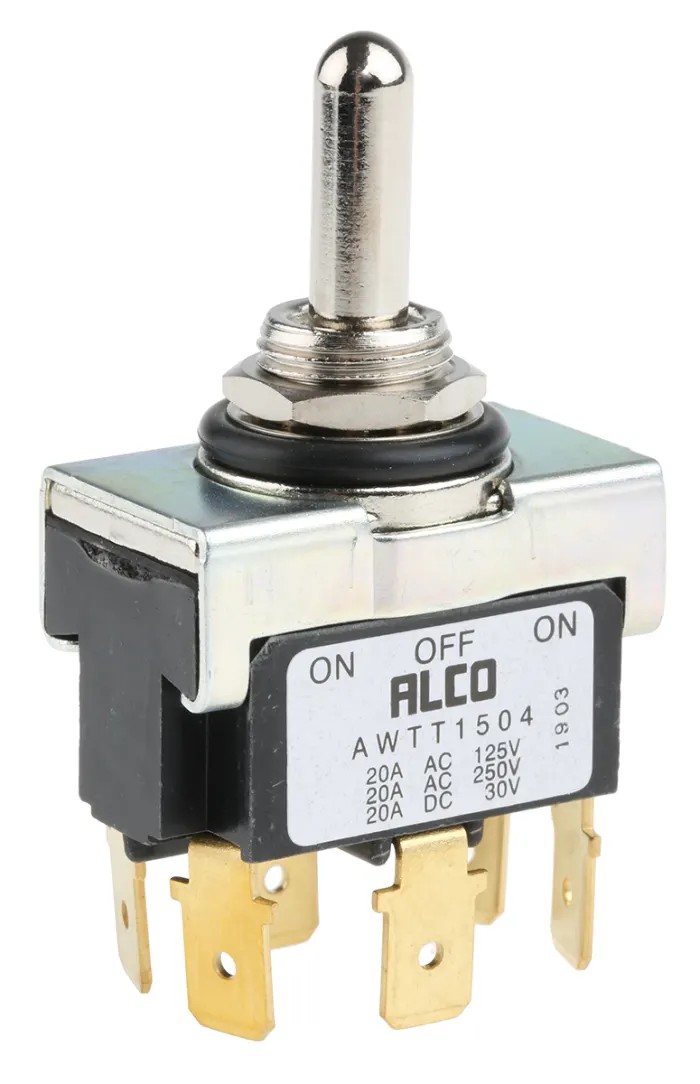

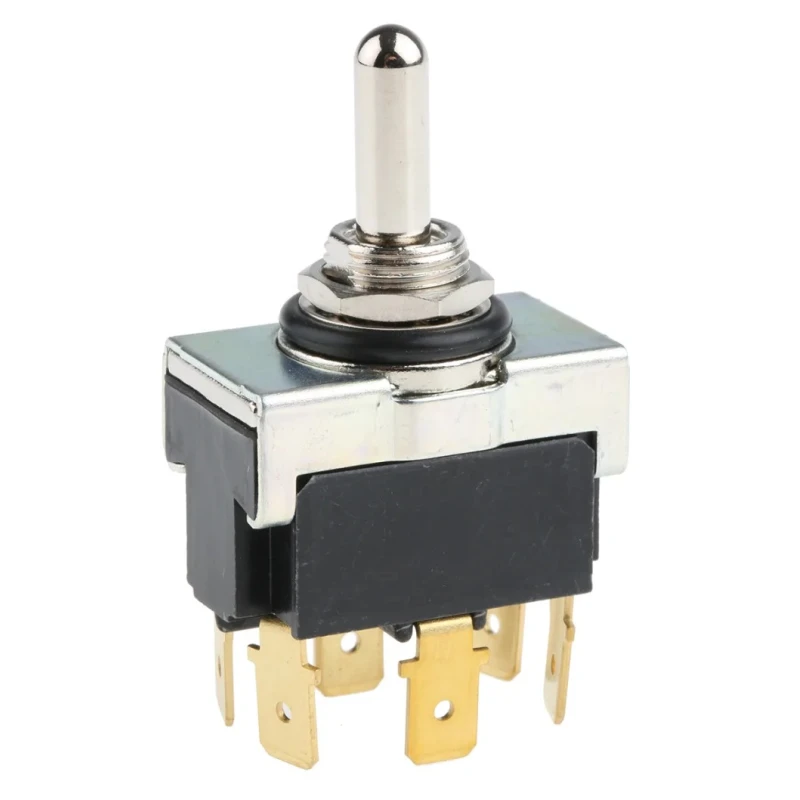

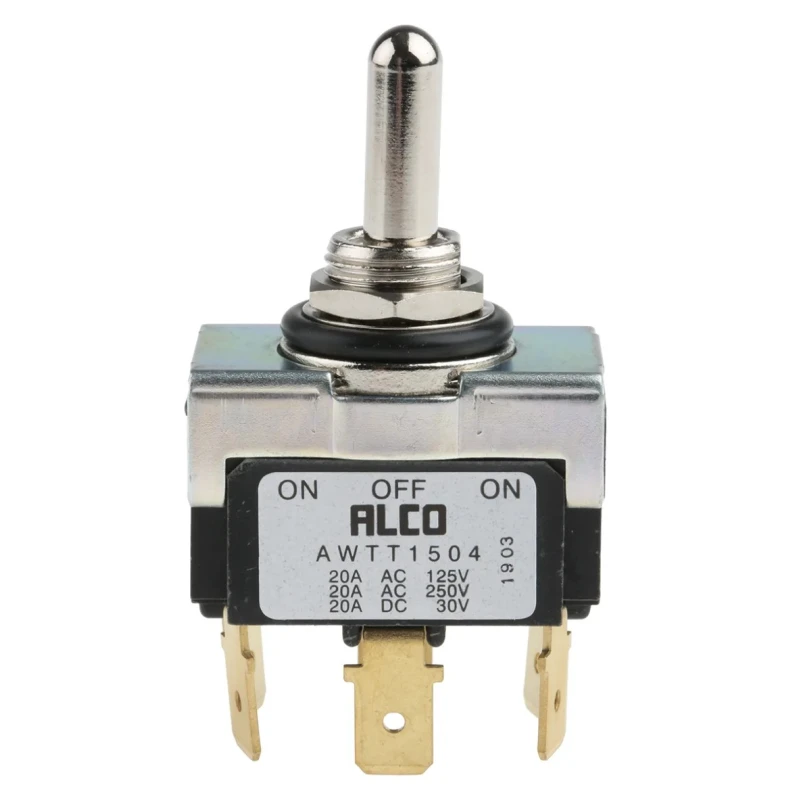

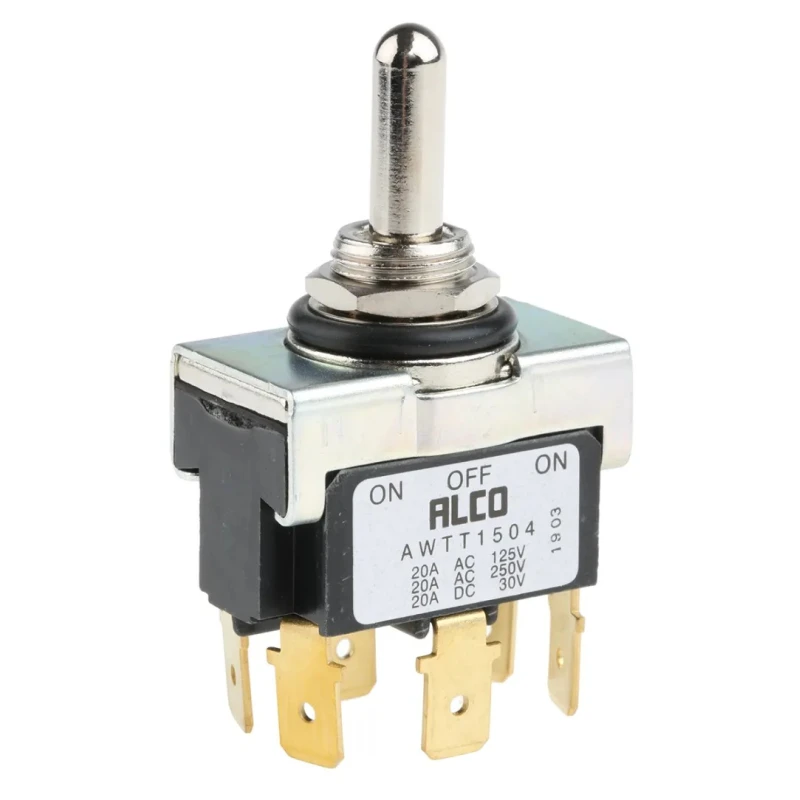

TE Connectivity Toggle Switch Panel Mount On-Off-On DPDT Tab Terminal 30 V DC IP67 Brass Actuator AWTT1504
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Length | 17.48mm |
| Model | AWTT1504 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | AWT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Terminal type | Tab |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 17.5mm |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 20A |
| Mechanical Life | 40000Cycles |
| Actuator Material | Brass |
Key Features
- Panel mount toggle switch designed for On-Off-On operations.
- Double Pole Double Throw (DPDT) contact configuration for versatile circuit control.
- Tab terminal design enables easy and secure electrical connections.
- Rated for 30 V DC maximum contact voltage and 20 A current.
- IP67 ingress protection for waterproof and dustproof applications.
- Brass actuator with 17.5 mm length ensures durable operation.
- Operates reliably from -20°C to 70°C temperature range.
- Mechanical life rated for 40,000 cycles.
Product Description
TE Connectivity AWTT1504 is a high-quality panel mount toggle switch engineered for consistent performance in electrical and automation systems. Featuring a robust Double Pole Double Throw (DPDT) contact configuration, this switch supports On-Off-On operation, allowing users to control two independent circuits simultaneously. The switch integrates tab terminals to facilitate straightforward and secure connection to electrical wiring and components.
Rated for up to 30 V DC and capable of handling 20 A current, the AWTT1504 is suitable for demanding industrial environments, including machinery, control panels, instrumentation, and equipment requiring waterproof and dustproof switching. With IP67 certification, it performs reliably in outdoor installations or situations exposed to dust and liquid ingress. The actuator is fabricated from brass material, offering durability and precise tactile feedback. The actuator length is 17.5 mm and the switch body is constructed from glass-filled polyester.
This model operates flexibly within a temperature range of -20°C to 70°C. The mechanical life is specified for 40,000 cycles, ensuring long-term usability and reduced maintenance needs. Biased operation (momentary On position) is supported, offering user-defined switching for specialized applications. Connection is possible either via 250 in. (1/4 in.) receptacles or soldering, adaptable to panel wiring requirements.
TE Connectivity's AWTT1504 Toggle Switch is utilized in industrial control panels, HVAC systems, automation, instrumentation racks, and other demanding environments requiring robust and waterproofing characteristics. Its DPDT contacts allow for complex switching configurations, making it the switch of choice for engineers and technicians in manufacturing, construction, and commercial installations.
Panel mount toggle switch with On-Off-On operation, DPDT contact configuration. Tab terminal design for easy wiring. Rated up to 30 V DC and 20 A contact current. IP67 waterproof and dustproof protection for harsh environments.
Brass actuator and glass-filled polyester case for durability. Reliably operates from -20°C to 70°C, ideal for various industrial applications. Mechanical life of 40,000 cycles ensures long-term longevity. Suitable for industrial, automation, construction, and commercial panel integration.
Explore more TE Connectivity Toggle Switches and panel mount solutions in the EnvMart Switches & Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact voltage for this toggle switch is 30 V DC.
This model can handle a maximum contact current of 20 A.
It features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile circuit control.
The toggle switch has an IP67 rating, making it waterproof and dustproof for harsh environments.
It operates reliably within a temperature range of -20°C to 70°C.
The mechanical life of this switch is rated for 40,000 cycles, ensuring long-term usability.
It features tab terminals, which allow for easy and secure electrical connections.
The actuator is made of brass, while the switch body is constructed from glass-filled polyester.
This toggle switch is designed for panel mounting.
It is suitable for use in industrial control panels, HVAC systems, automation, and instrumentation racks.
The switch complies with RoHS standards.
Yes, it supports biased operation, allowing for momentary On position for specialized applications.
