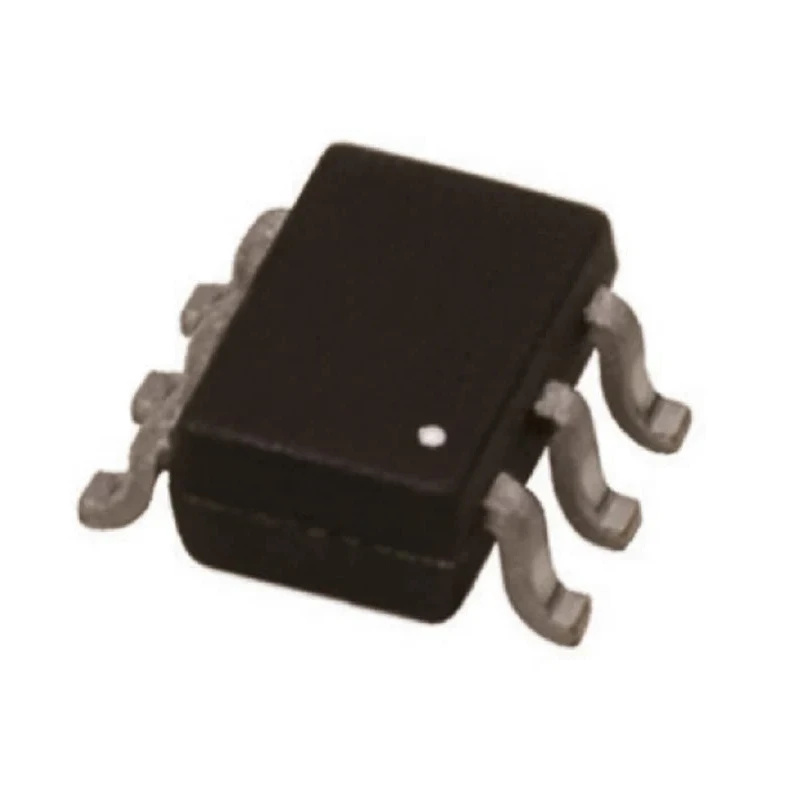

Infineon HEXFET N-Channel MOSFET 600 mA 200 V Enhancement Mode, 6-Pin TSOP IRF5801TRPBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 900μm |
| Length | 3mm |
| Model | IRF5801TRPBF |
| Width | 1.5mm |
| Mount Type | Surface |
| Series | HEXFET |
| Maximum Operating Temperature | 150°C |
| Package Type | TSOP |
| Minimum Operating Temperature | -55°C |
| Pin Count | 6 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 600mA |
| Maximum Drain Source Voltage Vds | 200V |
| Maximum Drain Source Resistance Rds | 2.2Ω |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 2W |
| Typical Gate Charge Qg @ Vgs | 3.9nC |
| Maximum Gate Source Voltage Vgs | -30, +30V |
| Forward Voltage Vf | 1.3V |
| N-channel MOSFET,IRF5801TR 0.60A 200VBrand | International Rectifier |
Key Features
- Rated for a maximum continuous drain current of 600 mA.
- Maximum drain-source voltage of 200 V for robust power handling.
- Low drain-source resistance of 2.2 Ohms reduces conduction losses.
- Package type is 6-pin TSOP designed for surface mount technology.
- Typical gate charge of 3.9 nC at gate-source voltage enhances switching efficiency.
- Wide operating temperature range from -55°C to 150°C ensures durability.
- Maximum power dissipation rated at 2 Watts to handle thermal loads.
- Forward voltage drop typically 1.3 V for low voltage drop applications.
Product Description
Infineon IRF5801TRPBF is a HEXFET N-Channel MOSFET designed for power electronic applications requiring efficient switching at currents up to 600 mA and voltages up to 200 V. Housed in a compact 6-pin TSOP surface mount package, this enhancement-mode MOSFET offers low on-resistance of 2.2 Ohms helping to reduce conduction losses and improve overall system efficiency.
The device operates reliably across a wide temperature range from -55°C to 150°C, with maximum power dissipation of 2 Watts, making it suitable for industrial, automotive, and consumer electronics applications. Its typical gate charge of 3.9 nC at Vgs and a maximum gate voltage rating of ±30 V provide enhanced switching performance and protection.
This MOSFET is ideal for use in DC - DC converters, motor drives, switching power supplies, and other low-power switching circuits. The 6-pin TSOP package ensures ease of installation on surface mount PCBs while maintaining good thermal performance.
Maximum continuous drain current of 600 mA offers moderate power capability. Drain-source voltage rating of 200 V supports a range of power applications. Low Rds(on) of 2.2 Ohms minimizes power losses. Compact 6-pin TSOP surface mount package suits automated assembly processes.
Wide operating temperature from -55°C to 150°C supports harsh environments. Power dissipation of 2 W enables stable operation under load. Gate charge and voltage limits protect gate control and switching speed.
Infineon’s HEXFET technology enables optimal power efficiency and reliability in a compact footprint. This device complies with RoHS standards and is suitable for industrial, automotive, consumer electronics, and instrumentation uses.
Browse more semiconductor and MOSFET products from Infineon and explore efficient power management components on EnvMart.
Explore more products in our Power MOSFET category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for the Infineon HEXFET N-Channel MOSFET is 600 mA.
This model has a maximum drain-source voltage rating of 200 V.
The low drain-source resistance (Rds(on)) of this MOSFET is 2.2 Ohms, which helps reduce conduction losses.
The typical gate charge at gate-source voltage (Vgs) is 3.9 nC, enhancing switching efficiency.
It is housed in a compact 6-pin TSOP package designed for surface mount technology.
The operating temperature range for this MOSFET is from -55°C to 150°C.
The maximum power dissipation is rated at 2 Watts, allowing it to handle thermal loads effectively.
This model is suitable for applications such as DC-DC converters, motor drives, and switching power supplies.
The dimensions of this model are 3 mm in length, 1.5 mm in width, and 900 μm in height.
The forward voltage drop is typically 1.3 V, making it suitable for low voltage drop applications.
The maximum gate-source voltage rating for this device is ±30 V.
The country of origin for this MOSFET is India.
