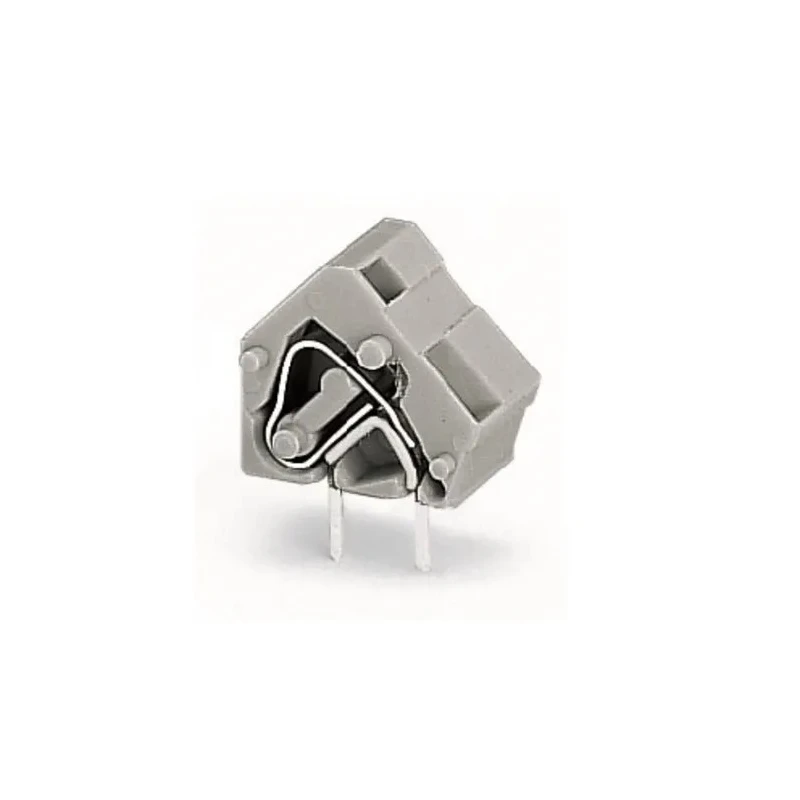

WAGO PCB Terminal Block, 1 Contact, 10.16 mm Pitch, 1 Row, Polyamide 66, 300V, 15A, Female, Straight Orientation 236-766
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 300V |
| Brand | WAGO |
| Colour | White |
| Orientation | Straight |
| Current | 15A |
| Length | 17mm |
| Model | 236-766 |
| Depth | 14mm |
| Width | 12.2mm |
| Housing Material | Polyamide 66 |
| Number of Rows | 1 |
| Pitch | 10.16mm |
| Standards/Approvals | UL, CSA |
| Number of Contacts | 1 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 12AWG |
| Wire Connection Method | Push-in |
Key Features
- This terminal block offers fast push-in wire connection for efficient PCB integration.
- Designed with a single contact and 10.16 mm pitch to ensure space-saving layouts.
- Supports up to 15A current, suitable for demanding electronic applications.
- Polyamide 66 housing provides excellent mechanical and electrical insulation.
- Accommodates wire sizes from 0.08 mm² to 2.5 mm², or AWG 28 - 12.
- Straight orientation and female connector gender simplify mounting and wiring.
- Rated for up to 300V, compatible with industrial and laboratory environments.
- UL and CSA approved for compliance and international use.
Product Description
WAGO 236-766 PCB Terminal Block is an industrial-grade connector solution for electronic and electrical applications, offering robust performance and compact design. Featuring a single contact and 10.16 mm pitch, the terminal block is optimized for PCB layouts where space and reliability are priorities. Polyamide 66 housing material delivers excellent insulation and durability, making it suitable for use in circuit assemblies, instrumentation, and control panels.
Push-in wire connection mechanism enables quick and secure terminations, reducing installation time and ensuring reliable conductivity. Rated for a maximum current of 15A and up to 300V, the terminal block handles power and signal circuits with ease.
Accommodates a wide range of wire sizes, from 0.08 mm² up to 2.5 mm² or AWG 28 to AWG 12, giving users flexibility for varied connection requirements. Straight orientation with female connector gender eases board placement and cable routing.
Compact dimensions: 17 mm length, 14 mm depth, and 12.2 mm width.
The advanced cage connection and screwdriver actuation ensure a secure fit and support factory wiring standards. The 45° conductor entry angle offers versatile installation, allowing for easy access and enhanced flexibility in wiring options. This terminal block meets UL and CSA standards for safety and performance, providing assurance of quality and compliance for industrial, laboratory, manufacturing, and commercial environments.
WAGO's terminal blocks are trusted worldwide for applications in circuit boards, panel wiring, and electrical assemblies. Commoning options and compatibility with operating tools make this model ideal for both automated and manual factory setups. The white color aids in circuit identification and easy visual placement.
Explore more PCB Terminal Blocks, connectors, and accessories from WAGO in the Electronics Components category on EnvMart for all your professional PCB and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block is rated for a maximum current of 15A, making it suitable for demanding electronic applications.
It is rated for a maximum voltage of 300V, allowing compatibility with various industrial and laboratory environments.
This terminal block can accommodate wire sizes from 0.08 mm² to 2.5 mm², or AWG 28 to AWG 12, providing flexibility for different connection requirements.
The terminal block features a pitch of 10.16 mm, designed to optimize space in PCB layouts.
The housing of this model is made from Polyamide 66, which provides excellent mechanical and electrical insulation.
It utilizes a push-in wire connection method, allowing for quick and secure terminations.
The dimensions of this terminal block are 17 mm in length, 14 mm in depth, and 12.2 mm in width.
This terminal block has a straight orientation, which simplifies mounting and wiring.
It is UL and CSA approved, ensuring compliance with safety and performance standards for industrial use.
The terminal block is manufactured in Switzerland, reflecting its quality and engineering standards.
This model features a single contact, making it suitable for applications requiring a compact design.
It is suitable for circuit assemblies, instrumentation, and control panels in various electronic and electrical applications.
